TRANSMISSION (E18)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

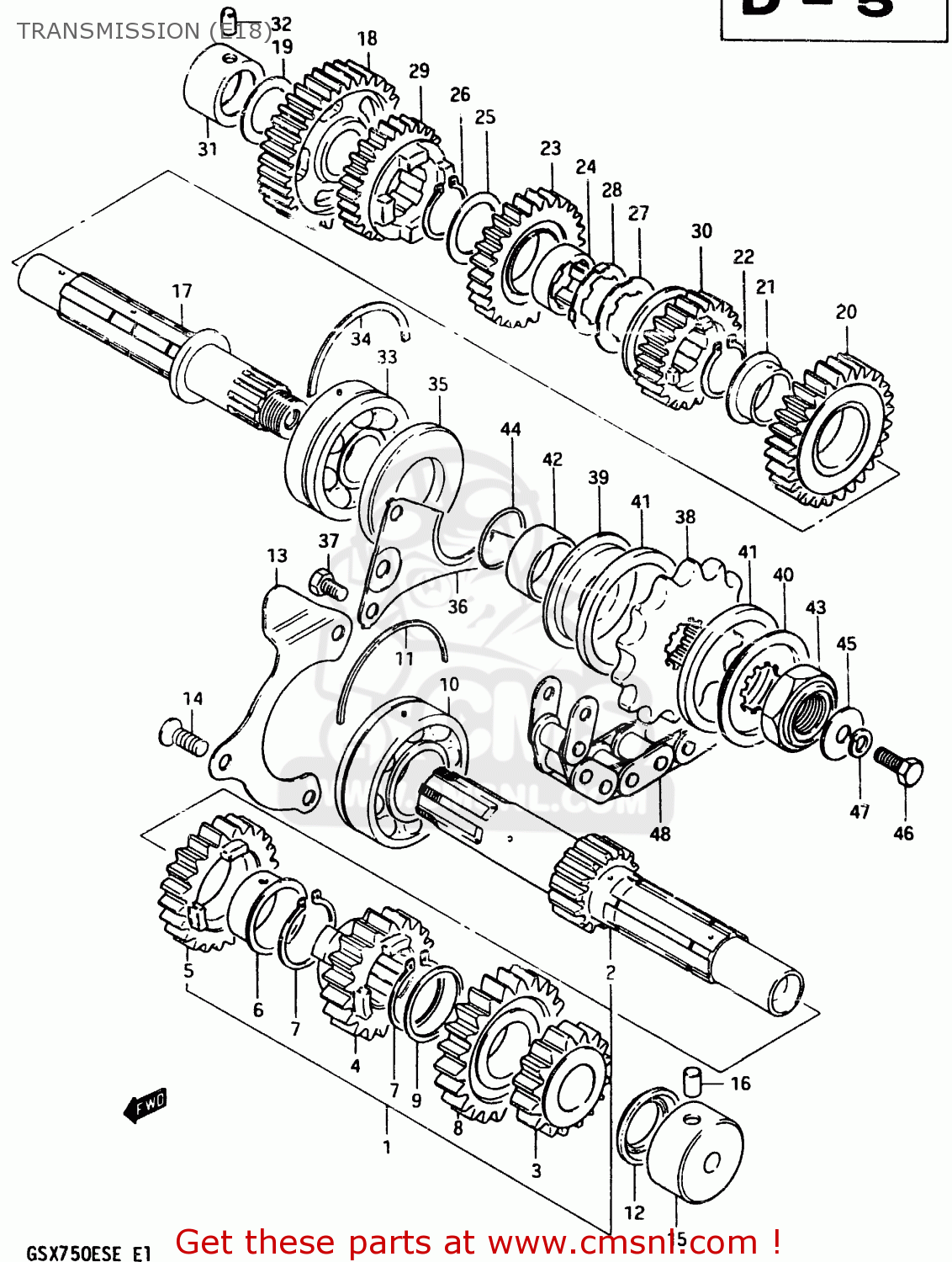

Transmission (e18) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

TRANSMISSION (E18) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
TRANSMISSION (E18) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
TRANSMISSION (E18) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
2412031300
ref: 1
SHAFT,COUNTER
€ 0.00
2
2412131300
ref: 2
SHAFT,COUNTER
2412131300
€ 145.00
3
2422131300
ref: 3
GEAR,SECOND DRIVE
€ 104.50
4
2423131302
ref: 4
GEAR,THIRD DRIVE
2423131302
€ 87.00
5
2424131300
ref: 5
GEAR,FOURTH DRIVE
2424131300
€ 82.50
6
0930129001
ref: 6
BUSH
€ 0.00
7
0938025003
ref: 7
RING,SNAP
0938025003
€ 3.00
8
2425131302
ref: 8
GEAR,FIFTH DRIVE (NT:23)
2425131302
€ 95.50
9
0916725012
ref: 9
WASHER,LOCK
0916725012
€ 3.50
10
0926225051
ref: 10
BEARING(25X62X17)
0926225051
€ 59.50
11
0939062006
ref: 11
C-RING
0939062006
€ 5.00
12
0926520006
ref: 12
BEARING(20X47X19.25)
€ 34.00
13
2474131300
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 7.00
14
0212206168
ref: 14
SCREW
0212206168
€ 2.00
15
0926320049
ref: 15
BEARING(20X34X17.5)
0926320049
€ 58.00
16
0422107129
ref: 16
~E.NO.116100
PIN
0422107129
€ 1.50
16
0422107209
ref: 16
E.NO.116101~
PIN
0422107209
€ 1.50
17
2413131310
ref: 17
SHAFT,DRIVE
€ 58.00
18
2431031300
ref: 18
GEAR,1ST DRIVEN(NT:35)
€ 94.50
19
0821120341
ref: 19
WASHER
0821120341
€ 2.00
20
2432131300
ref: 20
GEAR,2ND DRIVEN(NT:28)
2432131300
€ 78.00
21
0930128001
ref: 21
BUSH(28X32X2)
0930128001
€ 19.50
22
0833111289
ref: 22
CIRCLIP
€ 2.50
23
2433131300
ref: 23
GEAR,THIRD DRIVEN
€ 85.00
24
2433249000
ref: 24
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
25
0916728001
ref: 25
WASHER,LOCK
0916728001
€ 3.00
26
0833111289
ref: 26
CIRCLIP
€ 2.50
27
0916728002
ref: 27
WASHER,LOCK
0916728002
€ 3.00
28
0916928001
ref: 28
WASHER
0916928001
€ 3.00
29
2434131301
ref: 29
GEAR,FOURTH DRIVEN
€ 99.50
30
2435131301
ref: 30
GEAR,5TH DRIVEN(NT:22)
2435131301
€ 87.00
31
0926320040
ref: 31
BEARING(20X34X20)
0926320040
€ 42.50
32
0422107129
ref: 32
~E.NO.116100
PIN
0422107129
€ 1.50
32
0422107209
ref: 32
E.NO.116101~
PIN
0422107209
€ 1.50
33
0926225065
ref: 33
BALL BEARING 25X62X17
0926225065
€ 59.50
34
0939062006
ref: 34
C-RING
0939062006
€ 5.00
35
0928333002
ref: 35
SEAL,OIL(33X62X7)
0928333002
€ 14.00
36
2475131300
ref: 36
PLATE,DRIVESHAFT OIL
2475131300
€ 4.50
37
0110706108
ref: 37
BOLT
€ 2.00
38
2751147100
ref: 38
SPROCKET,ENGINE
€ 45.00
39
2751531301
ref: 39
HOLDER, SPROCKET, NO.1
2751531301
€ 13.50
40
2751631301
ref: 40
HOLDER,SPROCKET DAMPER
2751631301
€ 3.50
41
2751731300
ref: 41
DAMPER,SPROCKET
2751731300
€ 14.00
42
0918025069
ref: 42
SPACER
0918025069
€ 9.50
43
0915920001
ref: 43
NUT
0915920001
€ 12.00
44
0928025001
ref: 44
O RING(D:1,ID:24.5)
0928025001
€ 2.50
45
0821206222
ref: 45
WASHER
0821206222
€ 1.50
46
0110706168
ref: 46
BOLT, UPPER
€ 3.00
47
0832131068
ref: 47
LOCK WASHER
€ 2.50
48
2760031340
ref: 48
CHAIN ASSEMBLY,DRIVE
€ 243.00
