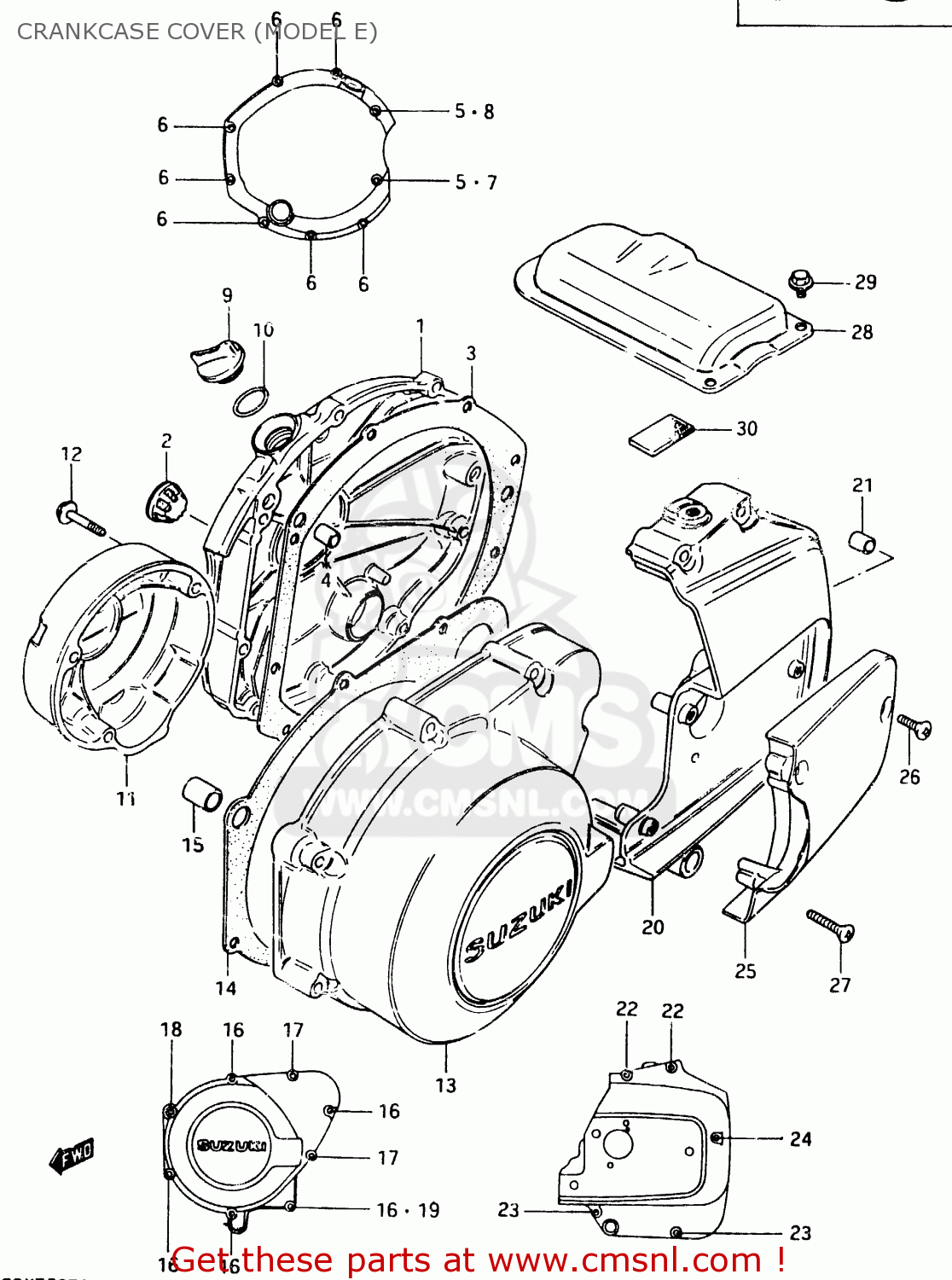

CRANKCASE COVER (MODEL E)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

Crankcase cover (model e) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CRANKCASE COVER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

CRANKCASE COVER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

1

1134031310
ref: 1

COVER, CLUTCH

€ 200.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148231301
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 14.00

4

0920209004
ref: 4

PIN

€ 2.50

5

0916806015
ref: 5

WASHER

€ 2.00

6

0154706254
ref: 6

BOLT 6X25

€ 2.50

7

0154706304
ref: 7

BOLT 6X30

€ 2.50

8

0154706354
ref: 8

BOLT 6X35

€ 3.00

9

0925920008
ref: 9

PLUG

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

1138131310
ref: 11

COVER,CONTACT BREAKER

€ 77.50

12

0154705304
ref: 12

BOLT 5X30

€ 2.50

13

1135131310
ref: 13

COVER,GENERATOR

€ 293.50

14

1148331301
ref: 14

GASKET,MAGNETO COVER (MCA)

€ 19.50

15

0920611005
ref: 15

PIN (11X20)(SUS)

€ 6.50

16

0154706354
ref: 16

BOLT 6X35

€ 3.00

17

0154706404
ref: 17

BOLT 6X40

€ 3.00

18

0154706454
ref: 18

BOLT

€ 3.00

19

0916806015
ref: 19

WASHER

€ 2.00

20

1136031310
ref: 20

COVER, ENGINE SPROCKET

€ 115.50

21

0421109129
ref: 21

PIN

€ 2.00

22

0154706404
ref: 22

BOLT 6X40

€ 3.00

23

0154706505
ref: 23

BOLT 6X50

€ 3.50

24

0154706705
ref: 24

BOLT (6X70)

€ 3.00

25

1138031310
ref: 25

CAP,CLUTCH REL

€ 62.50

26

0213205205
ref: 26

SCREW

€ 2.00

27

0213205305
ref: 27

SCREW 5X30

€ 1.50

28

1138231300
ref: 28

COVER,STARTER MOTOR

€ 21.00

29

0154705084
ref: 29

BOLT

€ 2.50

30

1136234200
ref: 30

DAMPER,STARTER MOTOR CLUTCH

€ 5.50
