FOOTREST

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

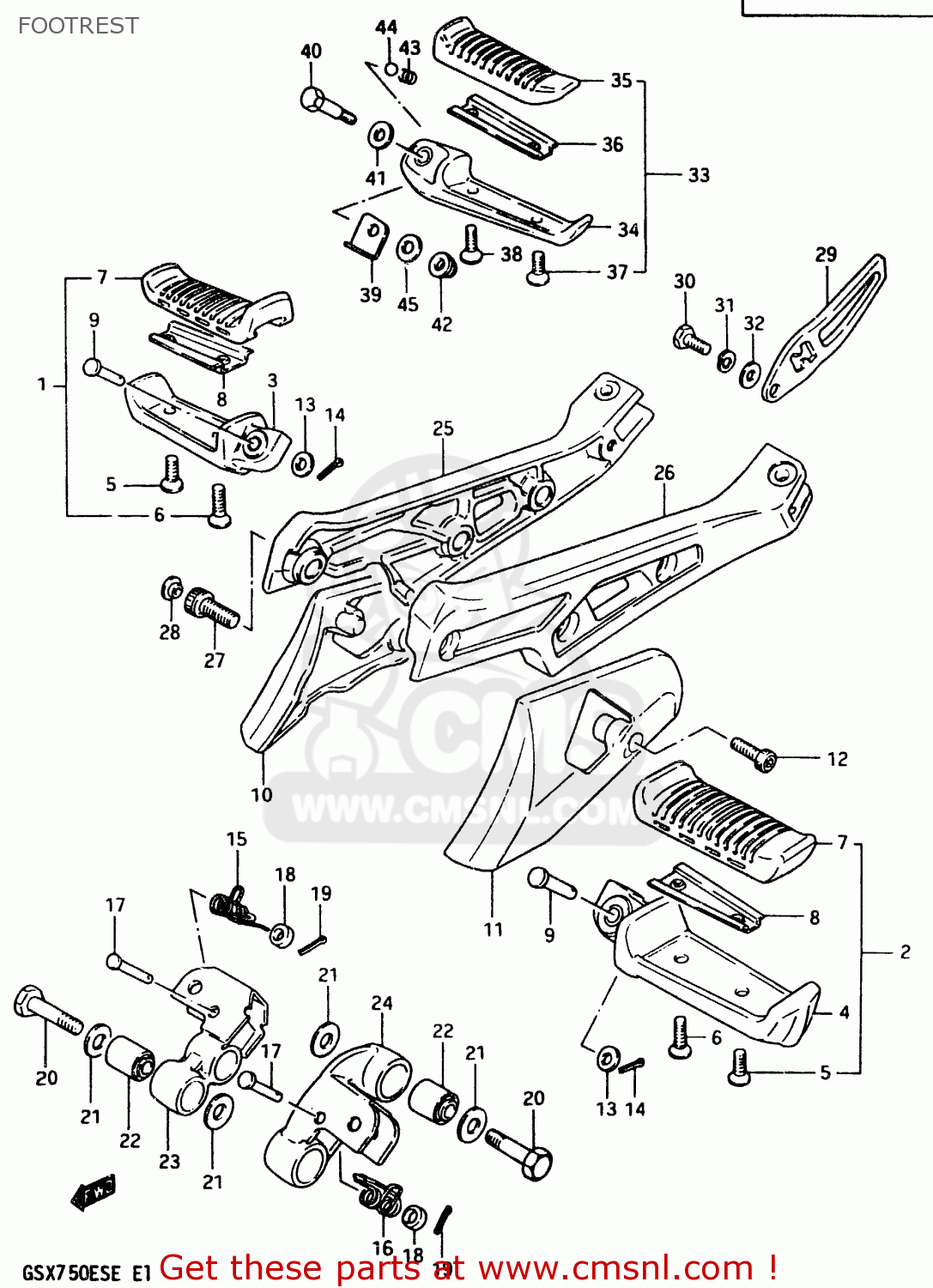

Footrest diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FOOTREST GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FOOTREST GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FOOTREST GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
4350131300
ref: 1
FOOTREST ASSEMBLY,FRONT,RIGHT
4350131300
€ 54.50
2
4350231300
ref: 2
FOOTREST ASSEMBLY,FRONT,LEFT
4350231300
€ 50.00
3
4351031300
ref: 3
BAR,FRONT FOOTREST,RIGHT
4351031300
€ 18.00
4
4352031300
ref: 4
BAR,FR FOOTREST,L
€ 48.00
5
0211205128
ref: 5
SCREW
€ 2.50
6
0211205168
ref: 6
SCREW
0211205168
€ 2.50
7
4355131300
ref: 7
RUBBER,FOOTREST
4355131300
€ 15.50
8
4358033301
ref: 8
PLATE,FR FOOTREST RUBBER
4358033301
€ 4.50
9
0920008034
ref: 9
PIN
0920008034
€ 2.00
10
4358531300
ref: 10
COVER,FRONT FOOTREST,RIGHT
€ 47.50
11
4359531300
ref: 11
COVER,FRONT FOOTREST,LEFT
4359531300
€ 33.50
12
0711006205
ref: 12
BOLT
€ 3.00
13
0832211085
ref: 13
WASHER,8.5X16X
€ 1.50
14
0411120208
ref: 14
PIN 20X20
0411120208
€ 1.50
15
0944812013
ref: 15
SPRING
0944812013
€ 6.00
16
0944812014
ref: 16
SPRING
0944812014
€ 4.50
17
0920006010
ref: 17
PIN
0920006010
€ 2.50
18
0918006074
ref: 18
SPACER (6.5X12X5.5)
0918006074
€ 2.50
19
0411120208
ref: 19
PIN 20X20
0411120208
€ 1.50
20
0910010191
ref: 20
BOLT 10X40
0910010191
€ 2.00
21
0916010005
ref: 21
WASHER(10.5X20X3.2)
0916010005
€ 2.00
22
0931910047
ref: 22
BUSH
0931910047
€ 8.00
23
4353031300
ref: 23
HOLDER,FRONT FOOTREST,RIGHT
4353031300
€ 14.50
24
4354031300
ref: 24
HOLDER,FRONT FOOTREST,LEFT
4354031300
€ 13.00
25
4381131300
ref: 25
BRACKET,MUFFLER,RIGHT
€ 119.00
26
4382131300
ref: 26
BRACKET,MUFFLER,LEFT
€ 77.50
27
0910610012
ref: 27
BOLT
€ 3.50
28
4357534500
ref: 28
CAP
4357534500
€ 1.50
29
4367109300
ref: 29
MODEL D
GUARD,REAR FOOT
€ 26.50
29
4367131300
ref: 29
MODEL E
GUIDE,REAR FOOT
€ 27.50
30
0110708168
ref: 30
BOLT
€ 2.00
31
0832121088
ref: 31
LOCK WASHER
0832121088
€ 2.00
32
0832211088
ref: 32
WASHER
0832211088
€ 2.00
33
4360031300
ref: 33
FOOTREST ASSY,PILLION,R
4360031300
€ 39.50
33
4370031300
ref: 33
FOOTREST ASSEMBLY,PILLION
4370031300
€ 27.50
34
4361045501
ref: 34
BAR,PILLION FOOTREST,RIGHT
4361045501
€ 17.00
34
4371045501
ref: 34
BAR,PILLION FOOTREST,LEFT
4371045501
€ 16.00
35
4361231300
ref: 35
RUBBER,RR FOOTREST
4361231300
€ 8.00
36
4363245501
ref: 36
PLATE,RUBBER STOPPER
4363245501
€ 2.50
37
0213205127
ref: 37
SCREW 5X12
0213205127
€ 2.50
38
0213205167
ref: 38
SCREW 5X16
0213205167
€ 2.00
39
4363509300
ref: 39
PLATE,SPRING STOP,R
4363509300
€ 3.50
39
4373509300
ref: 39
PLATE,SPRING STOP
4373509300
€ 3.00
40
0911106035
ref: 40
BOLT
0911106035
€ 4.50
41
0832211088
ref: 41
WASHER
0832211088
€ 2.00
42
0831931068
ref: 42
NUT
0831931068
€ 2.50
43
0944005003
ref: 43
SPRING
0944005003
€ 1.50
44
0611107004
ref: 44
BALL
0611107004
€ 1.50
45
0918108004
ref: 45
SHIM(8.2X22X0.2)
0918108004
€ 2.50
