FRONT WHEEL (GSX750ESD)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

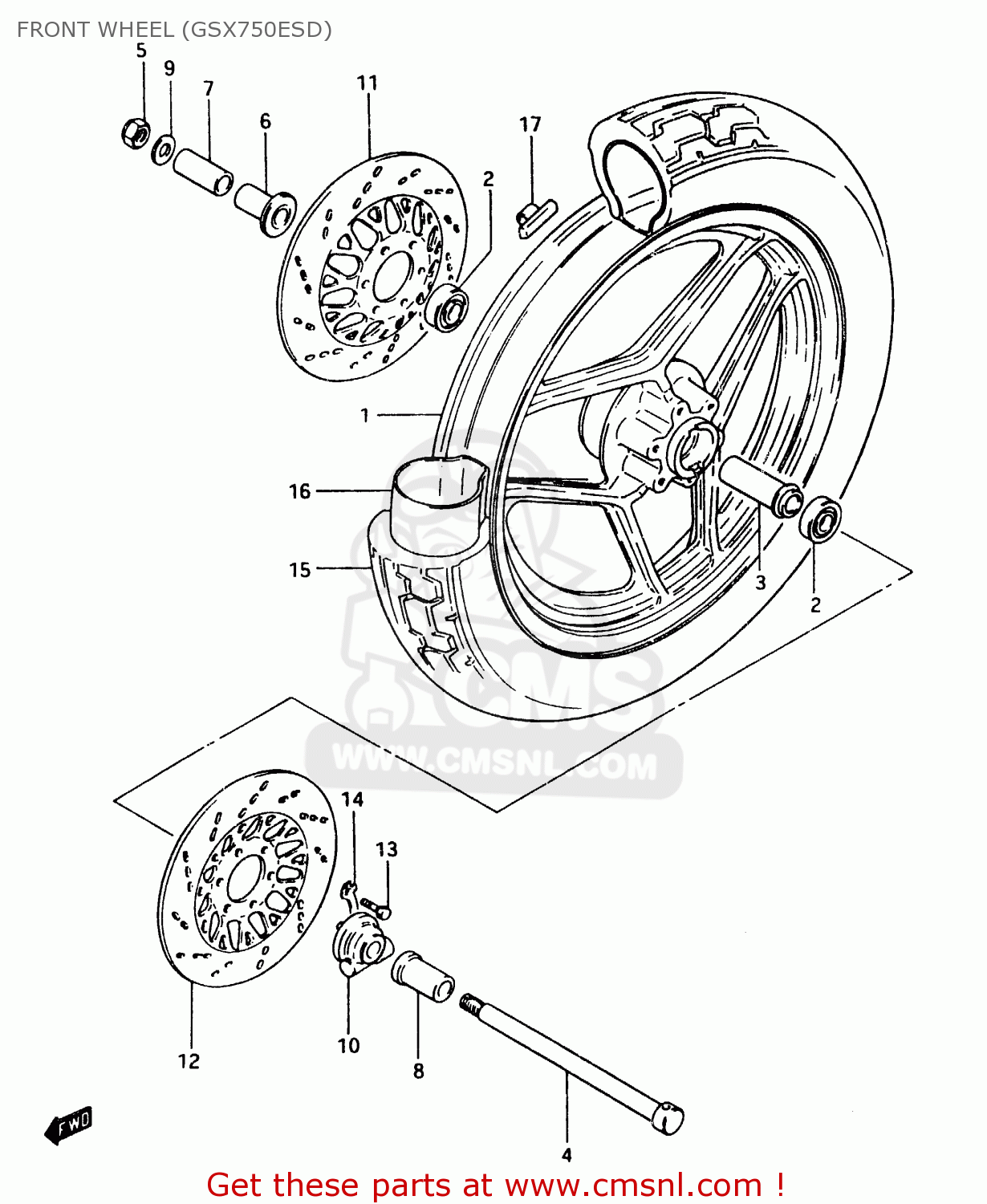

Front wheel (gsx750esd) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

FRONT WHEEL (GSX750ESD) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT WHEEL (GSX750ESD) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
FRONT WHEEL (GSX750ESD) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
5411109350291
ref: 1
BLACK
WHEEL, FRONT (2.15X16)
5411109350291
€ 576.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473009300
ref: 3
SPACER,FRONT HUB BEARING
€ 9.50
4
5471109300
ref: 4
AXLE,FR
5471109300
€ 42.00
5
0915912011
ref: 5
NUT
0915912011
€ 8.50
6
5474018402
ref: 6
SPACER,FR AXLE,R
5474018402
€ 18.50
7
5474149300
ref: 7
SPACER,FR AXLE,R
5474149300
€ 19.00
8
5474149000
ref: 8
SPACER,FR AXLE,L
5474149000
€ 16.50
9
0832221128
ref: 9
WASHER
0832221128
€ 2.00
10
5460031301
ref: 10
BOX ASSEMBLY,SPEEDOMETER GEAR
5460031301
€ 90.00
11
5921109300
ref: 11
DISC,BRAKE,RIGHT
5921109300
€ 243.00
12
5922109300
ref: 12
DISC,BRAKE,LEFT
5922109300
€ 243.00
13
0910008140
ref: 13
BOLT(8X25)
0910008140
€ 2.00
14
0916908016
ref: 14
WASHER
0916908016
€ 3.50
15
5510009395
ref: 15
MICHELIN
TIRE,FRONT
€ 0.00
16
5520009395
ref: 16
TUBE,INNER
€ 0.00
17
5541145100
ref: 17
BALANCER,WHEEL
5541145100
€ 7.00
17
5541245100
ref: 17
BALANCER,WHEEL
5541245100
€ 4.00
17
5541343100
ref: 17
BALANCER (10G)
€ 0.00
