MUFFLER (MODEL E)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

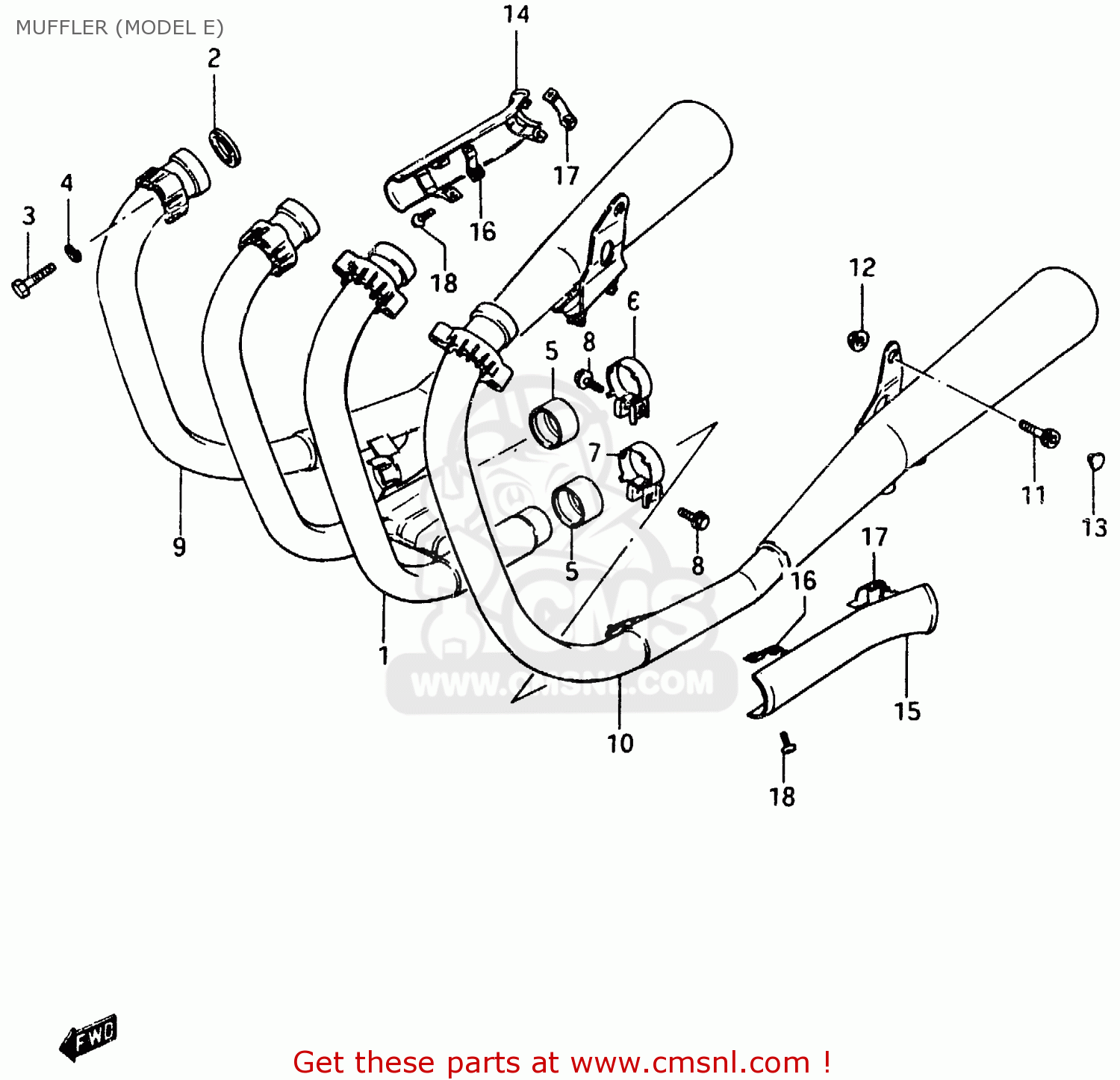

Muffler (model e) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

MUFFLER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
MUFFLER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
MUFFLER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
1410031302H01
ref: 1
PIPE,EXHAUST,CENTER
€ 253.00
1
1410031341
ref: 1
E18
PIPE, EXHAUST CENTER
€ 0.00
2
1418105020
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418105020
€ 6.50
3
0110708405
ref: 3
BOLT 8X40
0110708405
€ 3.00
4
0832121085
ref: 4
LOCK WASHER
€ 2.50
5
1477100A01
ref: 5
CONNECTOR,MUFFLER
1477100A01
€ 29.00
6
1445931300
ref: 6
CLAMP,MUFFLER CONNECTOR
1445931300
€ 17.00
7
1446931300
ref: 7
CLAMP,MUFFLER CONNECTOR
1446931300
€ 22.00
8
0151708254
ref: 8
BOLT
0151708254
€ 2.50
9
1430131301
ref: 9
MUFFLER ASSEMBLY
€ 370.00
9
1430131350
ref: 9
E18
MUFFLER, RH
€ 367.50
9
1430131370
ref: 9
E2,E4,E15,E16,E17,E2
MUFFLER, RH
€ 398.00
10
1430231302
ref: 10
MUFFLER ASSEMBLY
€ 383.00
10
1430231350
ref: 10
E18
MUFFLER, LH
€ 425.00
10
1430231370
ref: 10
E2,E4,E15,E16,E17,E2
MUFFLER, LH
€ 370.00
11
0711010255
ref: 11
BOLT 10X25
0711010255
€ 3.50
12
0831626105
ref: 12
NUT
0831626105
€ 3.50
13
4357534500
ref: 13
CAP
4357534500
€ 1.50
14
1478031302
ref: 14
COVER,MUFFLER,RIGHT
1478031302
€ 35.50
15
1479031302
ref: 15
COVER,MUFFLER,LEFT
1479031302
€ 35.50
16
1478531301
ref: 16
CLAMP,MUFFLER COVER
1478531301
€ 4.50
17
1478531320
ref: 17
CLAMP,MUFFLER COVER
1478531320
€ 5.50
18
0211205165
ref: 18
SCREW
0211205165
€ 2.00
