HEADLAMP (GSX750EE)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

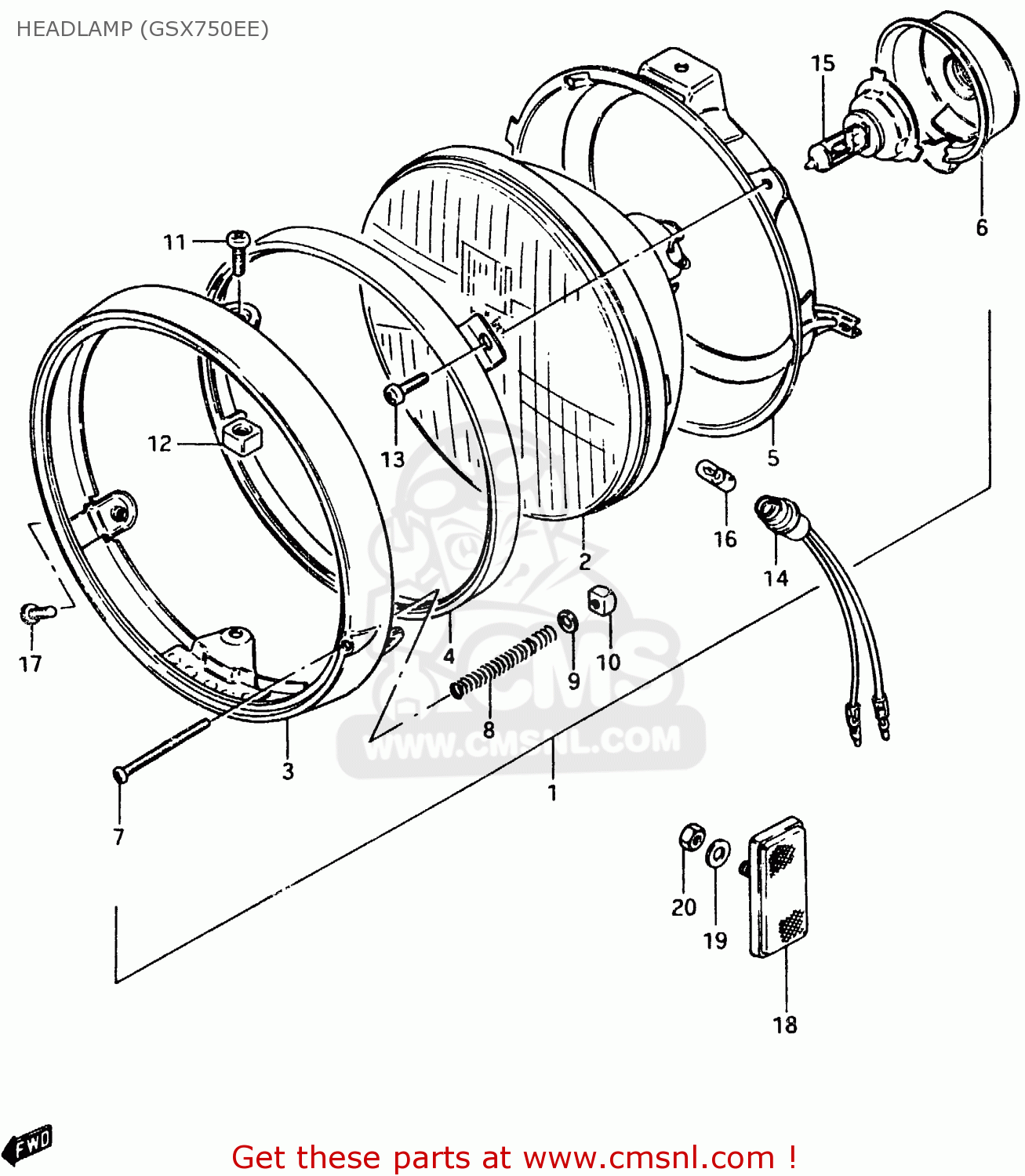

Headlamp (gsx750ee) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

HEADLAMP (GSX750EE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
HEADLAMP (GSX750EE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
HEADLAMP (GSX750EE) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
3510045930999
ref: 1
E1,E6,E24,E30
HEADLAMP ASSEMBLY
3510045930999
€ 140.50
1
3510045920999
ref: 1
E2
HEADLAMP ASSY
€ 0.00
1
3510045950999
ref: 1
E15,E16,E17,E18,E21,
HEADLAMP ASSY
€ 125.00
2
3512145930
ref: 2
E1,E6,E24,E30
LAMP UNIT
3512145930
€ 151.00
2
3512145920
ref: 2
E2
UNIT
€ 164.50
2
3512145950
ref: 2
E15,E16,E17,E18,E21,
LAMP UNIT
3512145950
€ 171.00
3
3511145900
ref: 3
RIM
3511145900
€ 69.50
4
3512745900
ref: 4
RETAINER
3512745900
€ 30.50
5
3513045900
ref: 5
RING,MOUNTING
3513045900
€ 126.00
6
3517349200
ref: 6
COVER,HEADLAMP SOCKET
3517349200
€ 12.50
7
3515145950
ref: 7
SCREW
€ 1.50
8
3515445900
ref: 8
SPRING,HEADLAMP ADJUST
€ 3.50
9
3515727630
ref: 9
WASHER
3515727630
€ 2.50
10
3513545600
ref: 10
NUT
3513545600
€ 3.00
11
0211205128
ref: 11
SCREW
€ 2.50
12
3513545900
ref: 12
NUT
3513545900
€ 2.50
13
0211204088
ref: 13
SCREW
€ 1.50
14
3611845900
ref: 14
E2,E15,E16,E17,E18,E
SOCKET,PARKING
3611845900
€ 13.00
15
0947112060
ref: 15
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
16
0947112063
ref: 16
E2,E15,E16,E17,E18,E
BULB(12V4W)
0947112063
€ 6.00
17
0912705013
ref: 17
SCREW(5X12)
0912705013
€ 2.50
18
3595031310
ref: 18
E39
REFLEX REFLECTOR, FRONT SIDE
€ 0.00
19
0832221055
ref: 19
E39
WASHER,5MM
0832221055
€ 2.50
20
0831012055
ref: 20
E39
NUT ,5MM
0831012055
€ 2.50
