FUEL TANK (GSX750ESD)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

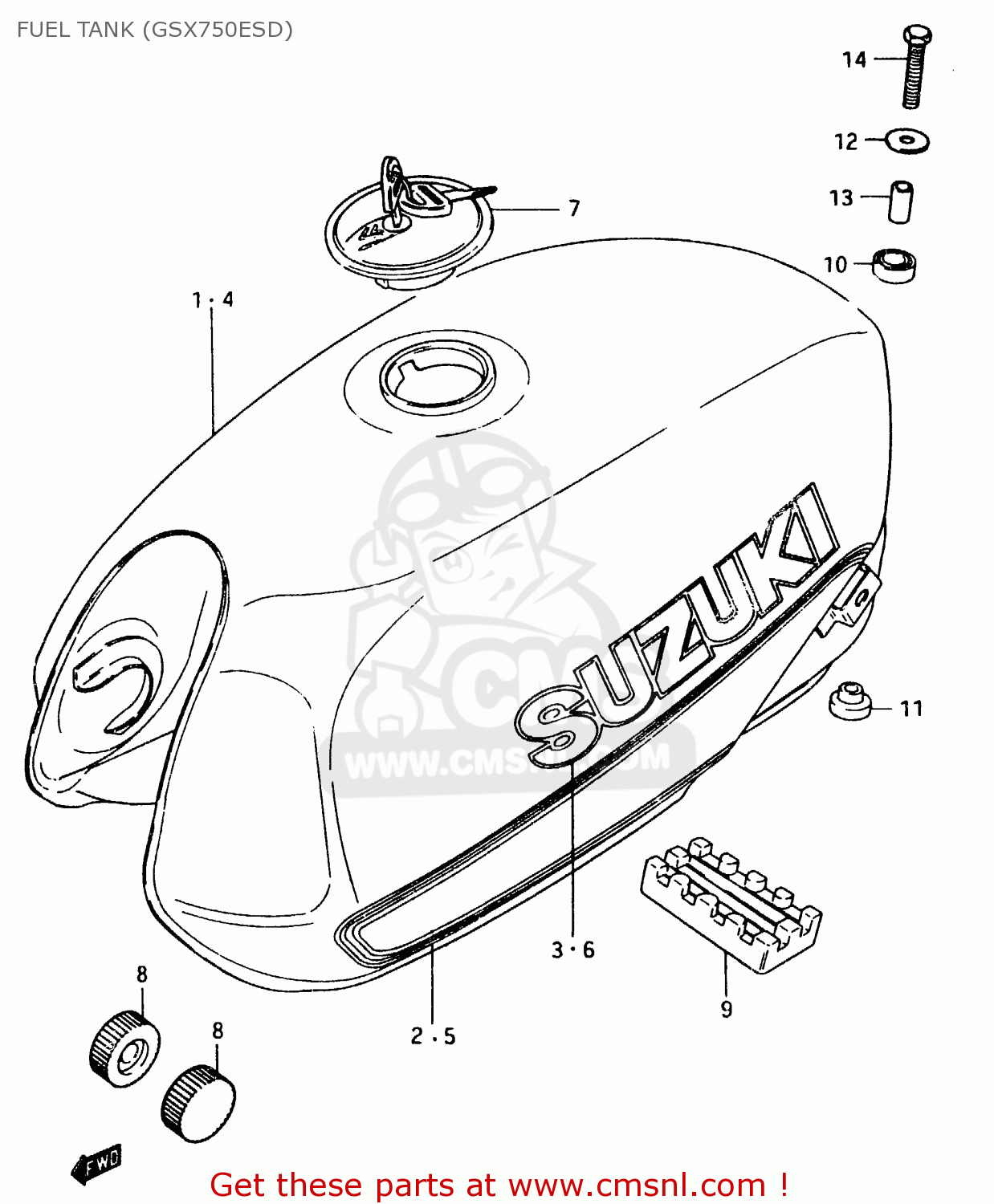

Fuel tank (gsx750esd) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

prices are in EUR

ref

part #

description

quantity

441003132094F
ref: 1

TANK, FUEL

€ 582.00

681103132094E
ref: 2

TAPE SET, FUEL TANK

€ 59.00

681113130071L
ref: 3

EMBLEM,FUEL TA

€ 14.50

441003132094S
ref: 4

TANK, FUEL

€ 582.00

681103132094T
ref: 5

TAPE SET, FUEL TANK

€ 34.00

681113130073H
ref: 6

EMBLEM

€ 24.00

4420034303KEY
ref: 7
TO 44200-34304-KEY

CAP SET,FUEL TANK

€ 135.50

0932910016
ref: 8

CUSHION

€ 3.00

4454134500
ref: 9

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 10

CUSHION

€ 3.00

0932010020
ref: 11

CUSHION

€ 4.00

0916006004
ref: 12

WASHER (6.5X24X1.6)

€ 1.50

0918006072
ref: 13

SPACER

€ 2.00

0110706308
ref: 14

BOLT

€ 2.50
