COWLING (GSX750ESD)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

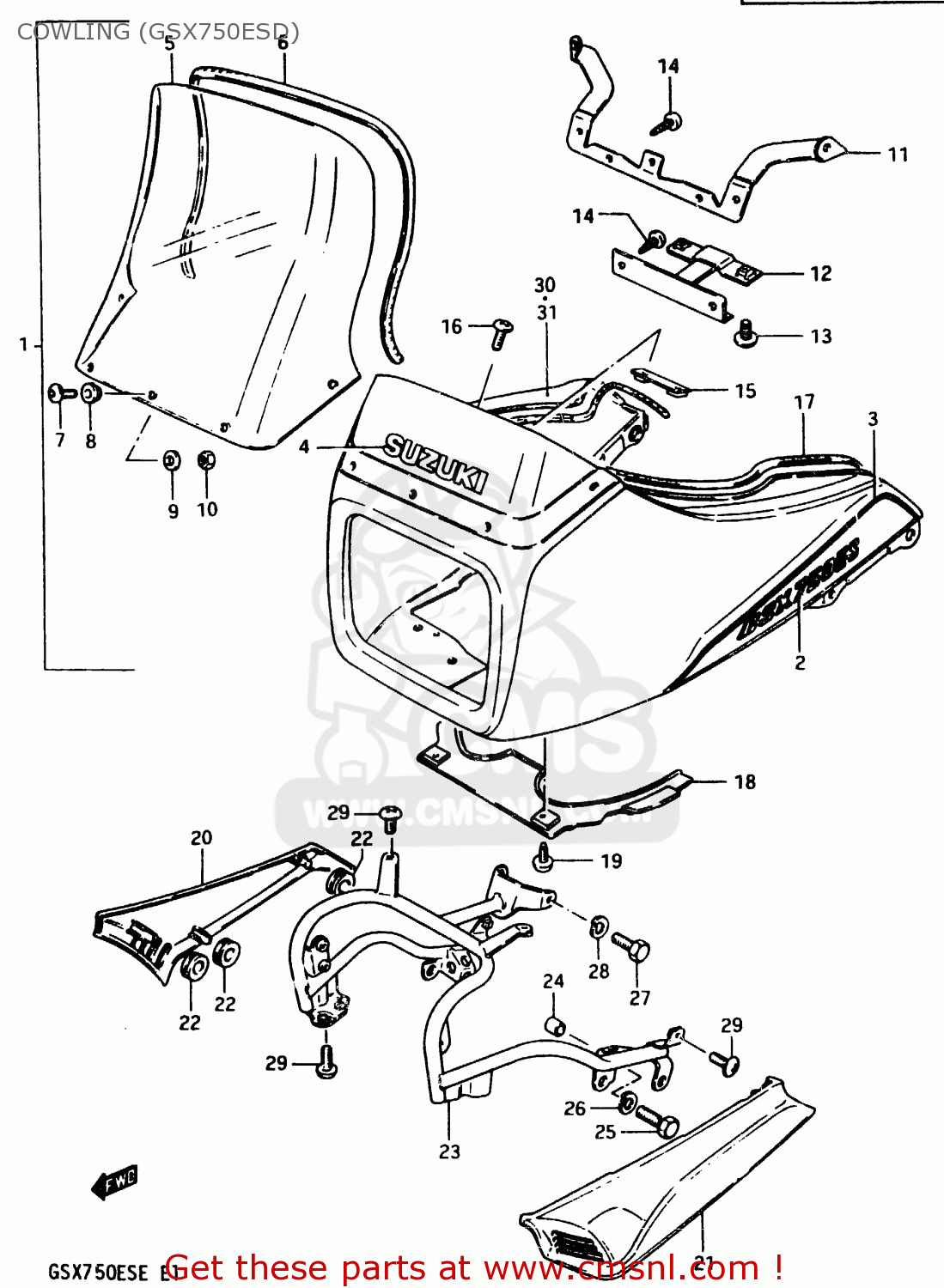

Cowling (gsx750esd) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

COWLING (GSX750ESD) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
COWLING (GSX750ESD) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
COWLING (GSX750ESD) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
944003181094F
ref: 1
COWLING ASSY (SILVER/RED)
€ 745.00
1
944003181094S
ref: 1
COWLING ASSY (SILVER/BLUE)
€ 745.00
1
944003183094F
ref: 1
E17
COWLING ASSY (SILVER/RED)
€ 745.00
1
944003183094S
ref: 1
E17
COWLING ASSY (SILVER/BLUE)
€ 745.00
1
944003184094F
ref: 1
E22
COWLING ASSY (SILVER/RED)
€ 0.00
1
944003184094S
ref: 1
E22
COWLING ASSY (SILVER/BLUE)
€ 745.00
2
681313132071L
ref: 2
EMBLEM, SIDE
681313132071L
€ 10.00
3
681903130094E
ref: 3
FOR 94F
TAPE SET
€ 34.50
3
681903130094T
ref: 3
FOR 94S
TAPE SET
681903130094T
€ 18.00
4
6827143400064
ref: 4
EMBLEM,HEADLAMP
6827143400064
€ 4.00
5
9461131310
ref: 5
WINDOW
€ 318.50
5
9461131320
ref: 5
E17
WINDOW,COWLING
€ 323.00
6
9463131310
ref: 6
MOLDING
9463131310
€ 18.00
6
9463131320
ref: 6
E17
MOULDING
€ 14.00
7
0214205205
ref: 7
SCREW
€ 2.00
8
0932005008
ref: 8
CUSHION
0932005008
€ 5.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
0831011058
ref: 10
NUT
0831011058
€ 2.50
11
9453031310
ref: 11
BRACE,COWLING,UPPER
9453031310
€ 18.50
12
9454031310
ref: 12
BRACE,COWLING,LOWER
9454031310
€ 10.00
13
0214205108
ref: 13
SCREW RH & LH
€ 2.50
14
0321105105
ref: 14
SCREW
€ 1.00
15
9455031310
ref: 15
BRACKET
9455031310
€ 2.50
16
0214205105
ref: 16
SCREW
0214205105
€ 2.50
17
9459331310
ref: 17
MOLDING,FUEL TANK
€ 32.00
18
9444531310
ref: 18
COVER,COWLING,LOWER
€ 12.00
19
0321105105
ref: 19
SCREW
€ 1.00
20
944313131007P
ref: 20
FOR 94F
COVER, RH (RED)
€ 34.00
20
944313131012F
ref: 20
FOR 94S
COVER, RH (BLUE)
€ 34.00
21
944413131007P
ref: 21
FOR 94F
COVER, LH (RED)
€ 62.00
21
944413131012F
ref: 21
FOR 94S
COVER, LH (BLUE)
€ 62.00
22
0932008018
ref: 22
CUSHION
0932008018
€ 4.00
23
9451031310
ref: 23
BRACE,COWLING
€ 98.00
24
9454949500
ref: 24
SPACER,COWLING
9454949500
€ 10.50
25
0110708308
ref: 25
BOLT (8X30)
0110708308
€ 2.50
26
0832121088
ref: 26
LOCK WASHER
0832121088
€ 2.00
27
0110708168
ref: 27
BOLT
€ 2.00
28
0832121088
ref: 28
LOCK WASHER
0832121088
€ 2.00
29
0214206125
ref: 29
SCREW 6X12
0214206125
€ 2.00
30
6819731300
ref: 30
TAPE,RIGHT
€ 8.50
31
6819831300
ref: 31
TAPE,LEFT
€ 9.50
