SPEEDOMETER - TACHOMETER

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

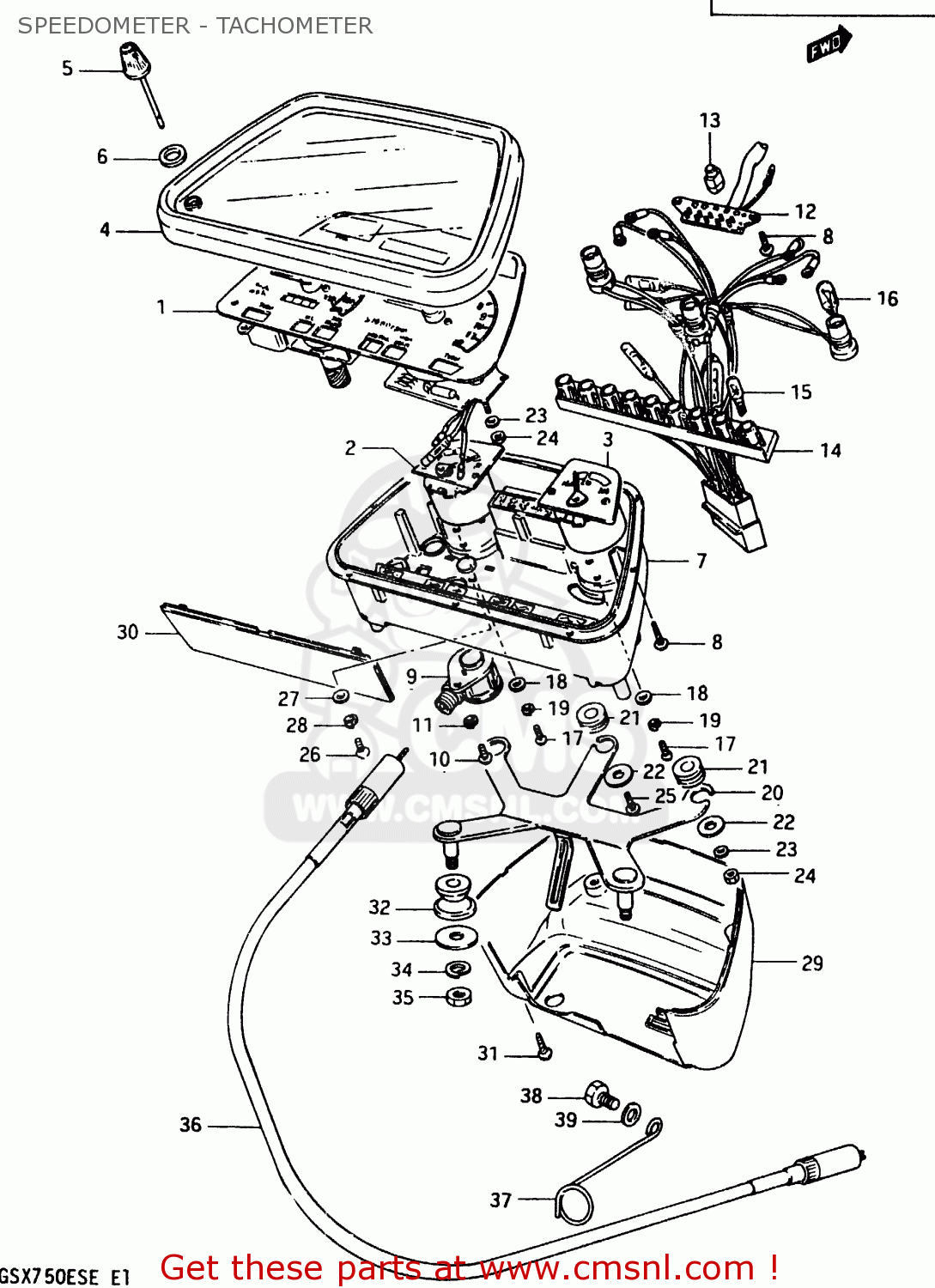

Speedometer - tachometer diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

SPEEDOMETER - TACHOMETER GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
SPEEDOMETER - TACHOMETER GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
SPEEDOMETER - TACHOMETER GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
3412031320
ref: 1
SPEEDO & TACHOMETER (MILE/KILO)
€ 0.00
1
3412031310
ref: 1
SPEEDO & TACHOMETER (KILO)
3412031310
€ 824.00
1
3412031340
ref: 1
E16,E18,E22,E26
SPEEDO & TACHOMETER (KILO)
3412031340
€ 865.50
1
3412031380
ref: 1
MODEL E E24
SPEEDO & TACHOMETER (KILO)
€ 824.00
2
3432049910
ref: 2
METER,FUEL
3432049910
€ 119.50
3
3473049920
ref: 3
FOR MILE
METER,OIL TEMPERATURE
€ 0.00
3
3473049910
ref: 3
FOR KILO
3473049910
4
3415049910
ref: 4
HOOD,METER
3415049910
€ 83.00
5
3412449910
ref: 5
KNOB,TRIP METER
3412449910
€ 10.00
6
3499649910
ref: 6
SEAL,TRIP KNOB
3499649910
€ 4.00
7
3411131310
ref: 7
CASE,METER INNER
3411131310
€ 78.00
8
0314103106
ref: 8
SCREW
0314103106
€ 1.50
9
3413149300
ref: 9
GEAR BOX,SPEEDOMETER
3413149300
€ 197.50
10
0211204108
ref: 10
SCREW 4X10
€ 2.00
11
0832121048
ref: 11
LOCK WASHER
0832121048
€ 2.00
12
3645331310
ref: 12
SOCKET,GEAR INDICATOR
3645331310
€ 28.50
13
0947112071
ref: 13
BULB(14V1.12W)
0947112071
€ 5.00
14
3417031310
ref: 14
SOCKET UNIT,METER
€ 125.50
14
3417031340
ref: 14
E16,E18,E22,E26
SOCKET, METER
€ 125.50
15
0947112085
ref: 15
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
16
0947112082
ref: 16
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
17
0211203128
ref: 17
SCREW 3X12
€ 2.50
18
0832221038
ref: 18
WASHER
0832221038
€ 2.00
19
0832121038
ref: 19
LOCK WASHER
€ 1.50
20
3495031310
ref: 20
BRACKET,METER
3495031310
€ 16.50
21
3495528010
ref: 21
CUSHION
3495528010
€ 4.00
22
3418149300
ref: 22
WASHER,COMBINATION METER
€ 1.50
23
0832131046
ref: 23
LOCK WASHER
€ 2.00
24
0831022048
ref: 24
NUT 4MM
€ 2.00
25
0314204169
ref: 25
SCREW
€ 2.00
26
0211203108
ref: 26
SCREW
0211203108
€ 1.50
27
0832221038
ref: 27
WASHER
0832221038
€ 2.00
28
0832121038
ref: 28
LOCK WASHER
€ 1.50
29
3419349910
ref: 29
COVER,METER LWR
3419349910
€ 77.50
30
3419749910
ref: 30
PLATE,COVER
3419749910
€ 20.50
31
0314104165
ref: 31
SCREW
0314104165
€ 2.00
32
3495631001
ref: 32
CUSHION,METER BRACKET
3495631001
€ 4.50
33
0916008057
ref: 33
WASHER (8.5X20X1.6)
0916008057
€ 2.00
34
0832121085
ref: 34
LOCK WASHER
€ 2.50
35
0831011085
ref: 35
NUT
€ 1.50
36
3491033400
ref: 36
CABLE ASSY,SPEEDOMETER
3491033400
€ 28.50
37
3493845100
ref: 37
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
38
0110706168
ref: 38
BOLT, UPPER
€ 3.00
39
0832221068
ref: 39
WASHER
0832221068
€ 2.00
