STEERING STEM (MODEL E)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

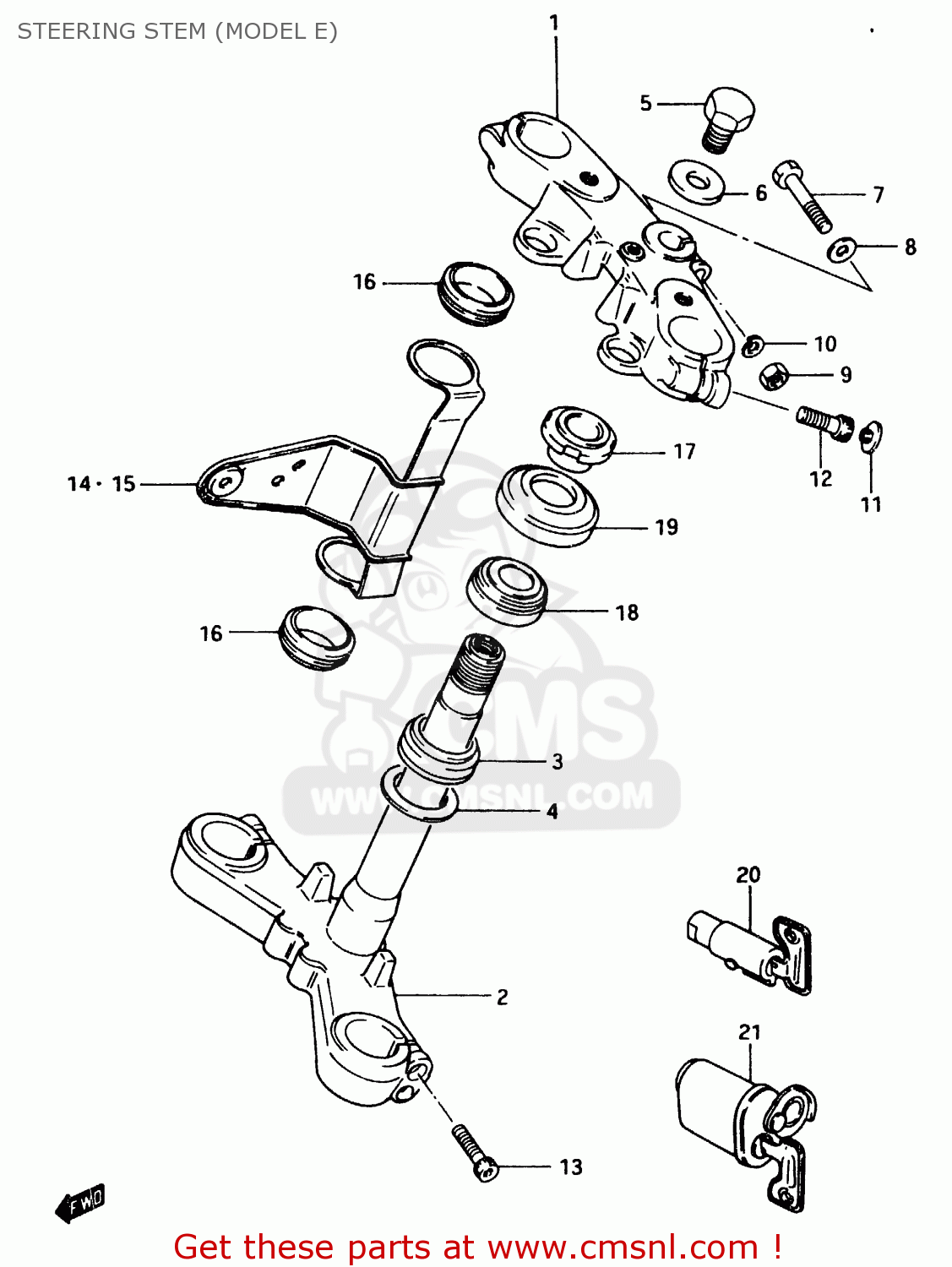

Steering stem (model e) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

STEERING STEM (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
STEERING STEM (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
STEERING STEM (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
513113131515T
ref: 1
HEAD,STEERING STEM
€ 148.50
2
514103136515T
ref: 2
STEM,STEERING
€ 349.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5135231305
ref: 5
BOLT
5135231305
€ 11.50
6
5135631305
ref: 6
WASHER,STEM HEAD
€ 4.00
7
0110708505
ref: 7
BOLT
€ 3.00
8
0832211084
ref: 8
WASHER
0832211084
€ 1.50
9
0831022085
ref: 9
NUT 8MM
0831022085
€ 2.00
10
0832121084
ref: 10
WASHER,LOCK,8.
0832121084
€ 2.50
11
0925008010
ref: 11
CAP(OD:20)
0925008010
€ 2.50
12
5135309310
ref: 12
NUT,STEM HEAD
€ 3.50
13
0711008355
ref: 13
BOLT 8X35
0711008355
€ 4.00
14
515303131515T
ref: 14
GSX750EE
BRACKET, HEADLAMP RH (BLACK)
€ 29.50
15
515403131515T
ref: 15
GSX750EE
BRACKET, HEADLAMP LH (BLACK)
€ 33.00
16
5155334300
ref: 16
GSX750EE
CUSHION,HEADLAMP BRACKET
5155334300
€ 4.50
17
5163134200
ref: 17
NUT,STEERING STEM
5163134200
€ 23.00
18
0926525008
ref: 18
TAPER,ROLLER BEARING
0926525008
€ 48.50
19
5164340502
ref: 19
DUST SEAL,STEERING UPR
5164340502
€ 8.00
20
5190022662
ref: 20
E22,E26
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
21
5190045400
ref: 21
E15,E17
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
