REAR MASTER CYLINDER (MODEL E)

GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

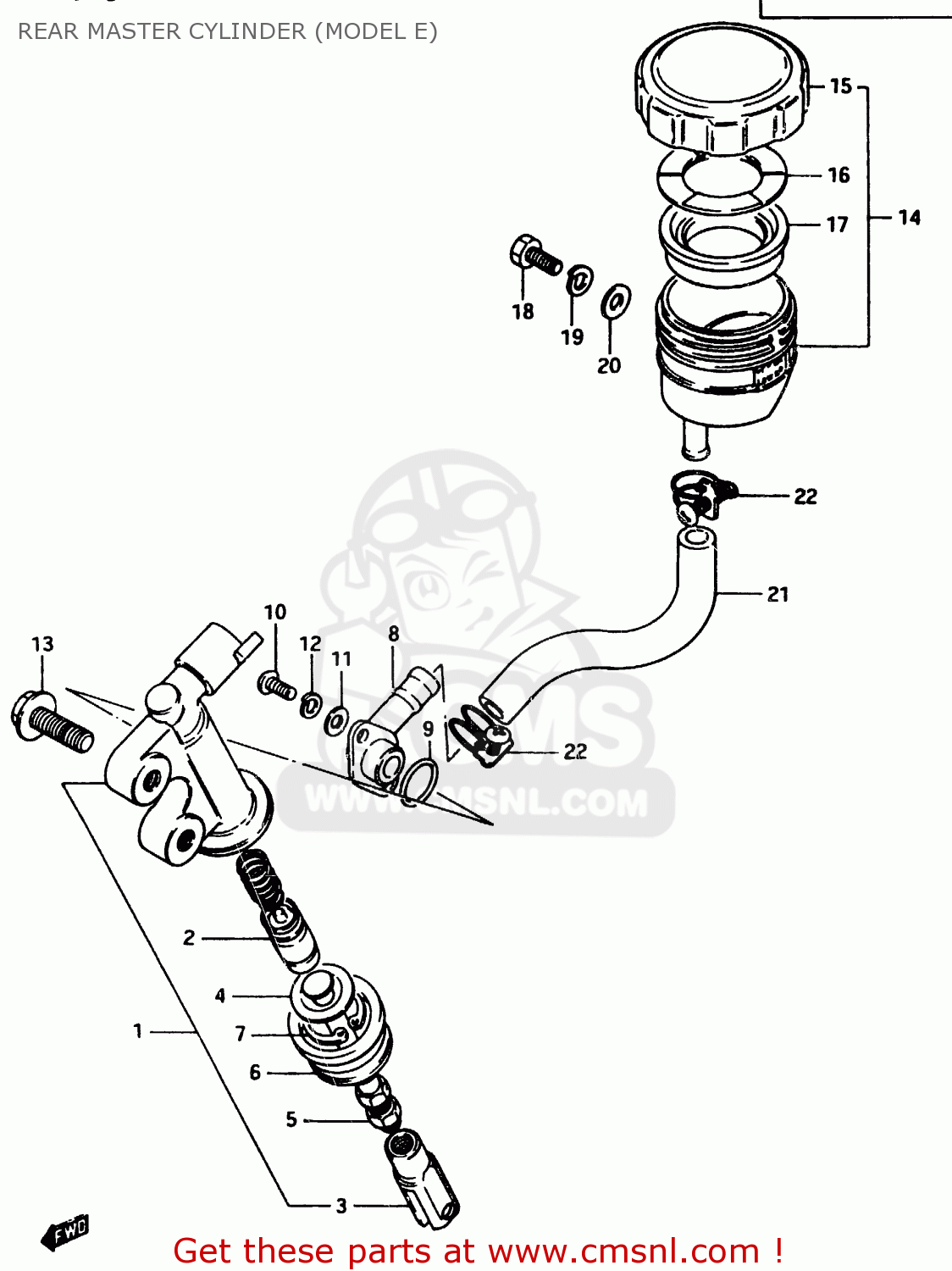

Rear master cylinder (model e) diagram GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39

REAR MASTER CYLINDER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
REAR MASTER CYLINDER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
REAR MASTER CYLINDER (MODEL E) GSX750ES 1983 (D) 1 2 4 6 15 16 17 18 21 22 24 25 26 27 30 34 39
prices are in EUR
ref
part #
description
quantity
1
6960031300
ref: 1
CYLINDER ASSY,RR MASTER
6960031300
€ 140.50
2
6960034810
ref: 2
PISTON/CUP SET
6960034810
€ 36.50
3
6969234300
ref: 3
YOKE
6969234300
€ 11.00
4
6967031300
ref: 4
ROD,PUSH
6967031300
€ 15.00
5
6969334300
ref: 5
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
6969145001
€ 6.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
6967209300
ref: 8
CONNECTOR,HOSE
€ 0.00
9
6968634200
ref: 9
O RING
6968634200
€ 3.50
10
0211204128
ref: 10
SCREW
0211204128
€ 1.50
11
0832221048
ref: 11
WASHER
0832221048
€ 2.00
12
0832121048
ref: 12
LOCK WASHER
0832121048
€ 2.00
13
0151708254
ref: 13
BOLT
0151708254
€ 2.50
14
6974034250
ref: 14
TANK ASSEMBLY,RESERVOIR
€ 27.50
15
5966939110
ref: 15
CAP
€ 16.00
16
5966818441
ref: 16
PLATE,DIAPHRAGM
5966818441
€ 3.50
17
5966718441
ref: 17
DIAPHRAGM
5966718441
€ 8.50
18
0912806011
ref: 18
SCREW(6X12)
0912806011
€ 3.00
19
0832121068
ref: 19
LOCK WASHER
0832121068
€ 2.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
6973131301
ref: 21
HOSE,RESERVOIR TANK
€ 9.50
22
0940016302
ref: 22
CLAMP
0940016302
€ 4.50
