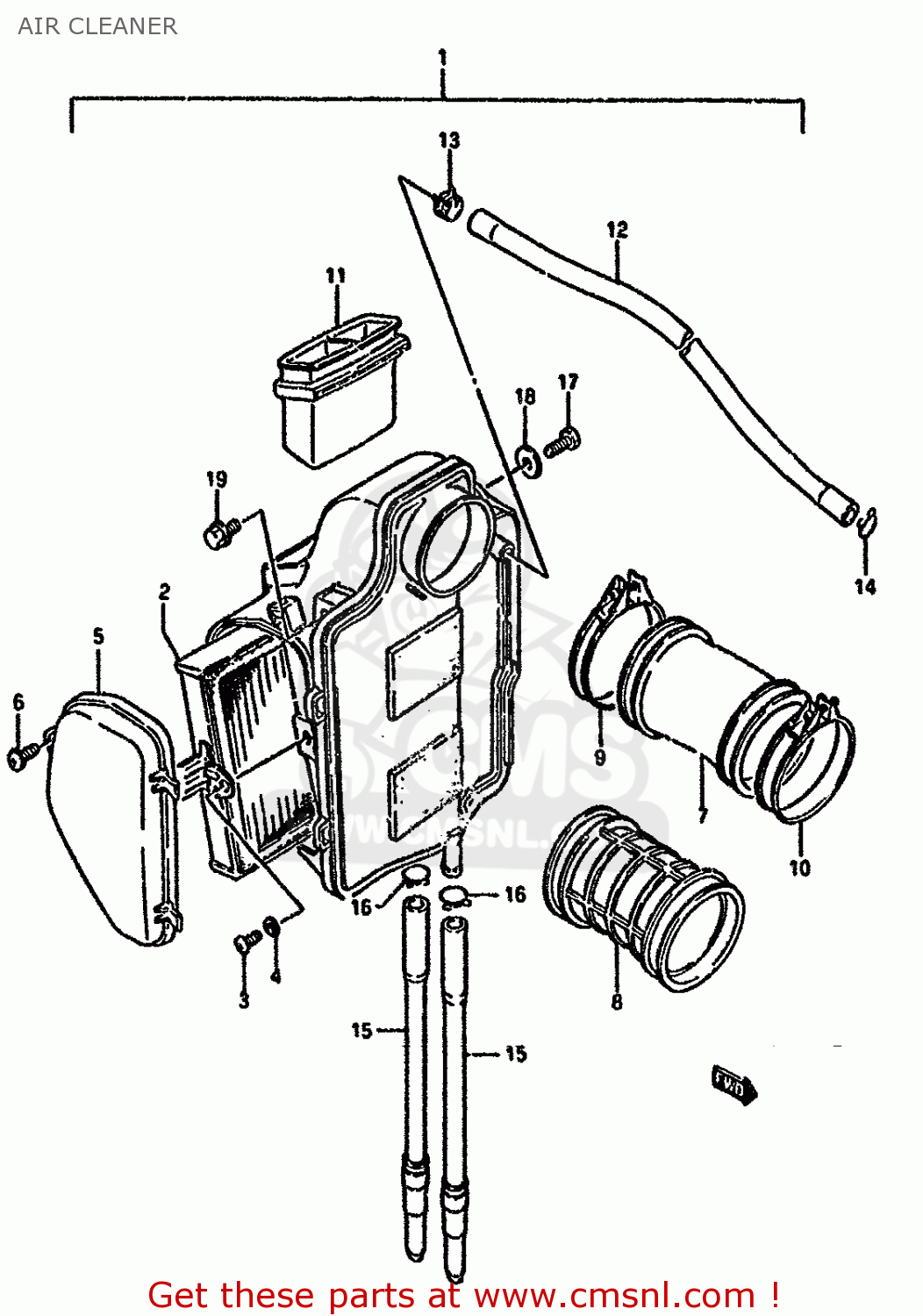

AIR CLEANER

ref

part #

description

quantity

1-1

1370024B10
ref: 1-1
MODEL G, 13700-24B12

CLEANER ASSY,AIR

€ 159.00

1-2

1370024B12
ref: 1-2
MODEL J/K/L

CLEANER ASSY,AIR

€ 159.00

1-3

1370024B13
ref: 1-3
MODEL M/R

CLEANER,AIR

€ 159.00

2-1

1378024B00
ref: 2-1
MODEL G/J/K/L

FILTER,AIR CLEANER

€ 31.50

2-2

1378024B01
ref: 2-2
MODEL M/R

FILTER ASSY,AIR

€ 31.50

3

0211205107
ref: 3

SCREW

€ 2.00

4

0832121057
ref: 4

LOCK WASHER

€ 2.00

5-1

1374024B00
ref: 5-1
MODEL G/J/K/L

CAP,AIR CLEANER

€ 13.50

5-2

1374024B01
ref: 5-2
MODEL M/R

CAP,AIR CLEANER

€ 13.50

6

0214205124
ref: 6

SCREW, FRONT & REAR

€ 1.50

7

1388124B00
ref: 7
MODEL G, 13881-24B01

TUBE,AIR CLEANER OUTLET

€ 17.50

8

1388124B01
ref: 8
MODEL J/K/L/M/R

TUBE,AIR CLEANER OUTLET

€ 17.50

9

0940270207
ref: 9

CLAMP

€ 6.00

10

0940264208
ref: 10

CLAMP

€ 6.00

11

1389124B10
ref: 11

TUBE,INLET

€ 15.00

12

1385100450
ref: 12
L:450 430

TUBE,BREATHER

€ 13.50

13

1382443400
ref: 13

CLIP

€ 2.00

14

0940114301
ref: 14

CLIP

€ 2.00

15

1387011267
ref: 15

DRAIN TUBE

€ 13.50

16

1382400A00
ref: 16

CLIP

€ 2.50

17

0110706166
ref: 17

BOLT

€ 2.00

18

0916006057
ref: 18

WASHER

€ 2.00

19-1

0151706125
ref: 19-1
MODEL G/J/K/L/M

BOLT 6X12

€ 2.50

19-2

0155006127
ref: 19-2
MODEL R

BOLT

€ 2.50

all assemblies
