FRONT CALIPER
LS650P 1990 (L) (E24)

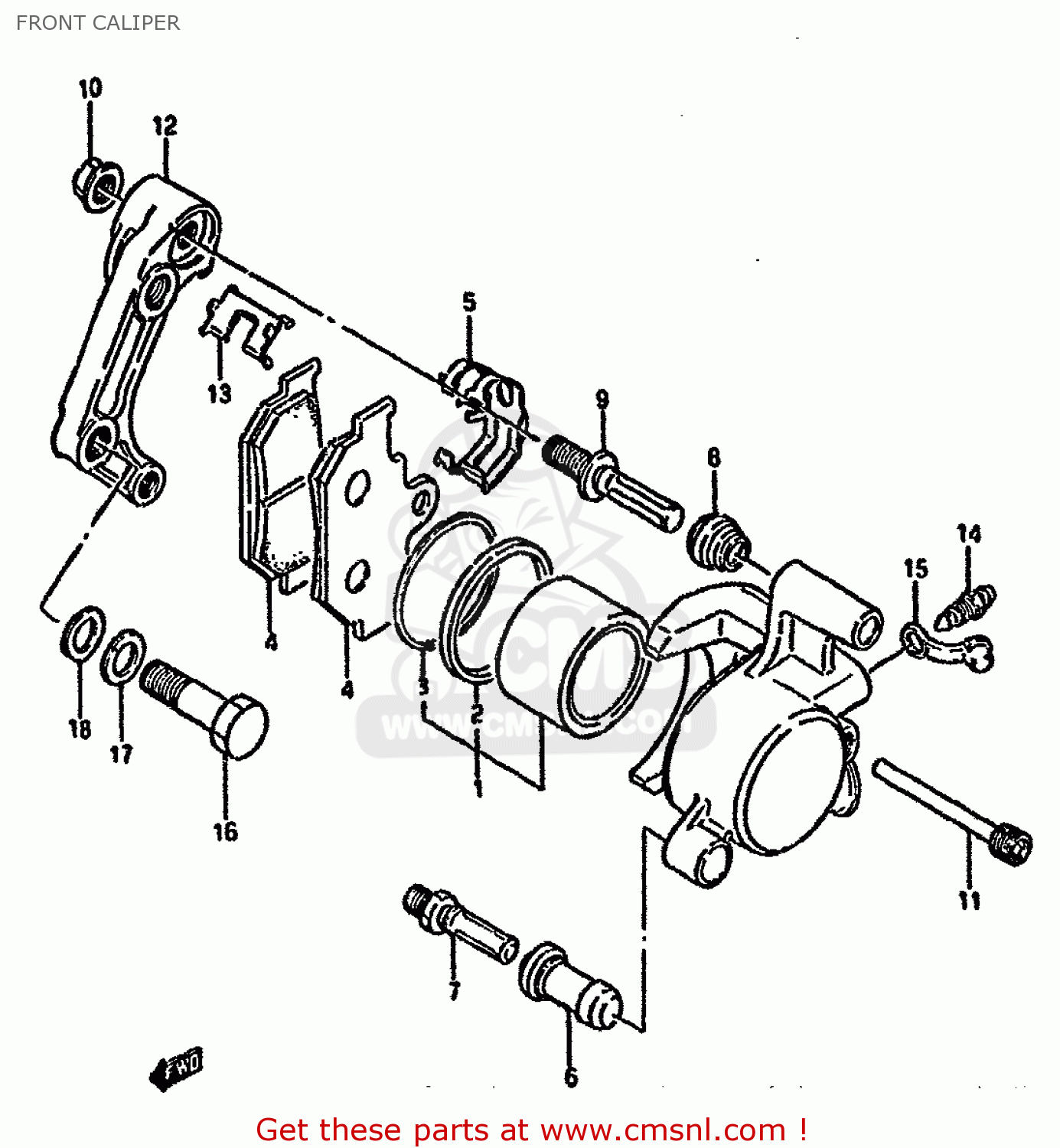

Front caliper diagram LS650P 1990 (L) (E24)
FRONT CALIPER LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
0
5930024B00
ref: 0
MODEL G,MODEL J E75
CALIPER ASSEMBLY,FRONT,LEFT
€ 500.50
0
5930024B10
ref: 0
MODEL J/K/M,E1,E4,E1
CALIPER ASSEMBLY,FRONT,LEFT
€ 500.50
1
5930024820
ref: 1
PISTON SET
€ 58.00
2
5910724B00
ref: 2
SEAL,PISTON
€ 14.00
3
5910824B00
ref: 3
SEAL,DUST
€ 14.00
4-1
5934024B00
ref: 4-1
MODEL G,MODEL J E75
PAD
€ 41.50
4-2
5934024B10
ref: 4-2
MODEL J/K/M,E1,E4,E1
PAD
€ 41.50
5
5931514600
ref: 5
SPRING
€ 6.50
6
5938613A00
ref: 6
BOOT
€ 6.50
7
5938214500
ref: 7
PIN,BOLT
€ 7.50
8
5930314500
ref: 8
BOOT
€ 5.50
9
5930514500
ref: 9
PIN,SLIDE
€ 12.50
10
5930614500
ref: 10
NUT,SLIDE PIN
€ 2.50
11
5934514600
ref: 11
PIN,HANGER
€ 10.50
12
5935124B00
ref: 12
BRACKET
€ 41.50
13
5931624B00
ref: 13
RETAINER
€ 6.00
14
5912101A00
ref: 14
BLEEDER
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
€ 4.50
16
0910410029
ref: 16
BOLT(10X38)
€ 3.50
17-1
0832121107
ref: 17-1
MODEL G/J/K/L/M
WASHER,LOCK,10
€ 2.00
17-2
0832101107
ref: 17-2
MODEL R
WASHER,LOCK
€ 2.00
18-1
0832221108
ref: 18-1
MODEL G/J/K/L/M
WASHER
€ 2.50
18-2
0832201107
ref: 18-2
MODEL R
WASHER
€ 2.50
