SEAT
LS650P 1990 (L) (E24)

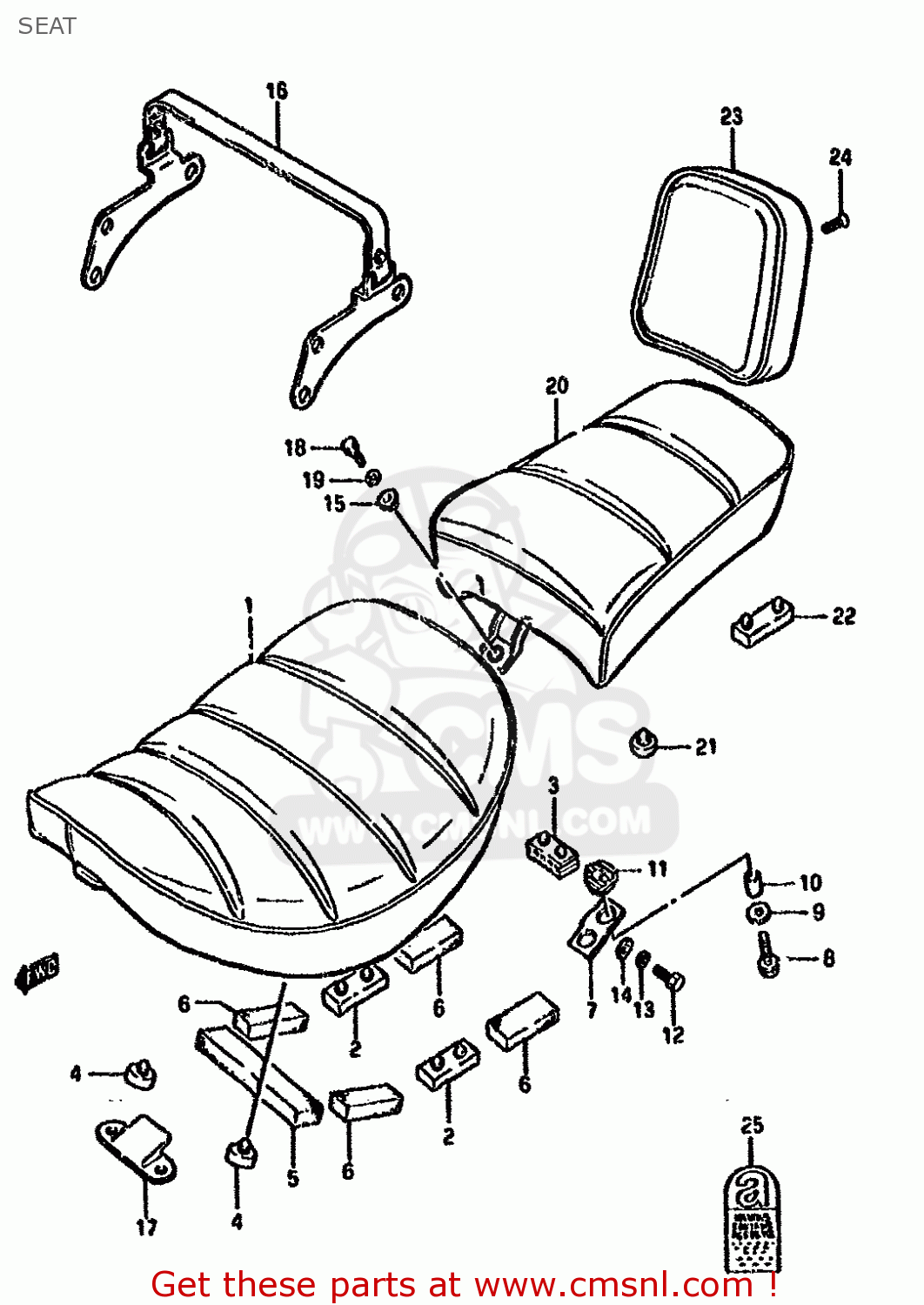

Seat diagram LS650P 1990 (L) (E24)
SEAT LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510024B004HS
ref: 1-1
MODEL G
SEAT ASSEMBLY
€ 191.50
1-2
4510024B204HS
ref: 1-2
MODEL J/K/L/M/R
SEAT SET
€ 191.50
2
4514943500
ref: 2
CUSHION,SEAT
€ 3.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
4514816700
ref: 4
CUSHION,FR
€ 2.00
5
4511624B00
ref: 5
CUSHION,CTR FR
€ 5.00
6
4611724B00
ref: 6
CUSHION,CTR SIDE
€ 6.00
7
4511424B00
ref: 7
BRACKET,SEAT RR
€ 6.00
8
0151706256
ref: 8
BOLT
€ 1.50
9-1
0916006020
ref: 9-1
MODEL G/J/K/L/M
WASHER
€ 2.00
9-2
0916006066
ref: 9-2
MODEL R
WASHER(6.5X20X1.6)
€ 2.00
10
4516924B00
ref: 10
COLLAR,SEAT(TS-5A1-02273)
€ 2.50
11
4511824B00
ref: 11
CUSHION,SEAT RR BRACKET
€ 2.50
12-1
0912806041
ref: 12-1
MODEL G/J
SCREW
€ 2.50
12-2
0911806088
ref: 12-2
MODEL K/L/M/R
BOLT 6X16
€ 0.00
13
0832121064
ref: 13
WASHER,LOCK
€ 2.00
14
0832221064
ref: 14
WASHER
€ 2.00
15
0916906037
ref: 15
WASHER
€ 6.50
16
4518024B004HS
ref: 16
E4,E16,E21,E22,E24,E
BAND,SEAT
€ 37.50
17
4511924B00
ref: 17
PLATE,SEAT HOOK FR
€ 2.00
18-1
0110706166
ref: 18-1
MODEL G/J
BOLT
€ 2.00
18-2
0113406166
ref: 18-2
MODEL K/L/M
BOLT
€ 2.50
18-3
0157006163
ref: 18-3
MODEL R
BOLT
€ 2.50
19
0832121066
ref: 19
MODEL G/J
WASHER,LOCK
€ 2.00
20
4530024B004HS
ref: 20
SEAT SET,PILLION
€ 187.00
21
4514924B00
ref: 21
CUSHION,SEAT
€ 0.00
22
4514943500
ref: 22
CUSHION,SEAT
€ 3.00
23
4535024B004HS
ref: 23
PAD ASSY,SEAT
€ 73.50
24
0212205168
ref: 24
SCREW
€ 2.00
25
1196782000
ref: 25
E2
LABEL,ASBESTOS WARNING
€ 2.00
