HEADLAMP (MODEL R)
LS650P 1990 (L) (E24)

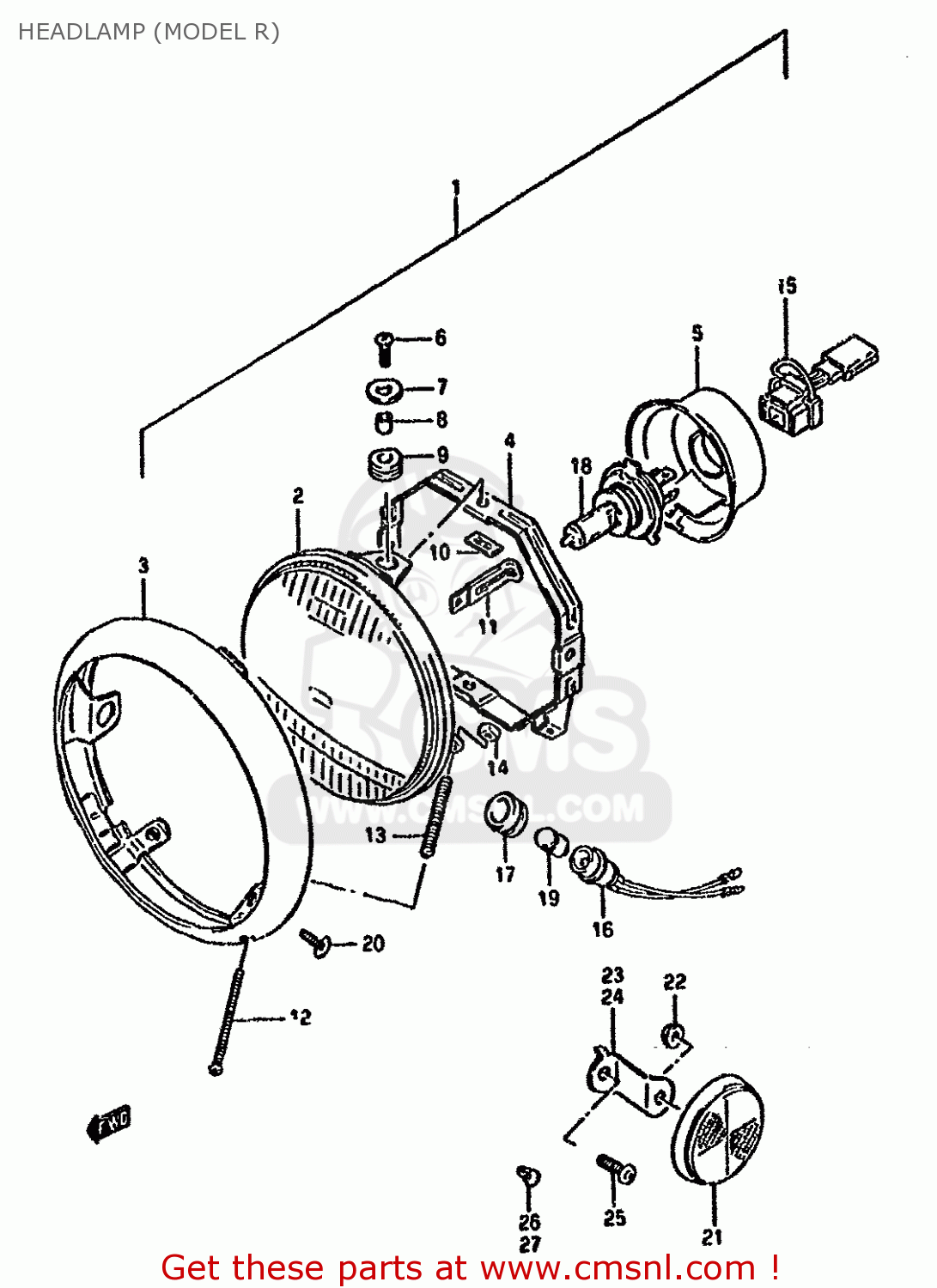

Headlamp (model r) diagram LS650P 1990 (L) (E24)
HEADLAMP (MODEL R) LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510038A00
ref: 1-1
HEADLAMP ASSY
€ 215.50
1-2
3510038A51999
ref: 1-2
E4,E15,E17,E18,E22,E
HEADLAMP ASSY
€ 216.50
2-1
3512138A00
ref: 2-1
LAMP UNIT
€ 126.50
2-2
3512138A41
ref: 2-2
E4,E15,E17,E18,E22,E
UNIT
€ 126.50
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6-1
0912505102
ref: 6-1
SCREW(5X14)
€ 2.50
6-2
0211205163
ref: 6-2
E4,E15,E17,E18,E22,E
SCREW
€ 2.00
7
3513845230
ref: 7
WASHER
€ 2.00
8
3513345230
ref: 8
SPACER
€ 2.00
9
3513945230
ref: 9
CUSHION
€ 1.50
10
3515548510
ref: 10
NUT
€ 2.00
11
0940405401
ref: 11
CLAMP
€ 2.50
12
3515131300
ref: 12
SCREW,HEADLAMP ADJUST
€ 3.00
13
3515431300
ref: 13
SPRING
€ 2.00
14
3513545600
ref: 14
NUT
€ 3.00
15
3685338A00
ref: 15
SOCKET
€ 10.00
16
3611849320
ref: 16
SOCKET
€ 12.00
17
3611622630
ref: 17
JOINT,RUBBER
€ 5.00
18
0947112060
ref: 18
BULB(12V60/55W,H4)
€ 8.00
19
0947112001
ref: 19
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
20
0214205127
ref: 20
SCREW
€ 1.50
21
3595014A00
ref: 21
E39
REFLECTOR,REFLEX FR
€ 15.00
22
0831000053
ref: 22
E39
NUT
€ 2.50
23
3595624B20
ref: 23
E39
BRACKET,FRONT SIDE RH
€ 0.00
24
3595724B20
ref: 24
E39
BRACKET,FRONT SIDE RH
€ 0.00
25
0211235123
ref: 25
E39
SCREW
€ 1.50
26
0940905304
ref: 26
5 HOLE
CLIP
€ 2.00
27
0940906306
ref: 27
5.5 HOLE
CLIP
€ 2.00
26
0832121055
ref: 26
E39,E77
WASHER,LOCK
€ 3.00
27
0940905304
ref: 27
5 HOLE
CLIP
€ 2.00
28
0940906306
ref: 28
5.5 HOLE
CLIP
€ 2.00
