STARTER CLUTCH

LS650P 1990 (L) (E24)

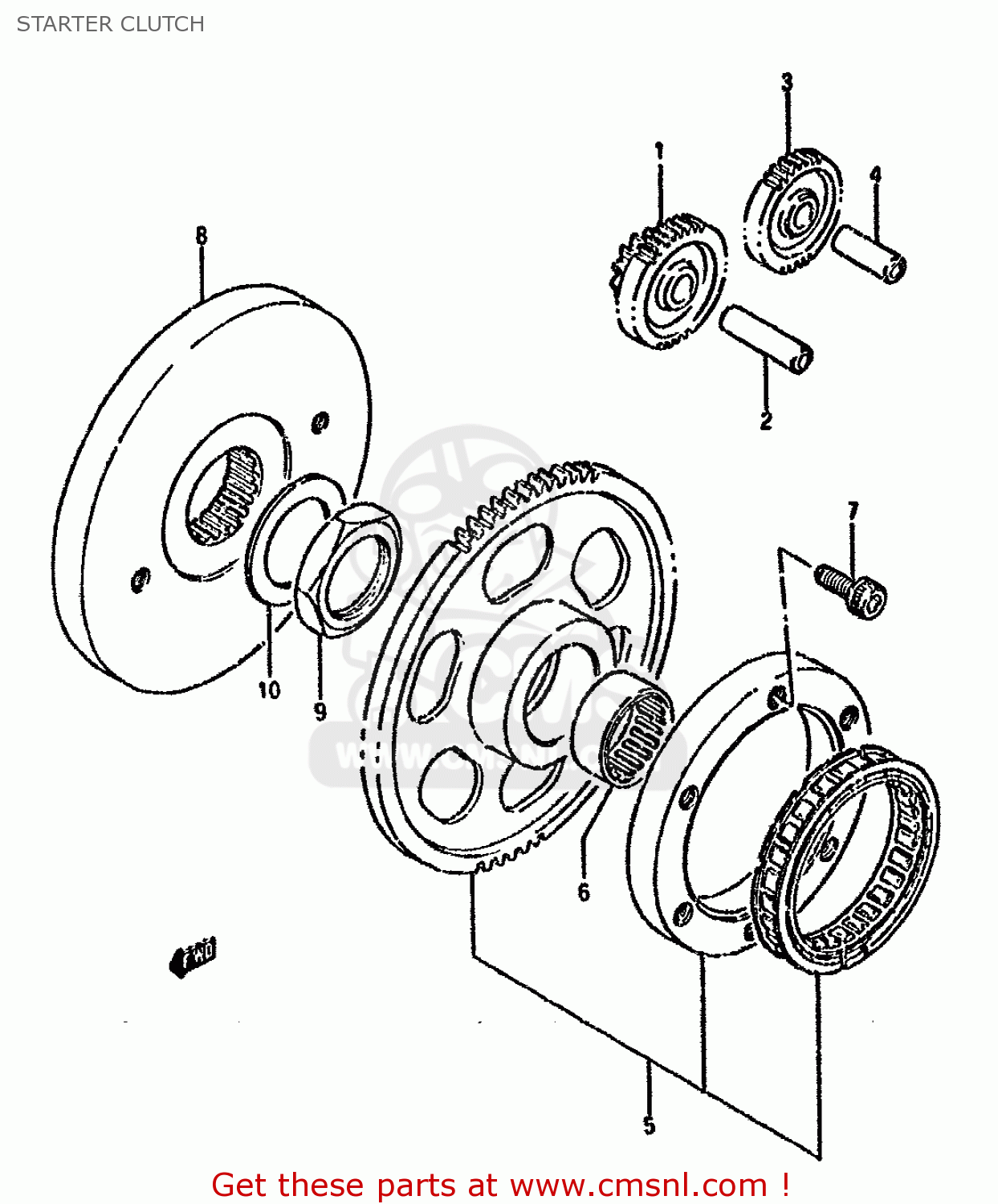

Starter clutch diagram LS650P 1990 (L) (E24)

STARTER CLUTCH LS650P 1990 (L) (E24)
STARTER CLUTCH LS650P 1990 (L) (E24)
STARTER CLUTCH LS650P 1990 (L) (E24)
prices are in EUR
ref
part #
description
quantity
1-1
1261124B01
ref: 1-1
MODEL G/J/K/L/M
GEAR,STARTER IDLE
€ 79.50
1-2
1261124B02
ref: 1-2
MODEL R
GEAR,STARTER IDLE NO.1
1261124B02
€ 79.50
2
0920610003
ref: 2
PIN
€ 9.00
3-1
1261224B01
ref: 3-1
MODEL G/J/K/L/M
GEAR,STARTER IDLE
€ 44.50
3-2
1261224B02
ref: 3-2
MODEL R
GEAR,STARTER IDLE
1261224B02
€ 44.50
4
0920610005
ref: 4
PIN
0920610005
€ 7.00
5
1260024830
ref: 5
CLUTCH SET,STARTER
€ 306.00
6
0926331009
ref: 6
BEARING(31X39X17.8)
0926331009
€ 25.50
7
0910608043
ref: 7
BOLT
0910608043
€ 3.00
8
1265624B02
ref: 8
FLYWHEEL
1265624B02
€ 92.00
9
1266424B01
ref: 9
NUT,FLYWHEEL
1266424B01
€ 9.50
10
0916435002
ref: 10
WASHER
0916435002
€ 5.00
