STEERING STEM
LS650P 1990 (L) (E24)

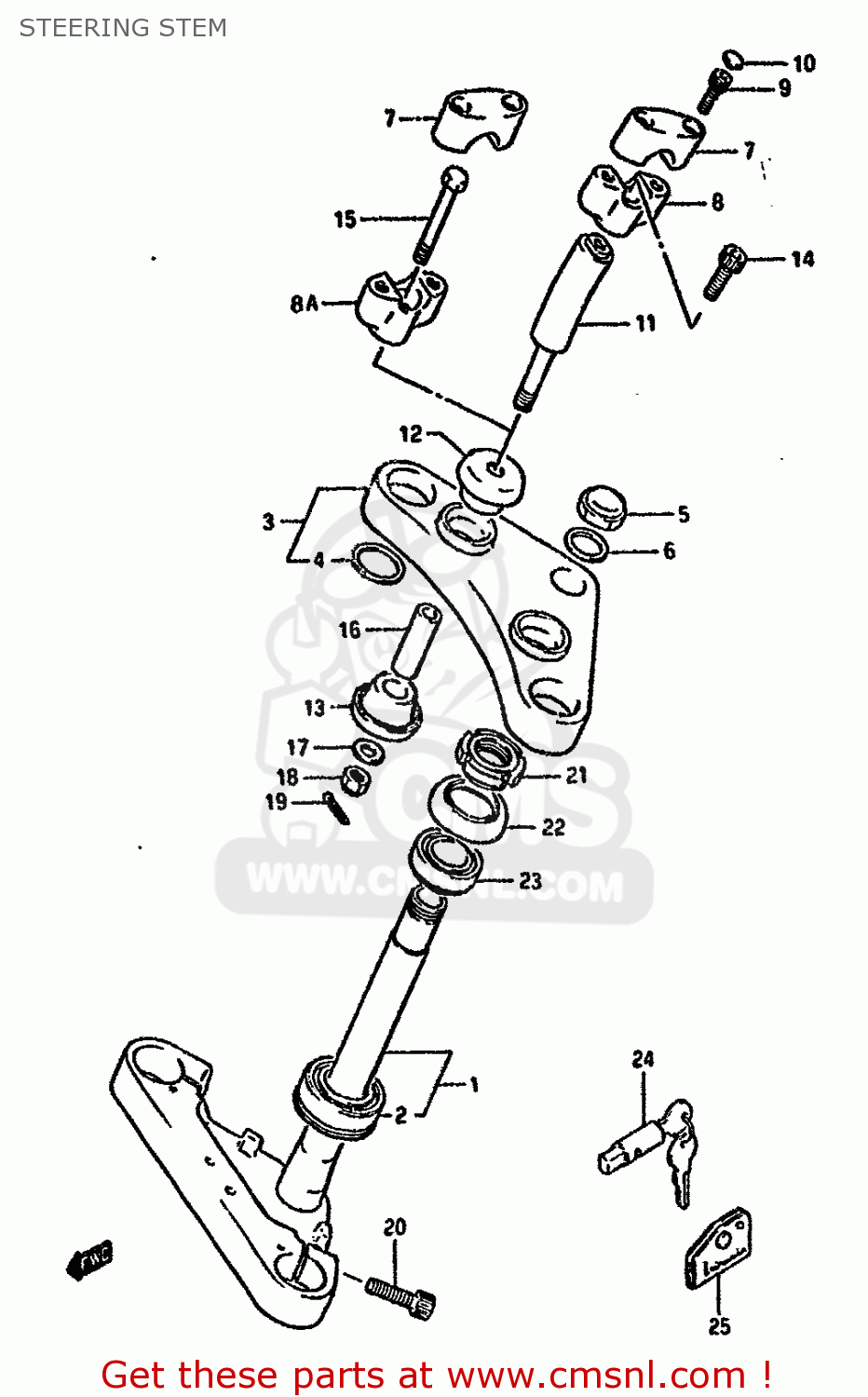

Steering stem diagram LS650P 1990 (L) (E24)
STEERING STEM LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
5141024B20
ref: 1
STEM,STEERING
€ 585.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
5131024B00
ref: 3
HEAD,STEERING STEM
€ 478.50
4
5135724B00
ref: 4
WASHER,STEM HEAD,LOWER
€ 2.50
5
5135324B00
ref: 5
NUT,CAP
€ 21.50
6-1
5135627A00
ref: 6-1
MODEL G
WASHER,STEERING STEM
€ 3.00
6-2
5135624B01
ref: 6-2
MODEL J/K/L/M/R
WASHER(22.5X32X1.6)
€ 3.00
7
5621124B00
ref: 7
HOLDER,HANDLE UPR
€ 58.00
8
5622124B00
ref: 8
LS650F
HOLDER,HANDLE LWR
€ 52.00
8A
5622124B10
ref: 8A
LS650P
HOLDER,HANDLE LWR
€ 60.50
9
0711008307
ref: 9
BOLT, LH
€ 4.50
10
0925006009
ref: 10
CAP(OD:14.5)
€ 3.50
11
5623124B00
ref: 11
LS650F
ARM
€ 59.00
12
5624024B00
ref: 12
CUSHION,UPR
€ 28.50
13
5624024B10
ref: 13
CUSHION,LWR
€ 28.50
14
0711010257
ref: 14
LS650F
BOLT
€ 3.00
15
5622324B10
ref: 15
LS650P
BOLT,HANDLBAR CLAMP
€ 10.00
16
0918010065
ref: 16
SPACER(10.2X14X46)
€ 4.50
17
0832221105
ref: 17
WASHER 10MM
€ 2.50
18
0915910027
ref: 18
NUT
€ 3.00
19
0411120208
ref: 19
PIN 20X20
€ 1.50
20
0711010307
ref: 20
BOLT, (10X30)
€ 4.50
21
5163128000
ref: 21
NUT,STEERING STEM(25X44X10)
€ 12.50
22-1
5164349001
ref: 22-1
MODEL G/J/K/L/M
DUST SEAL,STEERING,UPPER
€ 7.50
22-2
5164349002
ref: 22-2
MODEL R
SEAL,STEERING UPR DUST
€ 7.50
23
0926525008
ref: 23
TAPER,ROLLER BEARING
€ 48.50
24
5190022662
ref: 24
LOCK ASSEMBLY,STEERING (NEI
€ 168.50
25
5192024B00
ref: 25
CASE,STEERING KEY
€ 10.50
