REAR COMBINATION LAMP
LS650P 1990 (L) (E24)

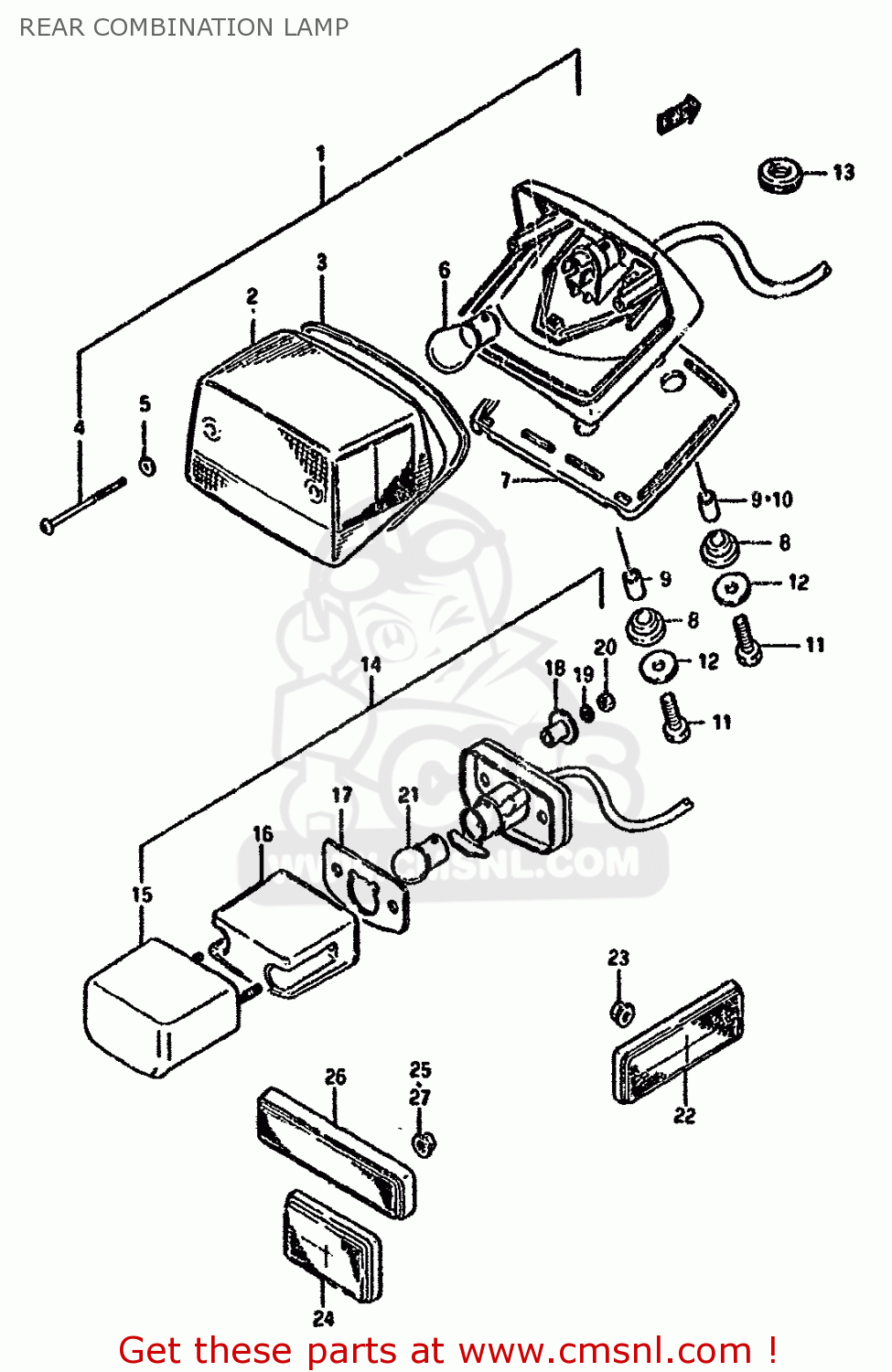

Rear combination lamp diagram LS650P 1990 (L) (E24)
REAR COMBINATION LAMP LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571024B21
ref: 1-1
MODEL G
LAMP ASSY,RR C
€ 512.00
1-2
3571024B00
ref: 1-2
MODEL J/K/L/M/P/R
LAMP ASSY,RR COMBINATION
€ 512.00
2
3571224B21
ref: 2
LENS
€ 127.00
3
3571338A00
ref: 3
GASKET (NAS)
€ 9.50
4
3572344130
ref: 4
SCREW
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947112083
ref: 6
BULB(12V21/5W)
€ 6.00
7-1
3576524B30
ref: 7-1
MODEL G
CUSHION,REAR COMBINATION LAMP
€ 12.00
7-2
3576524B00
ref: 7-2
MODEL J/K/L/M/P/R
CUSHION
€ 12.00
8
3576426470
ref: 8
CUSHION
€ 2.50
9-1
3576637190
ref: 9-1
MODEL G
SPACER
€ 2.00
9-2
3576637190
ref: 9-2
MODEL J/K/L/M/P/R
SPACER
€ 2.00
10
3576640640
ref: 10
MODEL J/K/L/M/P/R
SPACER
€ 0.00
11-1
0110706256
ref: 11-1
MODEL G/J/K/L
BOLT
€ 2.50
11-2
0911606087
ref: 11-2
MODEL M/R
BOLT 6X25
€ 2.00
12
0916006020
ref: 12
WASHER
€ 2.00
13
0930809013
ref: 13
GROMMET
€ 2.00
14-1
3591024B20
ref: 14-1
LAMP ASSY,LICENSE
€ 298.50
14-2
3591024B00
ref: 14-2
MODEL K/M E1
LAMP ASSEMBLY,LICENSE
€ 142.50
14-3
3591024B30
ref: 14-3
MODEL G E24
LAMP ASSEMBLY,LICENSE
€ 142.50
15-1
3591738A20
ref: 15-1
COVER,LICENSE LAMP
€ 121.50
15-2
3591738A30
ref: 15-2
MODEL G E24,MODEL K/
COVER,LICENSE LAMP
€ 121.50
16-1
3591238A20
ref: 16-1
LENS
€ 13.00
16-2
3591238A30
ref: 16-2
MODEL G E24,MODEL K
LENS
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
€ 2.00
18
3576624B30
ref: 18
SPACER
€ 2.00
19
0832121047
ref: 19
WASHER,LOCK 4M
€ 2.00
20
0831011047
ref: 20
NUT
€ 2.00
21-1
0947112140
ref: 21-1
BULB(12V5W,BF150-40160A)
€ 4.00
21-2
0947112141
ref: 21-2
MODEL K/M E1
BULB(12V8W)
€ 7.00
21-3
0947112037
ref: 21-3
MODEL G E24
BULB
€ 7.00
22
3595043431
ref: 22
E39,E77
REFLEX REFLECTOR,FR SIDE
€ 12.00
23
0831616056
ref: 23
NUT
€ 2.50
24
3597001A00
ref: 24
REFLEX REFLECTOR ASSY,RR
€ 85.00
25
0831616056
ref: 25
NUT
€ 2.50
26
3597038A00
ref: 26
MODEL G E24,MODEL K/
REFLEX REFLECTOR ASSY,RR
€ 25.50
27
0831616056
ref: 27
NUT
€ 2.50
