MAGNETO

LS650P 1990 (L) (E24)

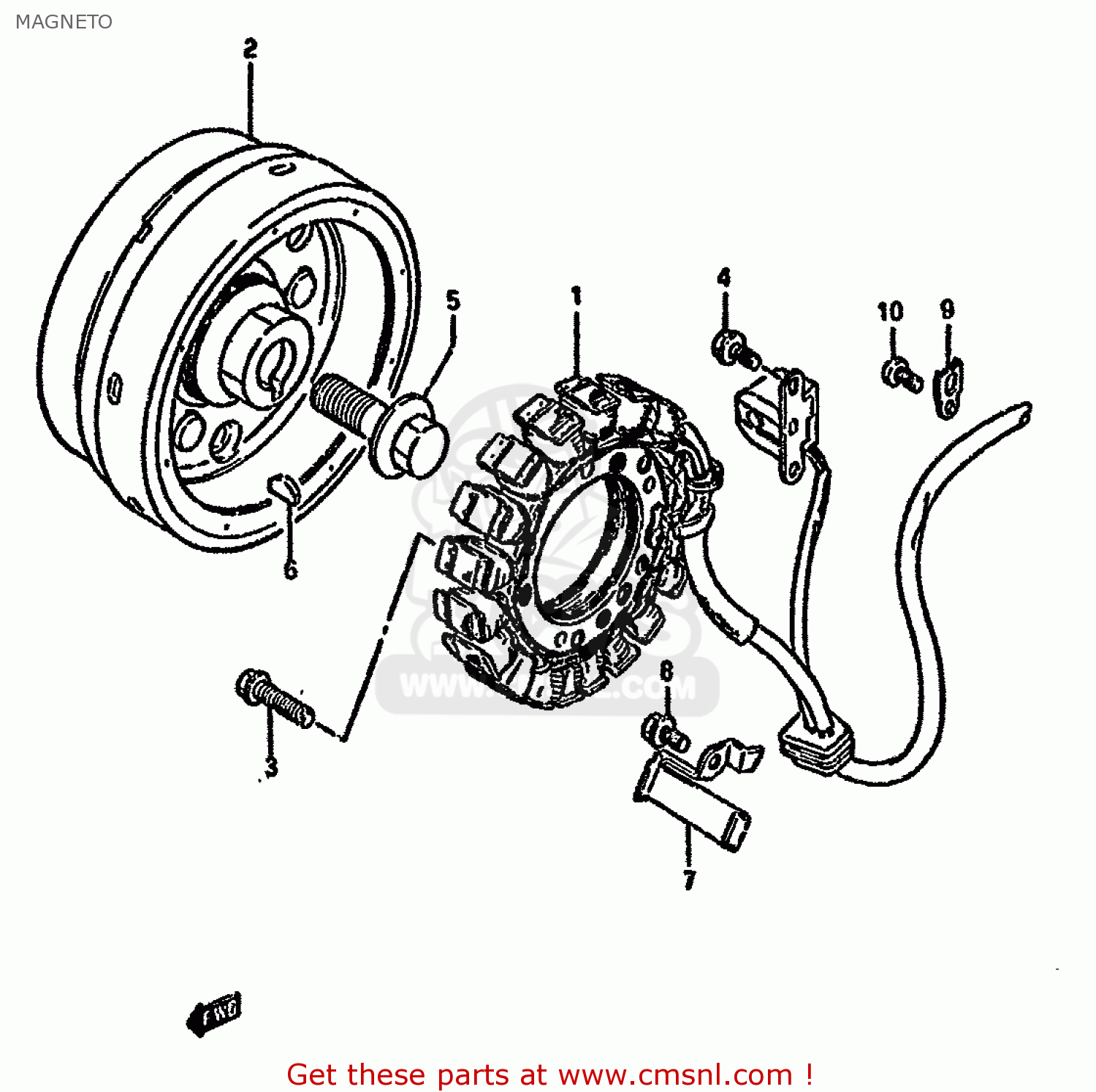

Magneto diagram LS650P 1990 (L) (E24)

MAGNETO LS650P 1990 (L) (E24)
MAGNETO LS650P 1990 (L) (E24)
MAGNETO LS650P 1990 (L) (E24)
prices are in EUR
ref
part #
description
quantity
1
3210124B00
ref: 1
STATOR ASSEMBLY
€ 603.00
2
3210224B00
ref: 2
ROTOR,FLYWHEEL
3210224B00
€ 422.50
3
0154706257
ref: 3
BOLT
0154706257
€ 2.50
4
0154705107
ref: 4
BOLT
€ 1.50
5
0910314001
ref: 5
BOLT(14X43)
0910314001
€ 7.00
6
0942005007
ref: 6
KEY
0942005007
€ 3.00
7
3237124B00
ref: 7
CLAMP,MAGNETO LEAD WIRE NO.1
€ 3.00
8
0154705107
ref: 8
BOLT
€ 1.50
9
3149745000
ref: 9
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
10
0211205107
ref: 10
SCREW
0211205107
€ 2.00
