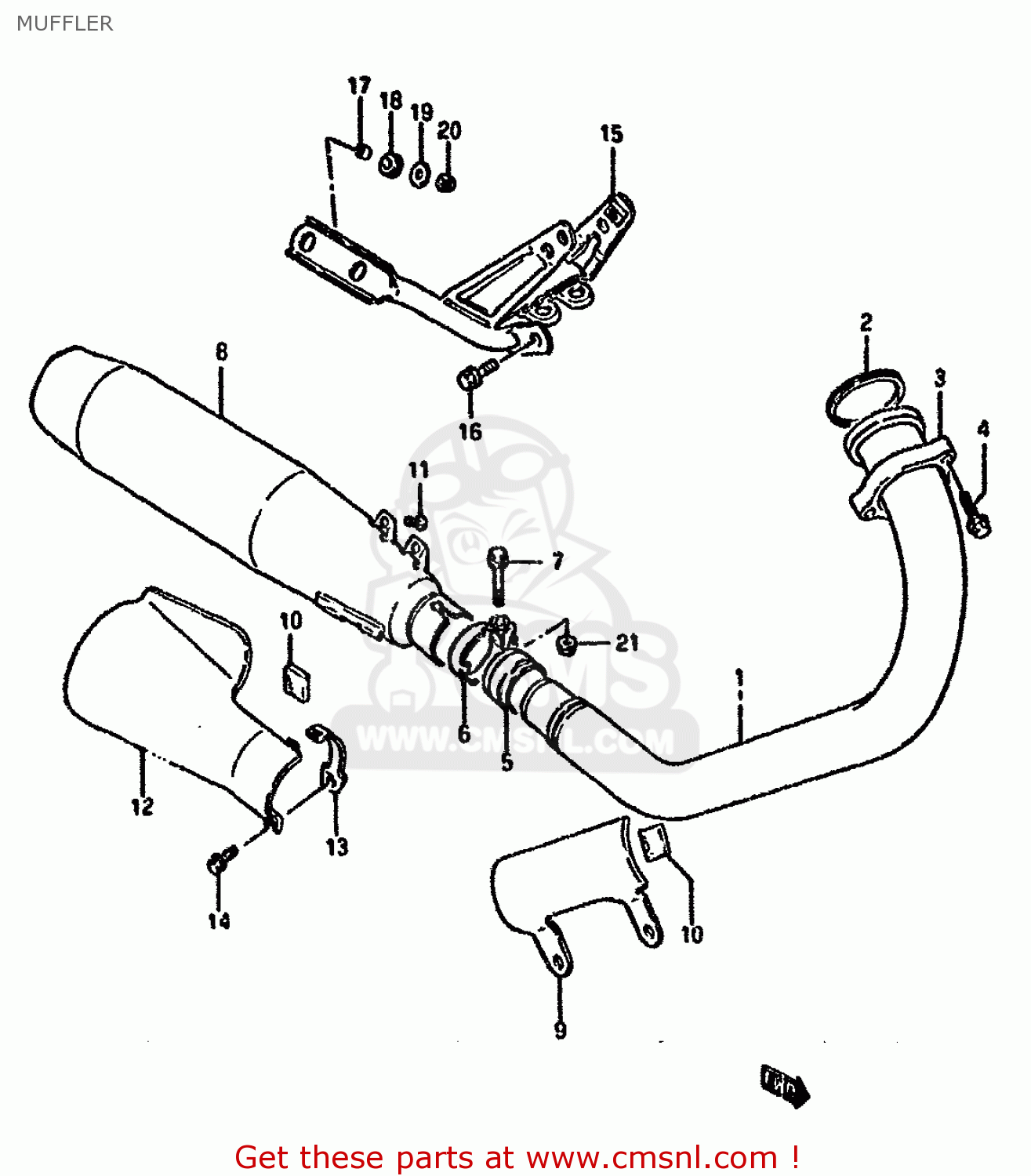

MUFFLER

ref

part #

description

quantity

1

1415024B00
ref: 1

PIPE,EXHAUST

€ 193.50

2-1

1418138A00
ref: 2-1
MODEL G/J/K/L/M

GASKET,EXHAUST PIPE (NAS)

€ 6.50

2-2

1418145C00
ref: 2-2
MODEL R

GASKET,EXHAUST PIPE (NAS)

€ 6.50

2-3

1418138A00H17
ref: 2-3
E17,E77 (SWEDEN)

GASKET,EXHAUST PIPE (NA)

€ 6.50

2-4

1418145C00
ref: 2-4
E18

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

1418238A01
ref: 3

CLAMP,EXHAUST PIPE

€ 21.00

4

0910408026
ref: 4

BOLT(8X35)

€ 4.00

5-1

1477124B00
ref: 5-1
MODEL G/J/K/L/M

CONNECTOR,MUFFLER

€ 23.00

5-2

1477124B01
ref: 5-2
MODEL R

CONNECTOR,MUFFLER

€ 23.00

5-3

1477124B00H17
ref: 5-3
E17,E18,E77 (SWEDEN)

CONNECTOR,MUFFLER (NA)

€ 23.00

6

1446924B00
ref: 6

CLAMP,MUFFLER CONNECTOR

€ 16.00

7-1

0151708407
ref: 7-1
MODEL G/J/K/L/M

BOLT 8X40

€ 3.50

7-2

0155008403
ref: 7-2
MODEL R

BOLT

€ 3.50

8-1

1431024B11
ref: 8-1

BODY,MUFFLER

€ 1,054.00

8-2

1431024B21
ref: 8-2
E18

BODY,MUFFLER

€ 458.50

9

1478024B01
ref: 9

COVER,EXHAUST PIPE

€ 42.50

10-1

1478924B01
ref: 10-1
MODEL G/J/K/L/M

GASKET (MCA)

€ 4.00

10-2

1478924B10
ref: 10-2
MODEL R

GASKET (NAS)

€ 4.00

10-3

1478924B10
ref: 10-3
E18

GASKET (NAS)

€ 4.00

11

0211206107
ref: 11

SCREW

€ 1.50

12

1479024B00
ref: 12

COVER,MUFFLER

€ 90.50

13

1478524B00
ref: 13

CLAMP,MUFFLER COVER

€ 4.50

14-1

0151706207
ref: 14-1
MODEL G/J/K/L/M

BOLT 6X20

€ 2.50

14-2

0155006207
ref: 14-2
MODEL R

BOLT

€ 2.50

15

1441024B00019
ref: 15

STAY,MUFFLER SUPPORT

€ 64.00

16

0910308102
ref: 16

BOLT

€ 4.00

17

0918008001
ref: 17

SPACER (8.8X12X11)

€ 2.00

18

0932012041
ref: 18

CUSHION

€ 4.50

19

0916008004
ref: 19
09160-08005

WASHER

€ 2.50

20-1

0831626087
ref: 20-1
MODEL G/J/K/L/M

NUT

€ 3.00

20-2

0831620087
ref: 20-2
MODEL R

NUT

€ 3.00

21-1

0831626083
ref: 21-1
MODEL G/J/K/L/M

NUT

€ 1.50

21-2

0831620087
ref: 21-2
MODEL R

NUT

€ 3.00
