CRANKCASE
LS650P 1990 (L) (E24)

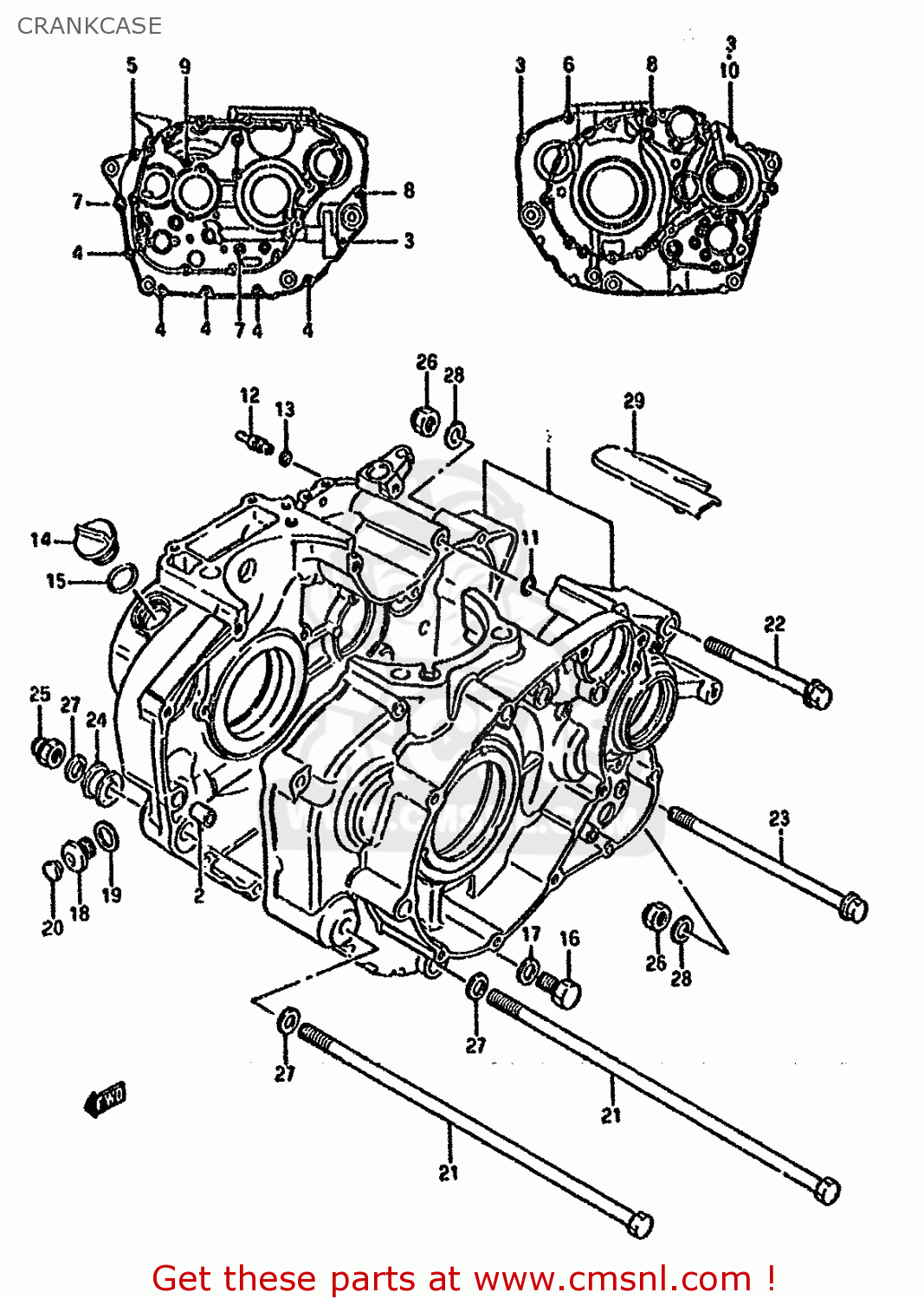

Crankcase diagram LS650P 1990 (L) (E24)
CRANKCASE LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1130124812
ref: 1
CRANKCASE SET
€ 1,352.00
2
0920611005
ref: 2
PIN (11X20)(SUS)
€ 6.50
3
0154706407
ref: 3
BOLT
€ 2.50
4
0154706457
ref: 4
BOLT
€ 2.50
5
0154706557
ref: 5
BOLT
€ 2.50
6
0154706607
ref: 6
BOLT
€ 2.50
7
0154706657
ref: 7
BOLT
€ 2.00
8
0154706707
ref: 8
BOLT
€ 2.50
9
0154706757
ref: 9
BOLT
€ 2.50
10
0916806023
ref: 10
GASKET(5.8X13X1.2) (NAS)
€ 2.00
11
0928010013
ref: 11
O RING(D:2.4,ID:9.6)
€ 5.50
12
0949336004
ref: 12
JET,OIL GALLERY(18)
€ 8.00
13
0928004004
ref: 13
O RING(D:1.2,ID:4)
€ 2.00
14
0925920007
ref: 14
09259-20009
PLUG(20X10)
€ 6.50
15
0928017003
ref: 15
O RING(D:3.1,ID:16.8)
€ 2.00
16-1
0110712208
ref: 16-1
MODEL G/J/K/L/M
BOLT
€ 3.00
16-2
0150012203
ref: 16-2
MODEL R
BOLT
€ 3.00
17
0916812002
ref: 17
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
18
0924814005
ref: 18
PLUG,14X12
€ 5.00
19
0916814002
ref: 19
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
20
0925008014
ref: 20
CAP(OD:12)
€ 3.50
21
0910410034
ref: 21
BOLT(10X323)
€ 16.50
22
0910310087
ref: 22
BOLT(10X105)
€ 6.50
23
0910310053
ref: 23
BOLT(10X180)
€ 7.50
24
1161038400
ref: 24
SPACER,ENGINE MOUNT(L20)
€ 9.00
25
0915910064
ref: 25
NUT
€ 8.50
26
0915910047
ref: 26
NUT
€ 7.50
27
0832201107
ref: 27
WASHER
€ 2.50
28-1
0832211104
ref: 28-1
MODEL G/J/K/L/M
WASHER 10MM
€ 2.50
28-2
0832201103
ref: 28-2
MODEL R
WASHER
€ 2.50
29
1138424B00
ref: 29
MODEL J/K/L/M/R
COVER,CRANKCASE START
€ 18.00
