CRANK BALANCER

LS650P 1990 (L) (E24)

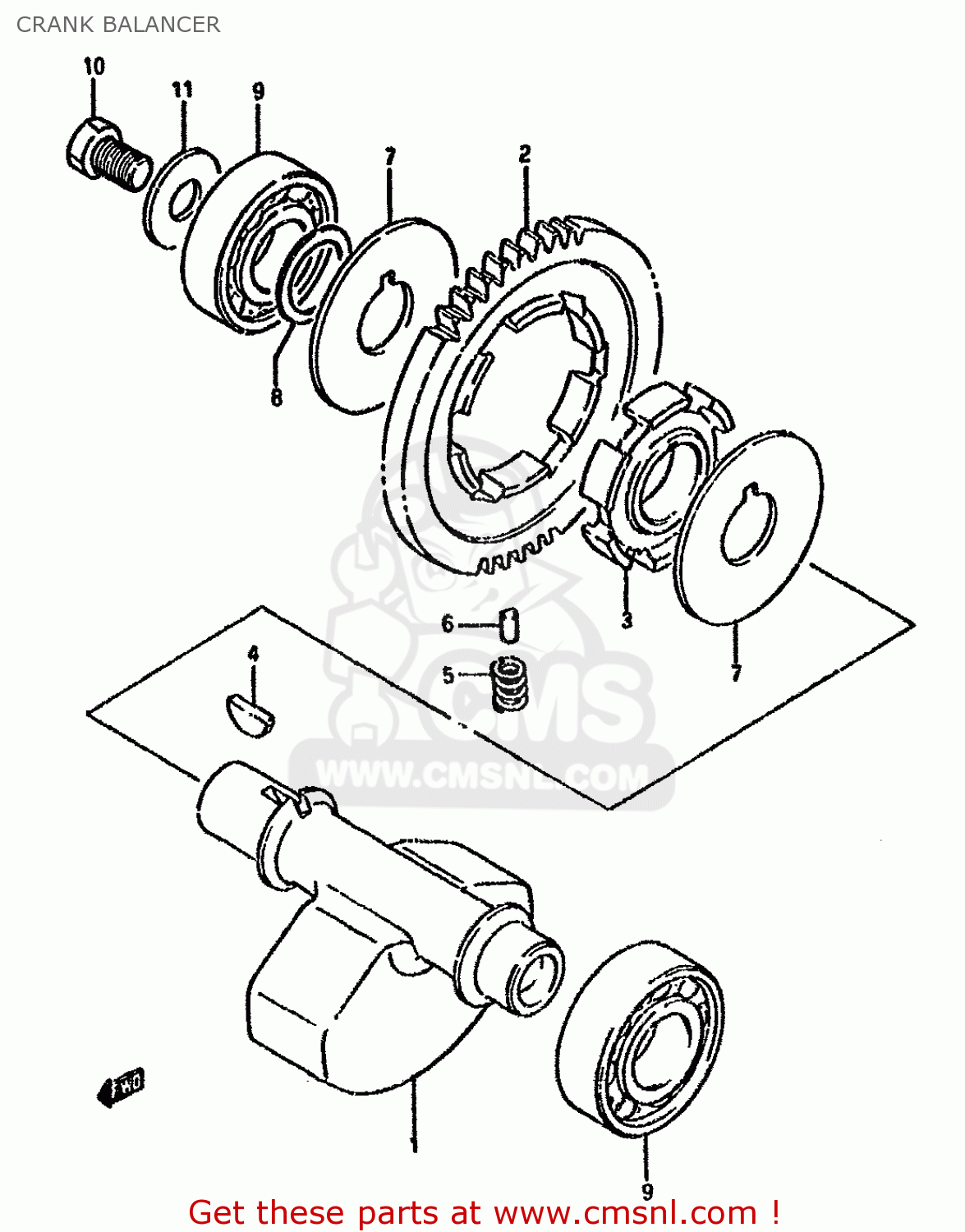

Crank balancer diagram LS650P 1990 (L) (E24)

CRANK BALANCER LS650P 1990 (L) (E24)

CRANK BALANCER LS650P 1990 (L) (E24)

prices are in EUR

ref

part #

description

quantity

1-1

1265124B00
ref: 1-1
MODEL G/J/K/L/M

BALANCER,CRANKSHAFT

€ 103.50

1-2

1265124B01
ref: 1-2
MODEL R

SHAFT,CRANK BALANCER

€ 103.50

2-1

1266624B00
ref: 2-1
MODEL G/J/K/L/M

GEAR,CRANK BALANCER

€ 99.50

2-2

1266624B01
ref: 2-2
MODEL R

GEAR,CRANK BALANCER DRIVEN

€ 99.50

3

1266924B00
ref: 3

RACE,CRANK BALANCER DRIVEN GEAR

€ 34.00

4

0834131049
ref: 4

KEY 4MM

€ 3.50

5

0944009031
ref: 5

SPRING

€ 3.00

6

0920204013
ref: 6

PIN

€ 3.00

7

0916620010
ref: 7

WASHER

€ 4.00

8

0822120285
ref: 8

THRUST WASHER

€ 2.50

9

0926220089
ref: 9

BEARING(20X47X14)

€ 17.50

10-1

0110710168
ref: 10-1
MODEL G/J/K/L/M

BOLT

€ 2.50

10-2

0150010163
ref: 10-2
MODEL R

BOLT

€ 2.50

11

0916010099
ref: 11

WASHER(10X28X2.2)

€ 2.50
