CRANKSHAFT
LS650P 1990 (L) (E24)

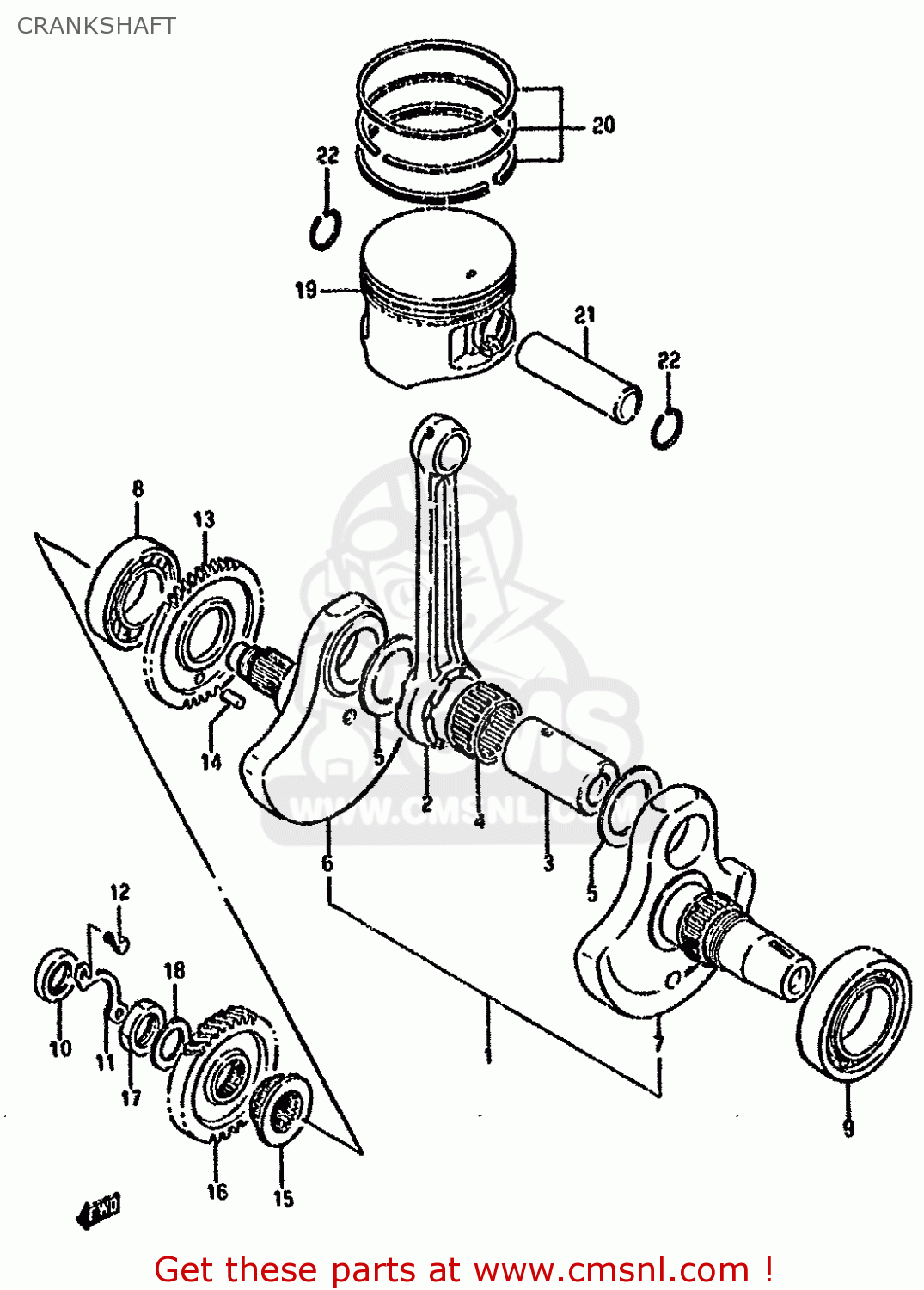

Crankshaft diagram LS650P 1990 (L) (E24)
CRANKSHAFT LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1220024B05
ref: 1
CRANKSHAFT ASSY
€ 972.00
2
1216124B010C0
ref: 2
ROD,CONNECTING
€ 109.50
3
1221024B010A0
ref: 3
PIN,CRANK
€ 47.50
4
09263370040B0
ref: 4
09263-37002
BEARING(37X47X25)
€ 33.00
5
0916037006
ref: 5
WASHER(37X55X1)
€ 8.50
6
1222124B02
ref: 6
CRANKSHAFT,R
€ 331.00
7
1226124B02
ref: 7
CRANKSHAFT,L
€ 198.50
8
0926235038
ref: 8
BEARING(35X72X17)
€ 38.00
9
0926440002
ref: 9
BEARING(40X80X18)
€ 93.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
€ 8.50
11
1254824B00
ref: 11
RETAINER,CRANKSHAFT OIL SEAL,R
€ 2.50
12-1
0110405088
ref: 12-1
MODEL G/J/K/L/M
BOLT 5X16
€ 2.00
12-2
0150005083
ref: 12-2
MODEL R
BOLT
€ 2.00
13
1266124B00
ref: 13
NT:47
GEAR,CRANK BALANCER DRIVE
€ 106.00
14
0422108149
ref: 14
PIN
€ 2.50
15
1273124B00
ref: 15
NT:19
SPROCKET,CAM CHAIN DRIVE
€ 44.50
16-1
2111124B00
ref: 16-1
MODEL G/J/K/L LS650P
GEAR,PRIMARY DRIVE
€ 83.50
16-2
2111124B10
ref: 16-2
MODEL M/R E2,E15,E16
GEAR,PRIMARY DRIVE
€ 77.00
17
0914020008
ref: 17
NUT (20MM)
€ 4.00
18
0916420003
ref: 18
WASHER
€ 2.50
19-1
1211124B01
ref: 19-1
PISTON (94.00MM)
€ 83.00
19-2
1211124B01050
ref: 19-2
OPT
PISTON
€ 122.00
19-3
1211124B01100
ref: 19-3
OPT
PISTON
€ 138.00
20-1
1214014A31
ref: 20-1
RING SET,PISTON
€ 51.00
20-2
1214014A31050
ref: 20-2
OPT
RING SET,PISTON (OS:0.5)
€ 61.00
20-3
1214014A31100
ref: 20-3
OPT
RING SET,PISTON
€ 33.00
21
1215124B00
ref: 21
PIN,PISTON
€ 22.50
22
0938123003
ref: 22
CIRCLIP
€ 1.50
