SPEEDOMETER (MODEL R)
LS650P 1990 (L) (E24)

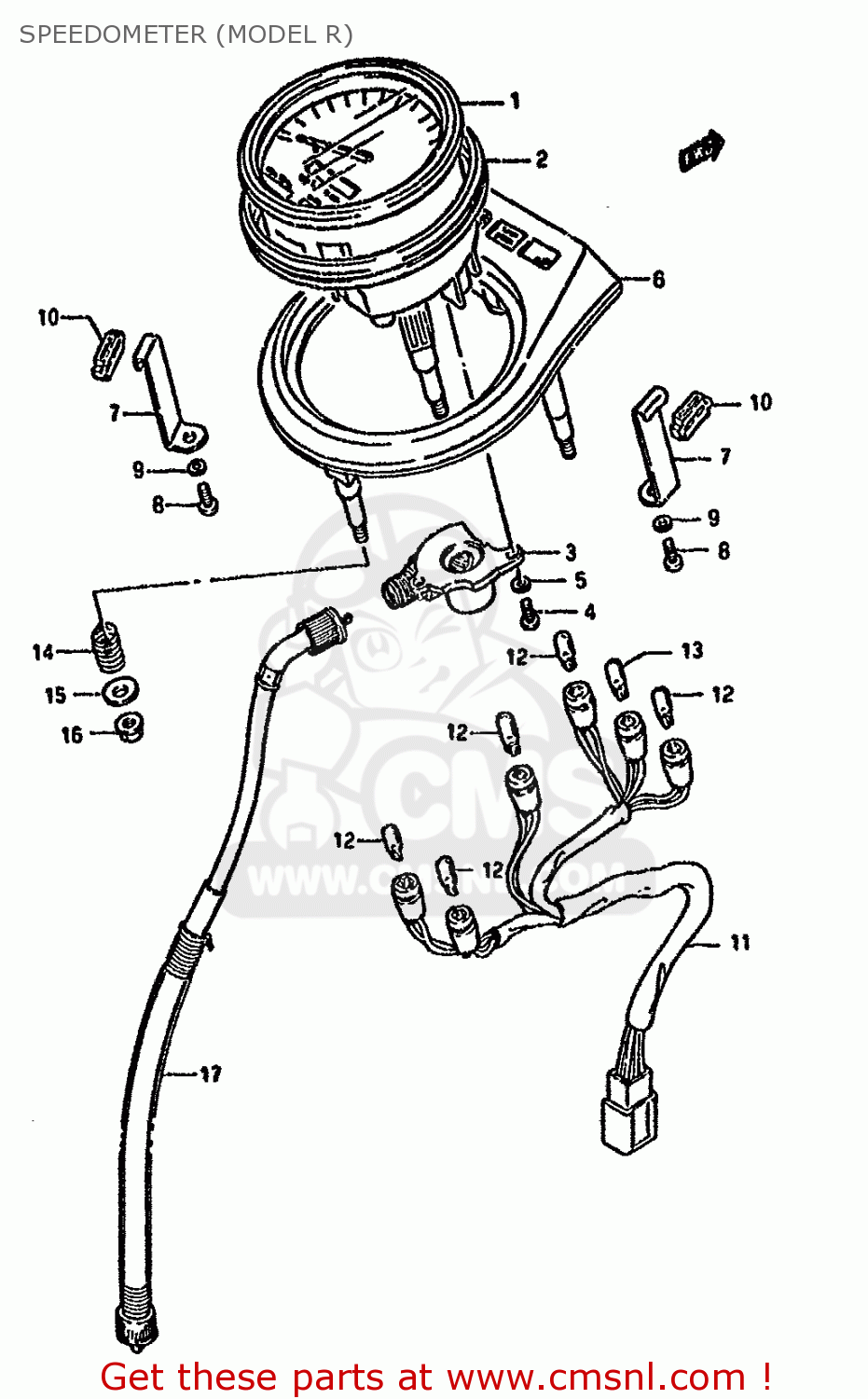

Speedometer (model r) diagram LS650P 1990 (L) (E24)
SPEEDOMETER (MODEL R) LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411024C20
ref: 1-1
SPEEDOMETER(MILE/KILO)
€ 254.50
1-2
3411024B40
ref: 1-2
E4,E15,E17,E18,E22,E
SPEEDOMETER(KILO)
€ 262.50
2
3428824B80
ref: 2
CUSHION,METER
€ 12.50
3
3413133450
ref: 3
GEAR BOX,SPEEDOMETER
€ 134.00
4
0211204087
ref: 4
SCREW
€ 1.50
5
0832121047
ref: 5
WASHER,LOCK 4M
€ 2.00
6-1
3415124B80
ref: 6-1
HOOD,METER
€ 97.50
6-2
3415124B50
ref: 6-2
E4,E15,E17,E18,E22,E
HOOD,METER
€ 95.50
7
3411124B80
ref: 7
BRACKET,METER
€ 14.00
8
0211204087
ref: 8
SCREW
€ 1.50
9
0832121047
ref: 9
WASHER,LOCK 4M
€ 2.00
10
3418924B80
ref: 10
CUSHION
€ 4.50
11
3417024B20
ref: 11
SOCKET,METER
€ 61.00
12
0947112103
ref: 12
BULB(12V3W,T6.5)
€ 2.50
13
0947112108
ref: 13
BULB(12V1.7W,T6.5)
€ 2.00
14
0944011022
ref: 14
SPRING
€ 2.00
15
0916005036
ref: 15
WASHER (5.5X14X1.2)
€ 2.00
16
0836115053
ref: 16
NUT
€ 2.50
17
3491024B00
ref: 17
CABLE ASSY,SPEEDOMETER
€ 80.00
15
0916005036
ref: 15
WASHER (5.5X14X1.2)
€ 2.00
16-1
0831012055
ref: 16-1
MODEL G/J
NUT ,5MM
€ 2.50
16-2
0836115053
ref: 16-2
MODEL K/L/M
NUT
€ 2.50
17
0832121055
ref: 17
MODEL G/J
WASHER,LOCK
€ 3.00
18
3491024B00
ref: 18
CABLE ASSY,SPEEDOMETER
€ 80.00
