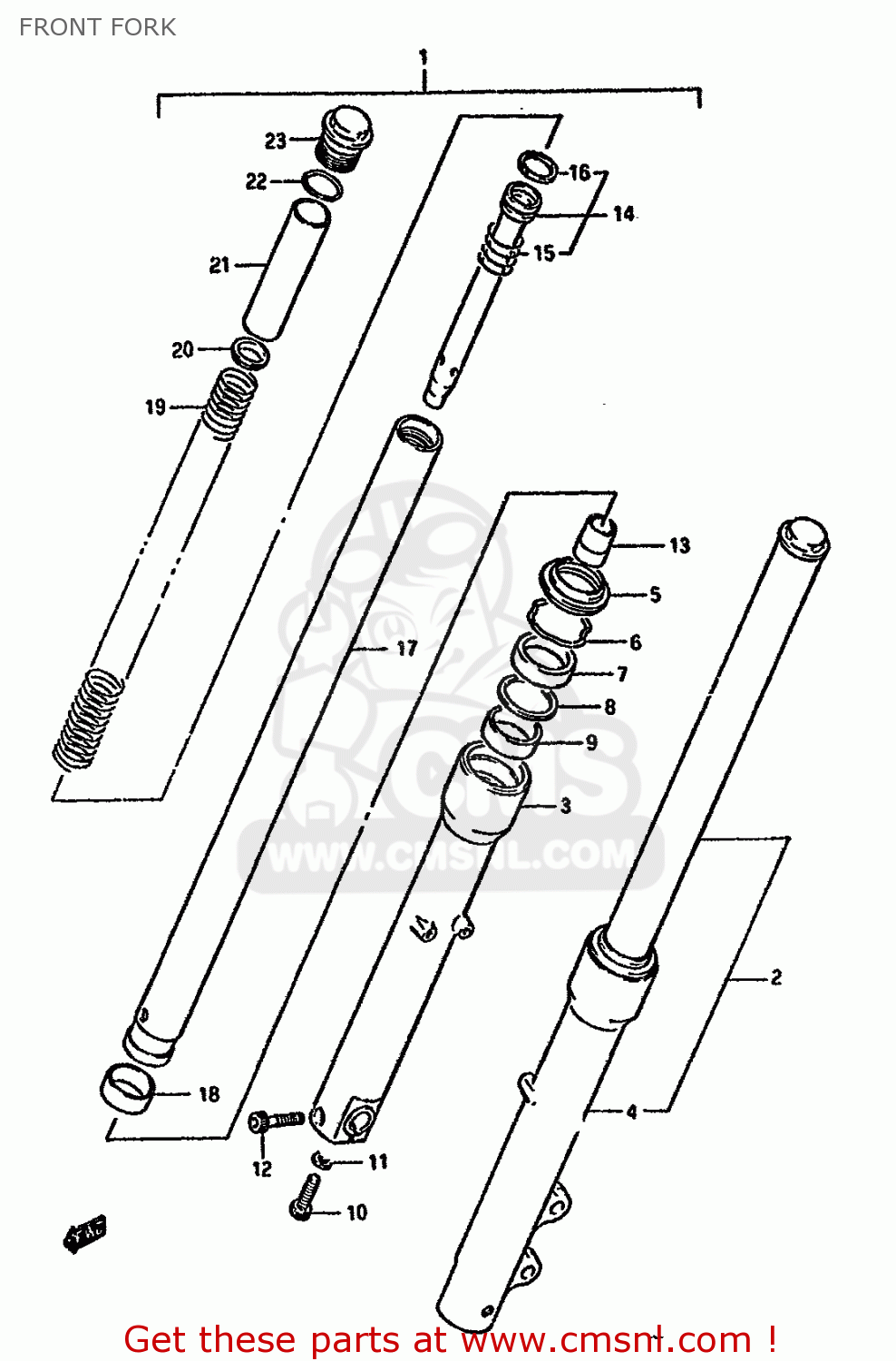

FRONT FORK

ref

part #

description

quantity

1-1

5110324B00
ref: 1-1
MODEL G

DAMPER ASSEMBLY,RIGHT

€ 454.50

1-2

5110324B01
ref: 1-2
MODEL J/K/L/M/R

DAMPER ASSY,FR FORK,R

€ 454.50

2-1

5110424B00
ref: 2-1
MODEL G

DAMPER ASSEMBLY,LEFT

€ 454.50

2-2

5110424B01
ref: 2-2
MODEL J/K/L/M/R

DAMPER ASSY,FR FORK,L

€ 454.50

3

5113024B00
ref: 3

TUBE,OUTER,R

€ 275.00

4

5114024B00
ref: 4

TUBE,OUTER,L

€ 275.00

5

5117320A00
ref: 5

SEAL,DUST

€ 11.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5115320A00
ref: 7

SEAL,OIL

€ 13.50

8

5115814100
ref: 8

WASHER(40X50X2.3)

€ 2.50

9-1

5116714100
ref: 9-1
MODEL G/J/K

METAL,SLIDE

€ 7.00

9-2

5116713A00
ref: 9-2
MODEL L/M/R

METAL,SLIDE

€ 7.00

10

5114716510
ref: 10

BOLT,FORK CYLINDER(10X25)

€ 3.50

11

5114841310
ref: 11

GASKET (NAS)

€ 2.50

12

0711008388
ref: 12

BOLT

€ 3.50

13-1

5119524B00
ref: 13-1
MODEL G

PIECE,OIL LOCK

€ 0.00

13-2

5119524B01
ref: 13-2
MODEL J/K/L/M/R

PIECE,OIL LOCK

€ 9.50

14-1

5114624B00
ref: 14-1
MODEL G

CYLINDER

€ 0.00

14-2

5114624B01
ref: 14-2
MODEL J/K/L/M/R

CYLINDER

€ 53.00

15

5117749440
ref: 15

SPRING,REBOUND

€ 6.50

16

5119605A00
ref: 16

RING,PISTON

€ 7.50

17-1

5112024B00
ref: 17-1
MODEL G

TUBE,FORK,INNER

€ 248.50

17-2

5112024B01
ref: 17-2
MODEL J/K/L/M/R

TUBE,INNER

€ 301.50

18

5112114100
ref: 18

PISTON

€ 10.50

19

5117124B00
ref: 19

SPRING

€ 55.00

20

5117224A00
ref: 20

GUIDE,SPRING

€ 3.00

21-1

5117624B00
ref: 21-1
MODEL G

SPACER

€ 0.00

21-2

5117624B01
ref: 21-2
MODEL J/K/L/M/R

SPACER,SPRING

€ 6.50

22

5111740300
ref: 22

O RING

€ 2.50

23

5135124B00
ref: 23

CAP

€ 46.00
