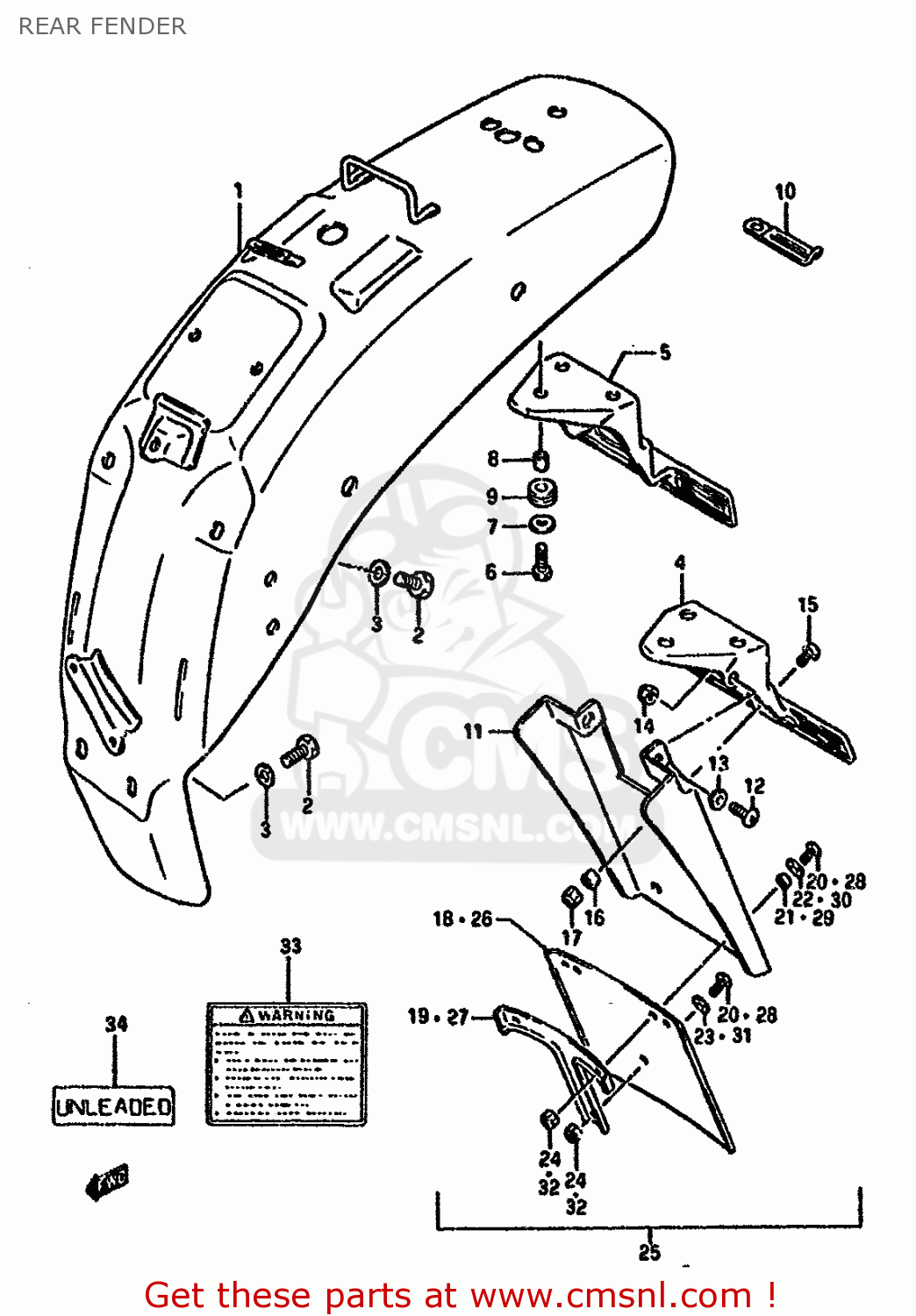

REAR FENDER

ref

part #

description

quantity

1-1

6311024B0313Z
ref: 1-1
MODEL G

FENDER,REAR

€ 410.50

1-2

6311024B0300J
ref: 1-2
MODEL G

FENDER,REAR

€ 410.50

1-3

6311024B1024V
ref: 1-3
MODEL J/K/L

FENDER,REAR

€ 406.00

1-4

6311024B1033D
ref: 1-4
MODEL J/K/L

FENDER,REAR

€ 406.00

1-5

6311024B1013Z
ref: 1-5
MODEL M

FENDER,REAR (BLACK)

€ 406.00

1-6

6311024B1033H
ref: 1-6
MODEL M

FENDER COMP,RR

€ 406.00

1-7

6311024B1022U
ref: 1-7
MODEL R

FENDER COMP,REAR

€ 435.00

1-8

6311024B1033J
ref: 1-8
MODEL R

FENDER COMP,REAR

€ 123.00

2-1

0910008184
ref: 2-1
MODEL G/J/K/L/M

BOLT(8X25)

€ 2.50

2-2

0910308152
ref: 2-2
MODEL R

BOLT 8X25

€ 1.50

3

0832211086
ref: 3
MODEL G/J/K/L/M

WASHER 8MM

€ 1.50

4

3591624B12
ref: 4
MODEL G/J/K/M/R E2,E

BRACKET,LICENSE PLATE

€ 48.00

5

3591624B01
ref: 5
MODEL G E24,MODEL K/

BRACKET,LICENSE PLATE

€ 47.00

6-1

0110706206
ref: 6-1
MODEL G/J/K/L/M

BOLT,M6X1X20

€ 2.00

6-2

0911606065
ref: 6-2
MODEL R

BOLT

€ 2.00

7

0916006057
ref: 7
MODEL G/J/K/L/M

WASHER

€ 2.00

8

0918006011
ref: 8

SPACER (6.1X9X9)

€ 2.00

9

0932009016
ref: 9

CUSHION

€ 2.50

10

0940406402
ref: 10

CLAMP

€ 2.50

11-1

6331138A00
ref: 11-1
MODEL G/J/K/L/M E16,

EXTENSION,REAR

€ 23.50

11-2

6331138A10
ref: 11-2
MODEL G E15

EXTENSION, REAR FENDER

€ 17.50

11-3

6331138A20
ref: 11-3
MODEL R E15,E17,E18,

EXTENSION,RR FENDER

€ 23.50

12

0214206164
ref: 12
E15,E16,E17,E18,E22,

SCREW

€ 2.50

13

0916906037
ref: 13
E15,E16,E17,E18,E22,

WASHER

€ 6.50

14

0831921065
ref: 14
E15,E16,E17,E18,E22,

NUT

€ 2.50

15

0211206208
ref: 15
E15,E16,E17,E18,E22,

SCREW

€ 2.00

16

0918006092
ref: 16
E15,E16,E17,E18,E22,

SPACER(6.2X8.3X6.1)

€ 4.00

17

0831931065
ref: 17
E15,E16,E17,E18,E22,

NUT

€ 2.50

18

6333243520
ref: 18
E15

MUD FLAP, REAR FENDER

€ 12.50

19

6331238A00
ref: 19
E15

PLATE, MUD FLAP

€ 0.00

20

0214205124
ref: 20
E15

SCREW, FRONT & REAR

€ 1.50

21

0918005015
ref: 21
E15

SPACER (5.5X8X4)

€ 3.00

22

0832221055
ref: 22
E15

WASHER,5MM

€ 2.50

23

0916005031
ref: 23
E15

WASHER

€ 1.50

24

0831921055
ref: 24
E15

NUT 8MM

€ 1.50

25

6339024B00
ref: 25
E77 OPT

MUDFLAP SET,REAR

€ 16.00

26

6333243520
ref: 26
E77 OPT

MUD FLAP, REAR FENDER

€ 12.50

27

6331238A00
ref: 27
E77 OPT

PLATE, MUD FLAP

€ 0.00

28

0214205124
ref: 28
E77 OPT

SCREW, FRONT & REAR

€ 1.50

29

0918005015
ref: 29
E77 OPT

SPACER (5.5X8X4)

€ 3.00

30

0832221055
ref: 30
E77 OPT

WASHER,5MM

€ 2.50

31

0916005031
ref: 31
E77 OPT

WASHER

€ 1.50

32

0831921055
ref: 32
E77 OPT

NUT 8MM

€ 1.50

33-1

6831940C00
ref: 33-1

LABEL

€ 8.00

33-2

6831940C20
ref: 33-2
E18,E22,E39

LABEL, WARNING SAFETY

€ 8.00

33-3

6831940C30
ref: 33-3
E4,E21

LABEL, WARNING SAFETY

€ 8.50

33-4

6831940C40
ref: 33-4
E34

LABEL, WARNING SAFETY

€ 8.00

33-5

6831940C51
ref: 33-5
E53

LABEL

€ 8.00

34

6862317D00
ref: 34
E2

LABEL,CAUTION

€ 4.00

35-1

6833224B40
ref: 35-1
WITH OUT DRAWING

LABEL,TIRE AIR PRESSURE

€ 4.50

35-2

6833224B50
ref: 35-2
E4,WITH OUT DRAWING

LABEL (TIRE AIR PRESSURE)

€ 4.50

35-3

6833224B60
ref: 35-3
E22,WITH OUT DRAWING

LABEL,TIRE AIR PRESSURE

€ 0.00

36-1

9901124B2001U
ref: 36-1
MODEL G

MANUAL,OWNER'S

€ 15.50

36-2

9901124B20009
ref: 36-2
MODEL G E15,E16

MANUAL,OWNER'S

€ 0.00

36-3

9901124B22042
ref: 36-3
MODEL J

MANUAL,OWNER'S

€ 15.50

36-4

9901124B23042
ref: 36-4
MODEL K

MANUAL,OWNER'S

€ 15.50

36-5

9901124B2401B
ref: 36-5
MODEL L

MANUAL,OWNER'S

€ 0.00

36-6

9901124B2501B
ref: 36-6
MODEL M E1

OWNER'S MANUAL LS650 M

€ 15.50

36-7

9901124B2501S
ref: 36-7
MODEL M E53

MANUAL,OWNER'S

€ 0.00

36-8

9901124B25011
ref: 36-8
MODEL M E2,E15,E16,E

MANUAL,OWNER'S

€ 18.00

36-9

9901124B25022
ref: 36-9
MODEL M E4,E18,E22,E

OWNER'S MANUAL LS650

€ 15.50

36-10

9901124B28011
ref: 36-10
MODEL R WITH OUT DRA

MANUAL,OWNER'S

€ 0.00
