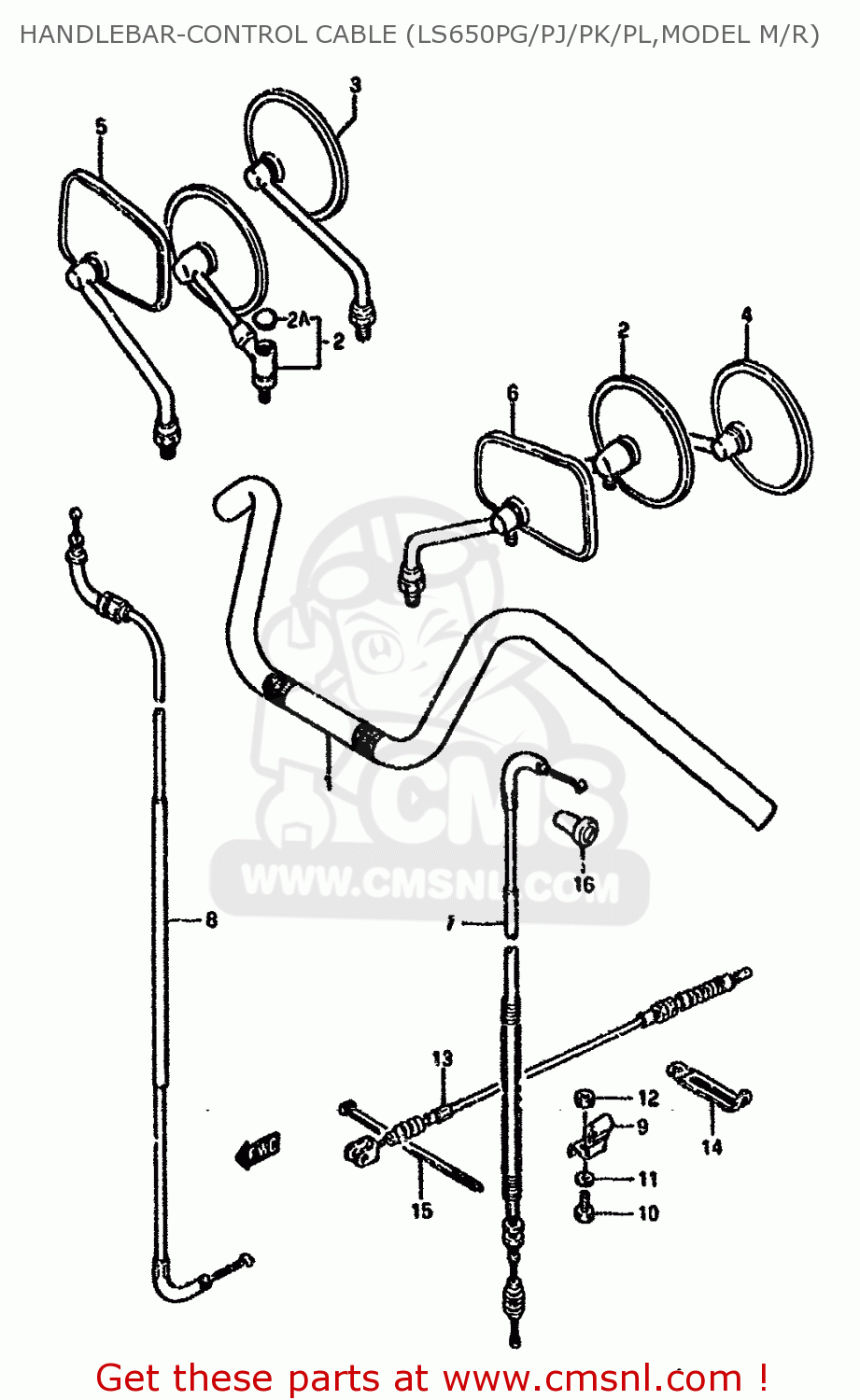

HANDLEBAR-CONTROL CABLE (LS650PG/PJ/PK/PL,MODEL M/R)

ref

part #

description

quantity

1-1

5611024B00
ref: 1-1
MODEL G, 56110-24B20

HANDLEBAR

€ 205.50

1-2

5611024B20
ref: 1-2
MODEL G/J/K/L/M

HANDLEBAR

€ 205.50

1-3

5611024B40
ref: 1-3
MODEL J/K, 56110-24B

HANDLEBAR

€ 205.50

1-4

5611024B41
ref: 1-4
MODEL R

HANDLEBAR

€ 205.50

2

5650038A60
ref: 2
E2,E4,E17,E21,E22,E3

MIRROR ASSY,RH

€ 297.50

2A

5652428600
ref: 2A

CAP

€ 4.00

3

5650045670
ref: 3
E16,E24

MIRROR ASSY,REAR VIEW RH

€ 47.00

4

5660045670
ref: 4
E16,E24

MIRROR ASSY,REAR VIEW LH

€ 47.00

5

5650024B00
ref: 5
E1,E15,E18,E25,E39

MIRROR ASSEMBLY,REAR VIEW

€ 51.00

6

5660024B00
ref: 6
E1,E15,E18,E25,E39

MIRROR ASSEMBLY,REAR VIEW

€ 189.00

7

5820024B12
ref: 7

CABLE ASSY,CLUTCH

€ 46.50

8

5830024B12
ref: 8

CABLE ASSY,THROTTLE

€ 43.50

9

5862124B00
ref: 9

GUIDE,CABLE

€ 4.50

10-1

0110706165
ref: 10-1
MODEL G/J/K/L/M

BOLT 6X16

€ 2.00

10-2

0157006163
ref: 10-2
MODEL R

BOLT

€ 2.50

11

0832121064
ref: 11
MODEL G/J/K/L/M

WASHER,LOCK

€ 2.00

12-1

0831011065
ref: 12-1
MODEL G/J/K/L/M

NUT

€ 2.00

12-2

0831000063
ref: 12-2
MODEL R

NUT 6MM

€ 2.00

13

5883024B00
ref: 13

CABLE COMP,STOP LAMP SWITCH

€ 24.00

14

0940408405
ref: 14

CLAMP

€ 3.50

15

0940709402
ref: 15

CLAMP

€ 3.00

16

5827331000
ref: 16

BOOT,CLUTCH CABLE

€ 2.50

HANDLEBAR-CONTROL CABLE (LS650PG/PJ/PK/PL,MODEL M/R)

all assemblies
