FRAME

LS650P 1990 (L) (E24)

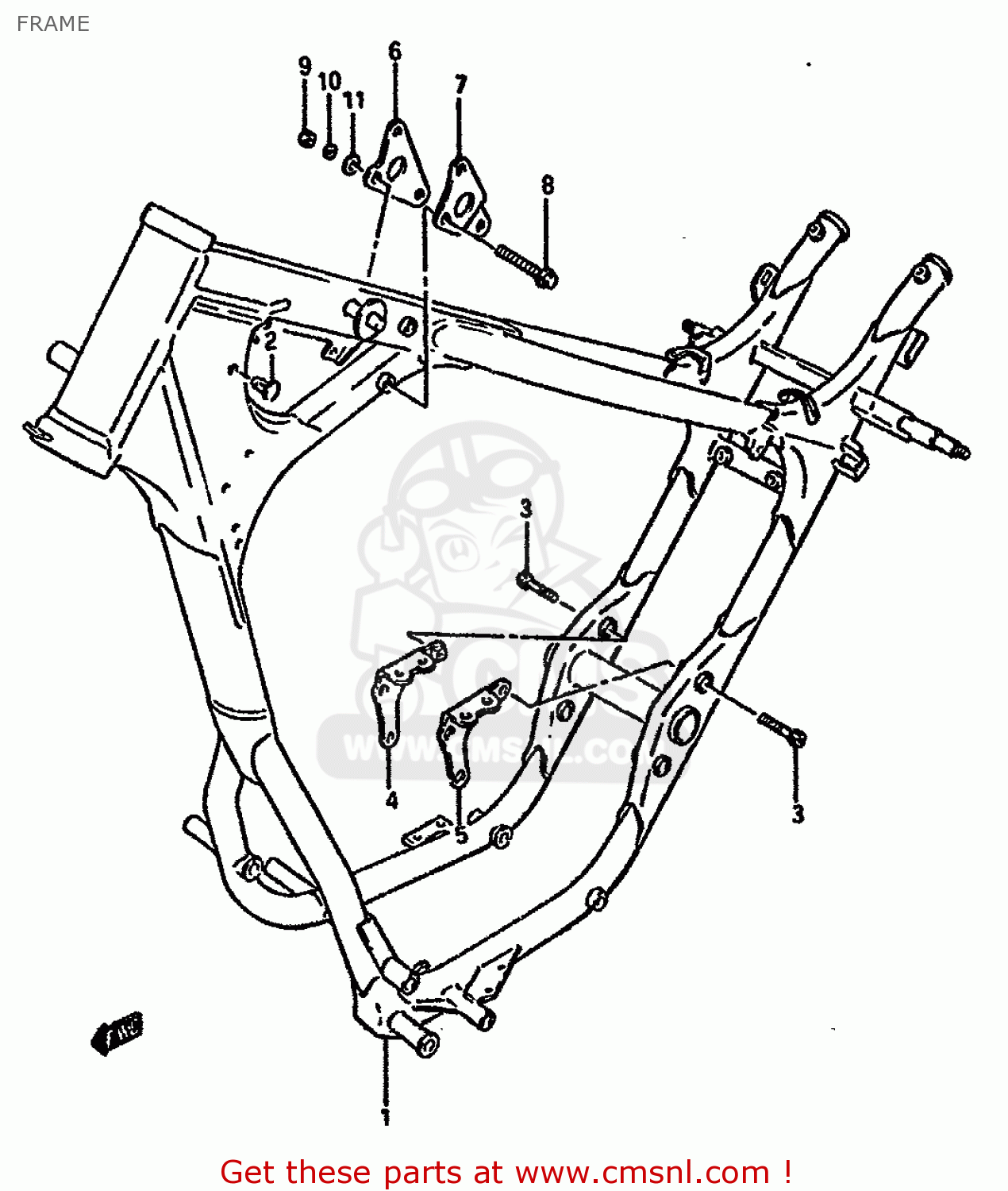

Frame diagram LS650P 1990 (L) (E24)

FRAME LS650P 1990 (L) (E24)

FRAME LS650P 1990 (L) (E24)

prices are in EUR

ref

part #

description

quantity

1-1

4110024B00019
ref: 1-1
MODEL G/J

FRAME

€ 562.50

1-2

4110024B01019
ref: 1-2
MODEL K/L/M/R

FRAME(BLACK)

€ 562.50

2

0940906306
ref: 2

CLIP

€ 2.00

3

0910608074
ref: 3

BOLT(8X40)

€ 3.50

4

4197024B00019
ref: 4

PLATE,ENGINE MOUNT NO.4,R

€ 10.50

5

4198024B00019
ref: 5

PLATE,ENGINE MOUNT NO.4,L

€ 10.50

6

4199124B00019
ref: 6

PLATE,ENGINE MOUNT NO.5,R

€ 7.50

7

4199224B00019
ref: 7

PLATE,ENGINE MOUNT NO.5,L

€ 7.50

8-1

0910308037
ref: 8-1
MODEL G/J/K/L/M

BOLT(8X67)

€ 6.50

8-2

0910308279
ref: 8-2
MODEL R

BOLT(8X72)

€ 4.50

9

0831921086
ref: 9

NUT,T/F SHIFT LEVER

€ 1.50

10

0832121086
ref: 10

WASHER,LOCK,8.

€ 2.50

11

0832211086
ref: 11

WASHER 8MM

€ 1.50
