FRONT BRAKE HOSE

LS650P 1990 (L) (E24)

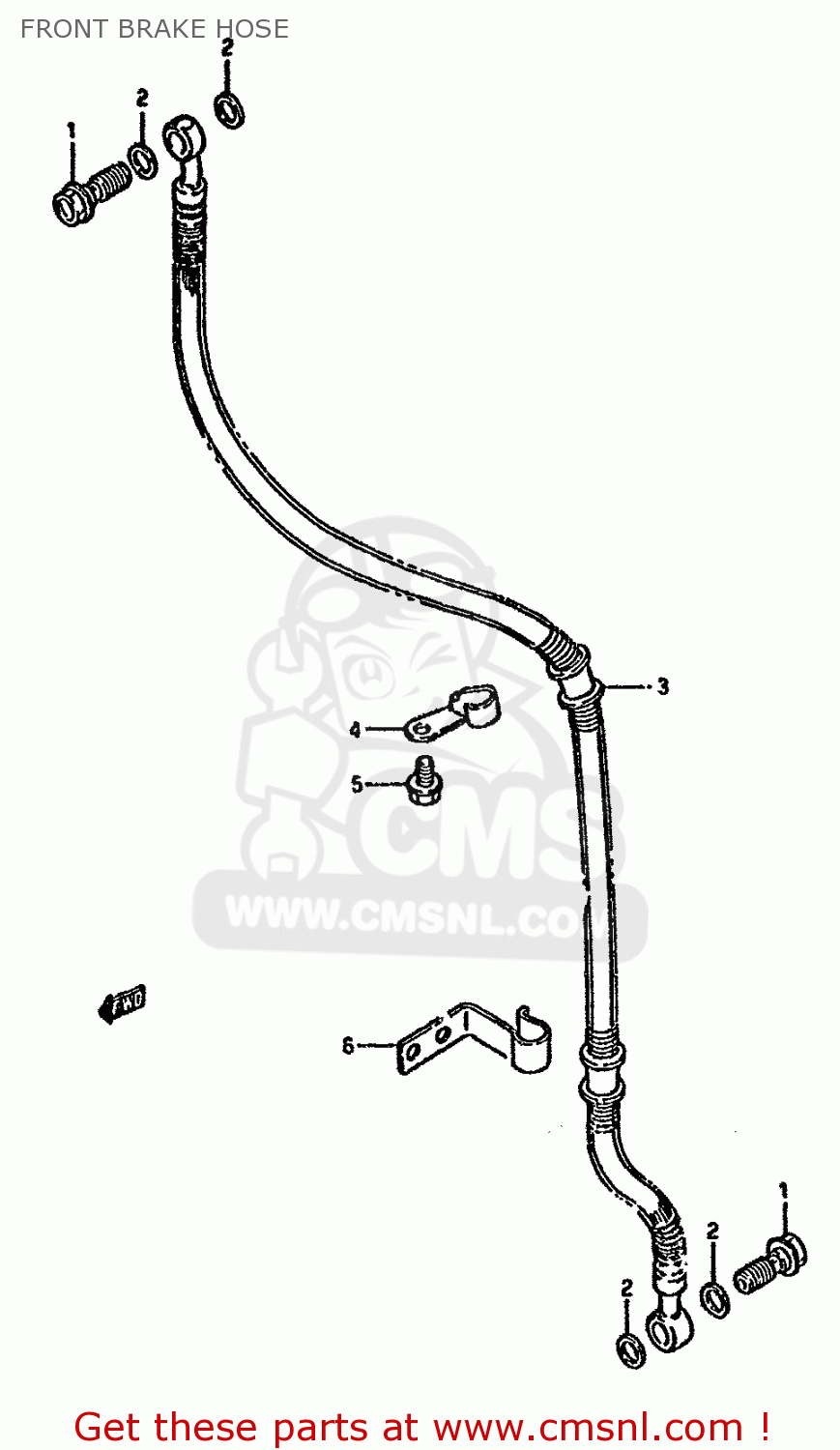

Front brake hose diagram LS650P 1990 (L) (E24)

prices are in EUR

ref

part #

description

quantity

1-1

0936010017
ref: 1-1
MODEL G/J/K/L/M

BOLT UNION

€ 6.50

1-2

0936010039
ref: 1-2
MODEL R

BOLT UNION

€ 6.50

0916110009
ref: 2

WASHER(10X15X1.5)

€ 2.00

3-1

5948024B01
ref: 3-1
LS650FG/FJ/FK

HOSE,FRONT BRAKE

€ 131.50

3-2

5948024B11
ref: 3-2
LS650PG/PJ/PK/PL MOD

HOSE,FR BRAKE

€ 163.00

5954124B00
ref: 4

GUIDE,BRAKE HOSE NO.1

€ 6.50

0154706107
ref: 5

BOLT

€ 1.50

5926824B00
ref: 6

GUIDE,BRAKE HOSE NO.2

€ 7.50
