CLUTCH
LS650P 1990 (L) (E24)

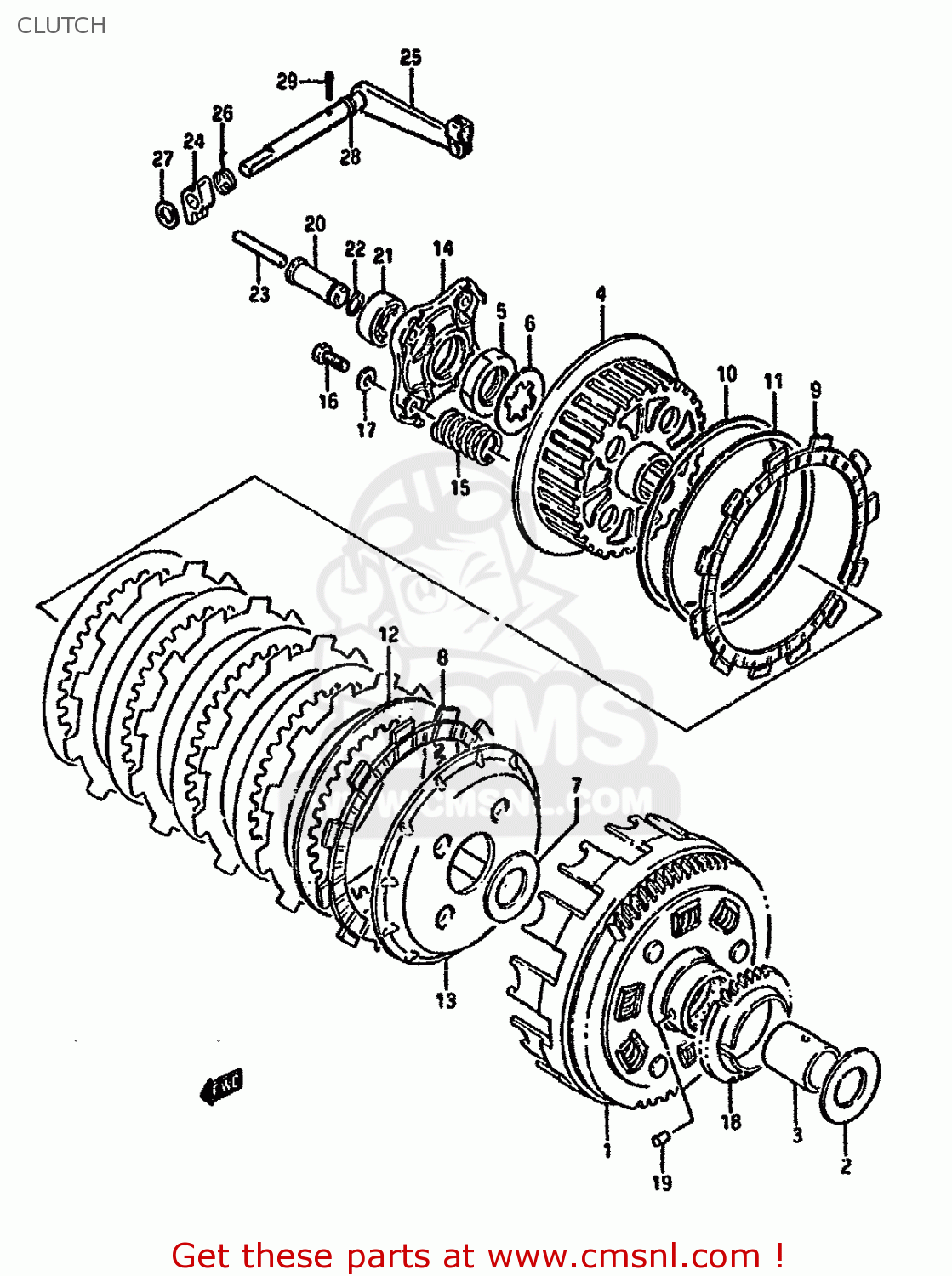

Clutch diagram LS650P 1990 (L) (E24)
CLUTCH LS650P 1990 (L) (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120024B01
ref: 1-1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 263.50
1-2
2120024B11
ref: 1-2
MODEL M/R E2,E15,E16
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.00
2
0821122443
ref: 2
WASHER
€ 3.00
3
0918022023
ref: 3
SPACER(22X28X32.5)
€ 15.50
4
2141137401
ref: 4
HUB,CLUTCH SLEEVE
€ 78.00
5
0914022009
ref: 5
NUT
€ 6.00
6
0916722005
ref: 6
WASHER,LOCK
€ 2.50
7
0821122403
ref: 7
WASHER
€ 4.00
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9
2144237401
ref: 9
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
10
2147137400
ref: 10
SEAT,WAVE WASHER(T:1.4)
€ 8.00
11
0916400004
ref: 11
WASHER
€ 9.00
12
2145114A00
ref: 12
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
13
2146237400
ref: 13
DISC,CLUTCH PRESSURE
€ 41.00
14
2146537400
ref: 14
PLATE,RELEASE
€ 11.50
15
0944020016
ref: 15
SPRING
€ 5.00
16
0110706207
ref: 16
BOLT
€ 2.00
17
0832221067
ref: 17
WASHER
€ 2.00
18
1632124B00
ref: 18
GEAR,ENG OIL PUMP DRIVE
€ 32.50
19
0926106002
ref: 19
PIN(6X6)
€ 1.50
20
2312124B02
ref: 20
PIECE,CLUTCH PUSH
€ 14.00
21
0811060010
ref: 21
BEARING
€ 15.00
22
0928009005
ref: 22
O RING(D:1.9,ID:8.6)
€ 4.00
23-1
2311124B00445
ref: 23-1
ROD,CLUTCH PUSH
€ 5.50
23-2
2311124B00455
ref: 23-2
ROD,CLUTCH PUSH
€ 5.50
23-3
2311124B00465
ref: 23-3
ROD,CLUTCH PUSH
€ 5.50
24
2326324B01
ref: 24
CAM,CLUTCH RELEASE
€ 7.00
25
2327024B03
ref: 25
ARM ASSY,CLUTCH RELEASE
€ 72.00
26
0944813010
ref: 26
SPRING
€ 14.50
27
0821110141
ref: 27
WASHER,THRUST
€ 2.00
28
0928007004
ref: 28
O RING(D:1.9,ID:6.8)
€ 1.50
29
0411120208
ref: 29
PIN 20X20
€ 1.50
