CYLINDER

LS650P 1990 (L) (E24)

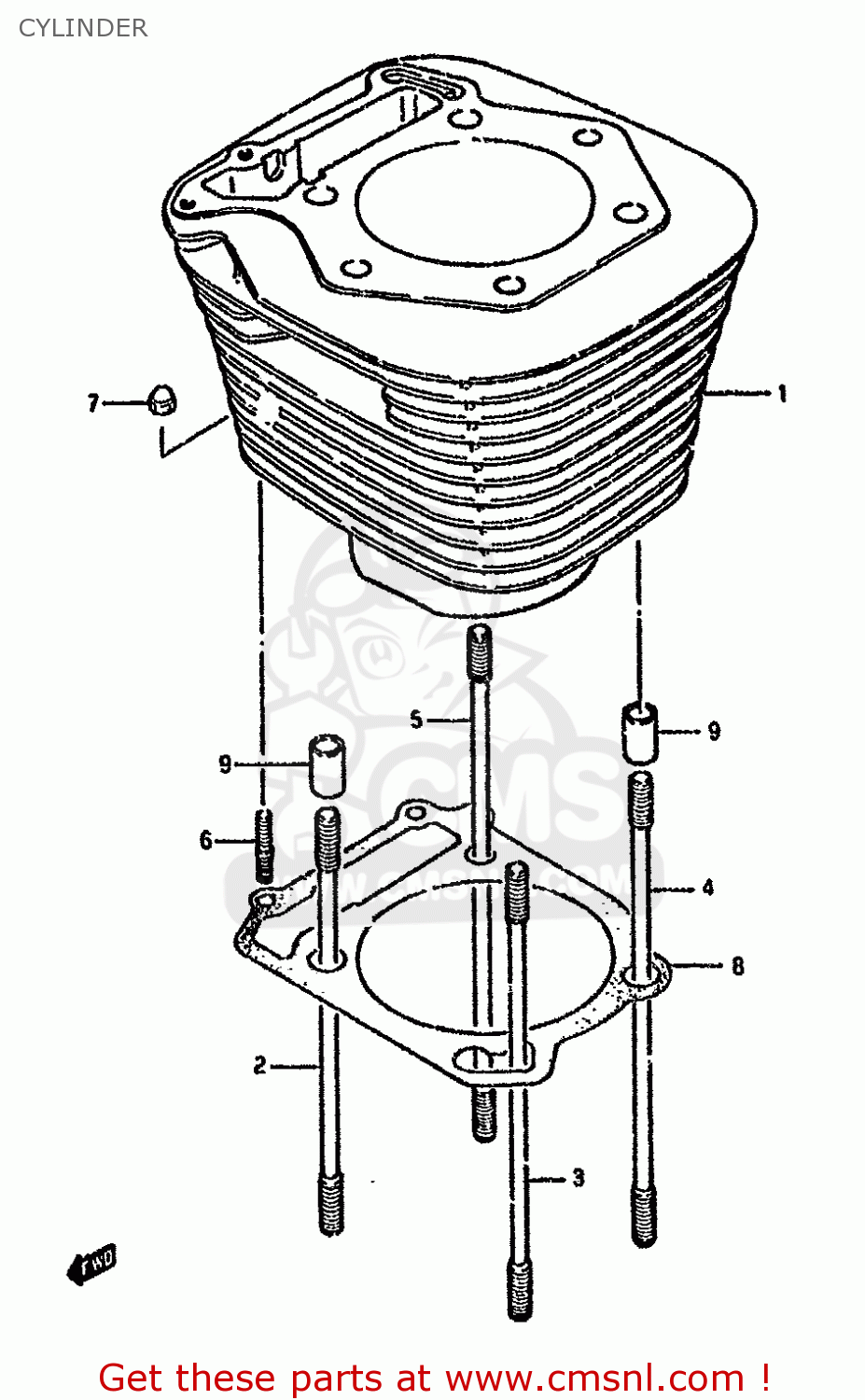

Cylinder diagram LS650P 1990 (L) (E24)

CYLINDER LS650P 1990 (L) (E24)
CYLINDER LS650P 1990 (L) (E24)
CYLINDER LS650P 1990 (L) (E24)
prices are in EUR
ref
part #
description
quantity
1
1121024B07
ref: 1
CYLINDER
€ 606.50
2
0910809001
ref: 2
BOLT,STUD
0910809001
€ 7.50
3
0910809002
ref: 3
BOLT,STUD
0910809002
€ 8.50
4
0910809003
ref: 4
BOLT,STUD
0910809003
€ 9.00
5
0910809004
ref: 5
BOLT,STUD
0910809004
€ 9.00
6
0142106208
ref: 6
STUD 6X20
0142106208
€ 2.50
7
0831310067
ref: 7
NUT
0831310067
€ 2.00
8
1124124B01H17
ref: 8
GASKET,CYLINDER (NAS)
1124124B01H17
€ 10.00
9
0920613001
ref: 9
PIN
0920613001
€ 2.50
