CLUTCH

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

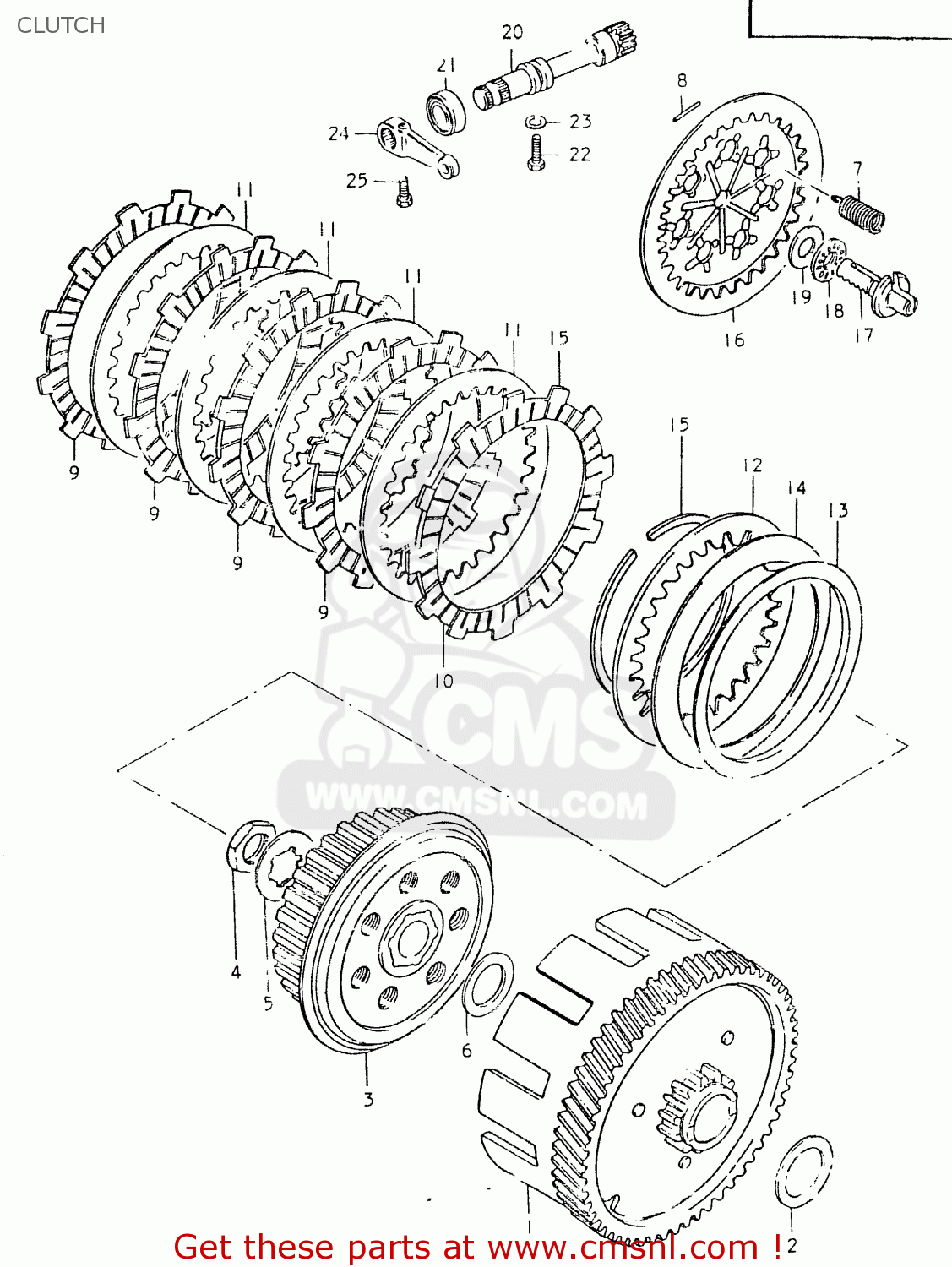

Clutch diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

CLUTCH TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

CLUTCH TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

2120048002
ref: 1
NT:57/17

GEAR ASSEMBLY,PRIMARY DRIVE

€ 178.00

2

0821120323
ref: 2

WASHER

€ 2.50

3

2141048000
ref: 3

HUB,CLUTCH SLEEVE

€ 54.00

4

0914016001
ref: 4

NUT

€ 4.50

5

0916717002
ref: 5

WASHER,LOCK

€ 2.00

6

0821117282
ref: 6

WASHER

€ 3.00

7

0944312018
ref: 7

SPRING

€ 3.00

8

0926102001
ref: 8

PIN(2.5X19.8)

€ 1.50

9

2144128300
ref: 9

PLATE,CLUTCH DRIVE

€ 8.50

10

2144136200
ref: 10

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

11

2145128000
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

12

2145136200
ref: 12

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 5.00

13

2147136200
ref: 13

SEAT,WAVE WASHER

€ 43.50

14

0916498001
ref: 14

WASHER

€ 8.50

15

0938191001
ref: 15

CIRCLIP

€ 10.00

16

2146028000
ref: 16

PLATE,CLUTCH PRESSURE

€ 21.50

17

2316548000
ref: 17

BACK,CLUTCH RELEASE

€ 20.00

18

0926310002
ref: 18

BEARING(10X22X2.8)

€ 8.50

19

0916010021
ref: 19

WASHER(10.1X21.4X0.8)

€ 3.00

20

2326148000
ref: 20

PINION,CLUTCH RELEASE

€ 28.50

21

0928512002
ref: 21

OIL SEAL

€ 7.00

22

0913506009
ref: 22

BOLT(6X12)

€ 2.00

23

0832221068
ref: 23

WASHER

€ 2.00

24

2327129300
ref: 24

ARM,CLUTCH RELEASE

€ 23.50

25

0110706208
ref: 25

BOLT

€ 2.00
