HANDLEBAR

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

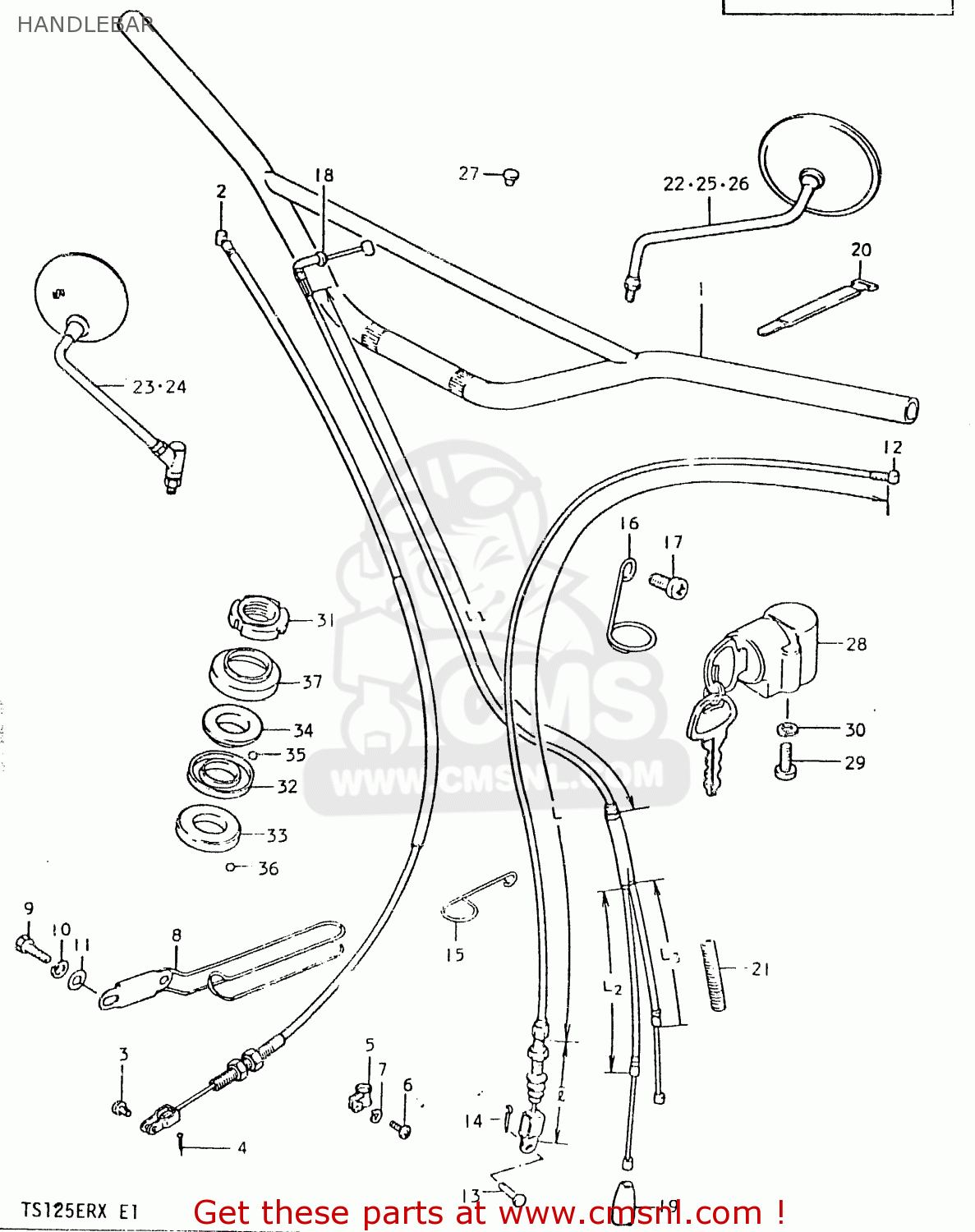

Handlebar diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

HANDLEBAR TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
HANDLEBAR TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
HANDLEBAR TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
5611048500291
ref: 1
MODEL T
HANDLEBAR
€ 59.50
1
561104850008C
ref: 1
MODEL X
HANDLE BAR
561104850008C
€ 87.00
2
5811048500
ref: 2
CABLE,FR BRAKE
5811048500
€ 35.50
3
0920006013
ref: 3
PIN(L:13.5)
0920006013
€ 2.00
4
0411120158
ref: 4
PIN
0411120158
€ 1.50
5
5862148500
ref: 5
GUIDE,CABLE
€ 3.50
6
0211206108
ref: 6
SCREW
0211206108
€ 1.50
7
0832121068
ref: 7
LOCK WASHER
0832121068
€ 2.50
8
5862030501
ref: 8
GUIDE,CABLE
5862030501
€ 16.00
9
0110708128
ref: 9
BOLT 8X12
0110708128
€ 2.50
10
0832121088
ref: 10
LOCK WASHER
0832121088
€ 2.00
11
0832211088
ref: 11
WASHER
0832211088
€ 2.00
12
5820048000
ref: 12
L:960,L:136
CABLE ASSEMBLY,CLUTCH
5820048000
€ 19.00
13
0920006011
ref: 13
PIN(L:15)
0920006011
€ 2.50
14
0411120158
ref: 14
PIN
0411120158
€ 1.50
15
5862648500
ref: 15
CLAMP
5862648500
€ 7.50
16
3494930002
ref: 16
CLIP
3494930002
€ 15.50
17
0211206108
ref: 17
SCREW
0211206108
€ 1.50
18
5830048001
ref: 18
CABLE ASSEMBLY,THROTTLE
5830048001
€ 32.00
19
0928707002
ref: 19
SEAL,DUST(7X18X30)
0928707002
€ 2.50
20
0940711302
ref: 20
CLAMP
€ 6.00
21
5839927100
ref: 21
MODEL T
PROTECTOR,CABLE
5839927100
€ 10.50
22
5650045012
ref: 22
MIRROR ASSEMBLY,RIGHT
5650045012
€ 72.50
22
5660045012
ref: 22
MIRROR ASSEMBLY,LEFT
5660045012
€ 73.00
23
5650045640
ref: 23
TS125ERT E2, TS125ER
MIRROR ASSY,RH
5650045640
€ 119.50
24
5650028600
ref: 24
TS125ERT E4, TS125ER
MIRROR ASSY, REAR VIEW
5650028600
€ 70.00
25
5660045611
ref: 25
TS125ERT E22, TS125E
MIRROR ASSY,LH
€ 73.00
26
5650045602
ref: 26
TS125ERT:E18,E24
MIRROR ASSEMBLY,RIGHT
€ 72.50
26
5660045602
ref: 26
TS125ERX:E16,E18,E24
MIRROR ASSEMBLY,LEFT
5660045602
€ 73.00
27
0925009001
ref: 27
TS125ERT:E15,E17,E22
CAP(OD:14)
0925009001
€ 1.00
28
5191025310
ref: 28
LOCK ASSEMBLY,STEERING
€ 22.50
29
0211205128
ref: 29
SCREW
€ 2.50
30
0832121058
ref: 30
LOCK WASHER
0832121058
€ 2.00
31
5163128000
ref: 31
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
32
5161120002
ref: 32
RACE,STEERING INNER UPR
5161120002
€ 5.50
33
5161133002
ref: 33
LACE,STEERING INNER LWR
5161133002
€ 7.00
34
5162128000
ref: 34
RACE,STEERING OUTER UPR
5162128000
€ 7.00
35
0611106003
ref: 35
BALL
0611106003
€ 1.50
36
0611108003
ref: 36
BALL
0611108003
€ 1.50
37
5164325001
ref: 37
DUST SEAL,STEERING UPR
5164325001
€ 4.50
