CRANKCASE COVER

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

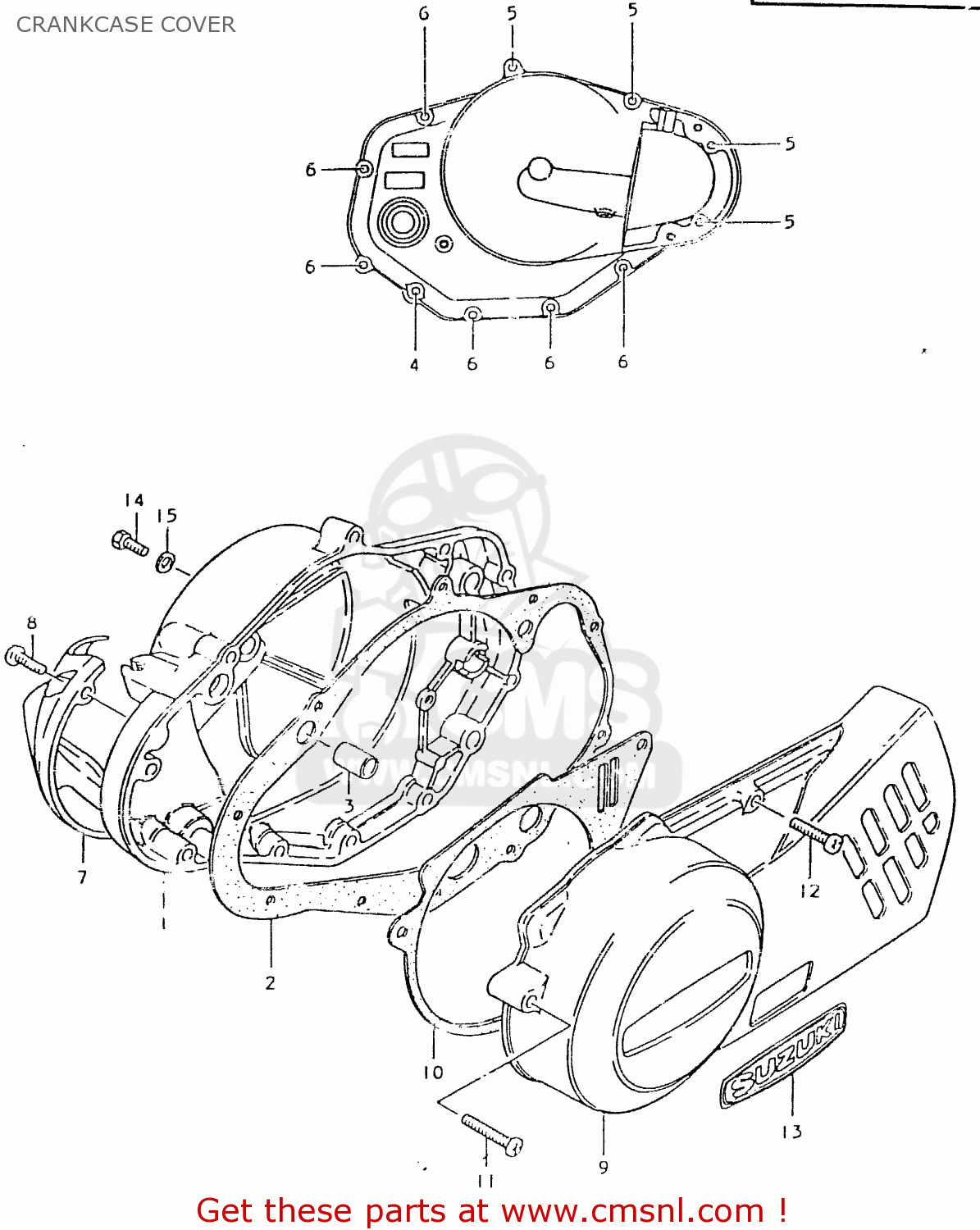

Crankcase cover diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

CRANKCASE COVER TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
CRANKCASE COVER TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
CRANKCASE COVER TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
1134148000
ref: 1
COVER,CLUTCH
1134148000
€ 124.50
2
1148248000
ref: 2
GASKET,CLUTCH COVER (MCA)
1148248000
€ 12.50
3
0920613001
ref: 3
PIN
0920613001
€ 2.50
4
0211206458
ref: 4
SCREW (6X45)
0211206458
€ 2.00
5
0211206308
ref: 5
SCREW 6X30
€ 2.50
6
0211206258
ref: 6
SCREW
€ 2.00
7
1145148000
ref: 7
COVER,CLUTCH RELEASE ARM
1145148000
€ 29.50
8
0211206165
ref: 8
SCREW
€ 2.00
9
1135148200
ref: 9
COVER,MAGNETO
1135148200
€ 150.50
10
1148348000
ref: 10
GASKET,MAGNETO COVER (NAS)
1148348000
€ 6.50
11
0211206308
ref: 11
SCREW 6X30
€ 2.50
12
0211206258
ref: 12
SCREW
€ 2.00
13
6823331000
ref: 13
EMBLEM,GENERATOR COVER
6823331000
€ 9.50
14
0912806004
ref: 14
SCREW(6X10)
0912806004
€ 1.50
15
0916806001
ref: 15
GASKET(6.2X11X1) (NAS)
0916806001
€ 1.50
