FRAME COVER (TS125ERT)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

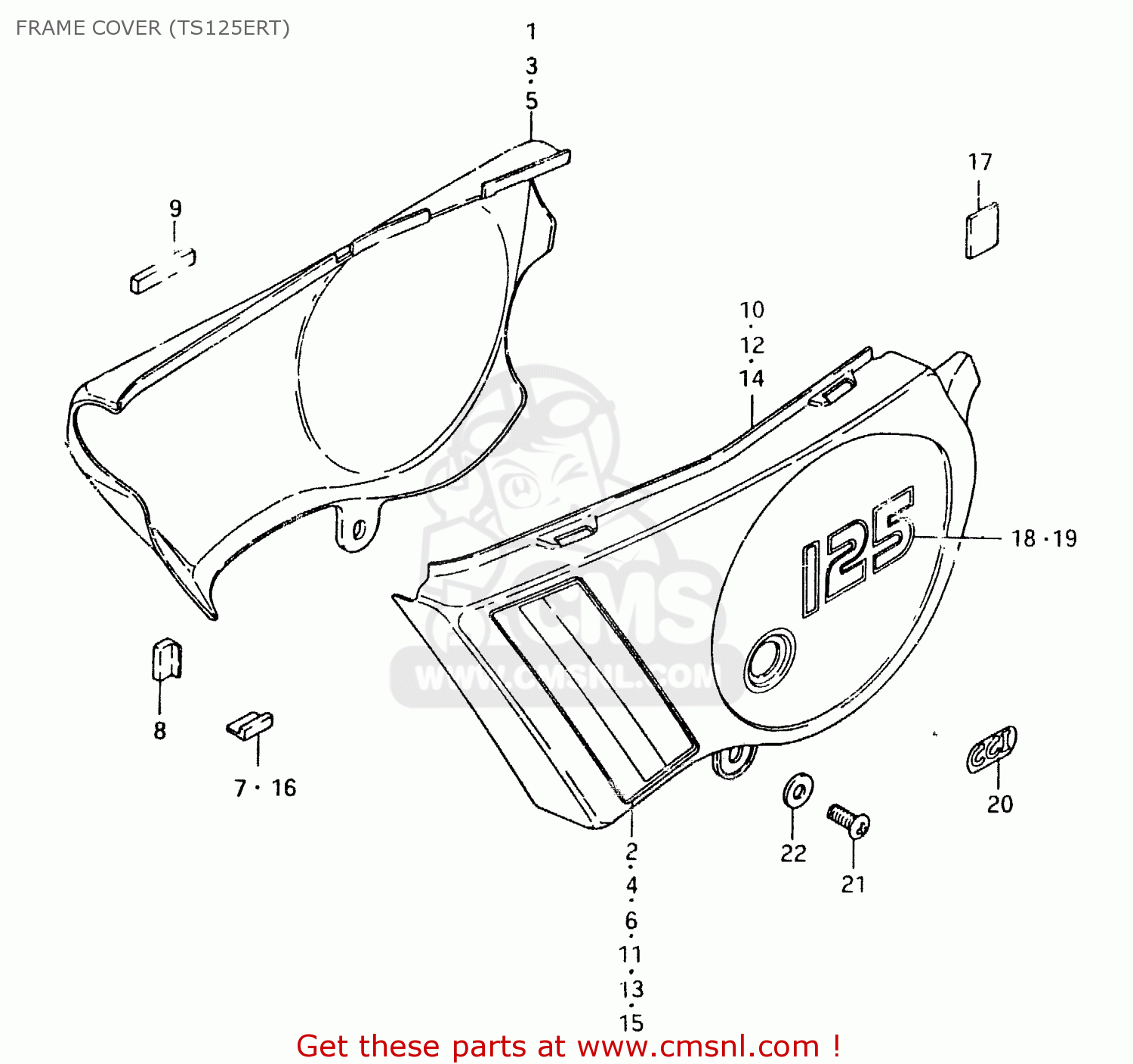

Frame cover (ts125ert) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

FRAME COVER (TS125ERT) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

FRAME COVER (TS125ERT) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

471114850007P
ref: 1

COVER, FRAME RH (RED)

€ 50.00

2

681364850069F
ref: 2

TAPE, RH

€ 21.00

3

471114850008Y
ref: 3

COVER,FRAME,RIGHT

€ 50.00

4

681364850069G
ref: 4

TAPE, RH

€ 0.00

5

4711148500189
ref: 5

COVER, FRAME RH (WHITE)

€ 50.00

6

681364850067H
ref: 6

TAPE, RH

€ 18.00

7

4711745000
ref: 7

CUSHION,FRAME COVER

€ 1.50

8

4711702400
ref: 8

CUSHION,FRAME COVER

€ 2.00

9

4711746400
ref: 9

CUSHION,FRAME COVER

€ 1.50

10

472114850007P
ref: 10

COVER, FRAME LH (RED)

€ 73.00

11

681464850069F
ref: 11

TAPE, LH

€ 8.50

12

472114850008Y
ref: 12

COVER,FRAME,LEFT

€ 73.00

13

681464850069G
ref: 13

TAPE, LH

€ 0.00

14

4721148500189
ref: 14

COVER, FRAME LH (WHITE)

€ 73.00

15

681464850067H
ref: 15

TAPE LH

€ 14.50

16

4711745000
ref: 16

CUSHION,FRAME COVER

€ 1.50

17

3365137000
ref: 17

PROTECTOR(170X95X3.0)

€ 5.00

18

6813148500
ref: 18

EMBLEM "125" RH

€ 14.00

19

6814148500
ref: 19

EMBLEM "125" LH

€ 0.00

20

6817126000
ref: 20

EMBLEM,CCIS

€ 4.00

21

0214206127
ref: 21

SCREW 6X12

€ 1.50

22

0916006007
ref: 22

WASHER

€ 2.00
