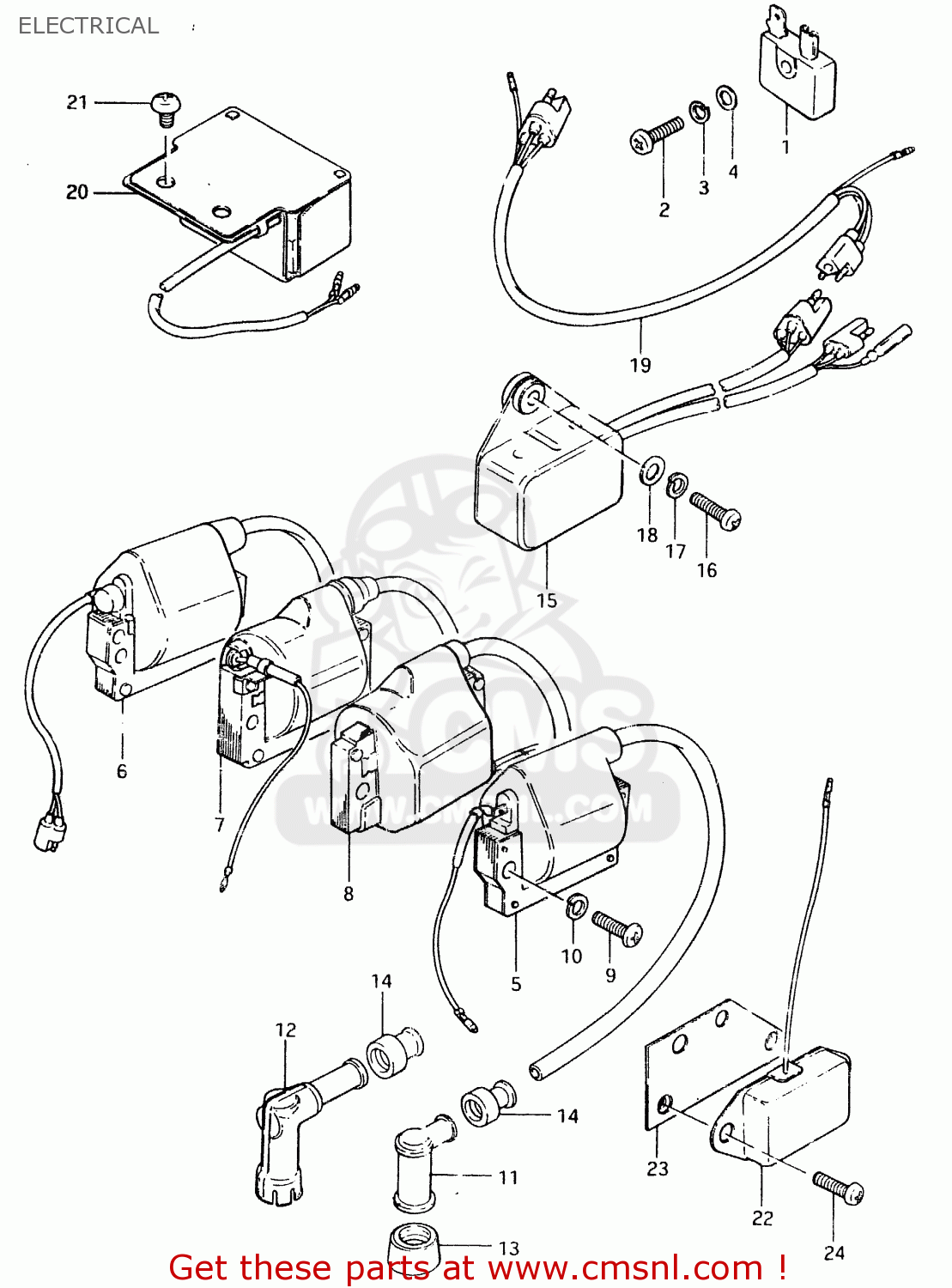

ELECTRICAL

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

Electrical diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

ELECTRICAL TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

ELECTRICAL TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

3280019063
ref: 1

RECTIFIER ASSEMBLY

€ 10.50

2

0211205208
ref: 2

SCREW 5X20

€ 3.00

3

0832121058
ref: 3

LOCK WASHER

€ 2.00

4

0832221058
ref: 4

WASHER

€ 2.50

5

3341043010
ref: 5

COIL ASSEMBLY,IGNITION

€ 89.50

6

3341039230
ref: 6
E8

COIL ASSY, IGNITION

€ 49.50

7

3341043020
ref: 7
E16

COIL ASSEMBLY,IGNITION

€ 89.50

8

3341048520
ref: 8
E24

UNIT & COIL ASSEMBLY,IGNITION

€ 0.00

9

0211206258
ref: 9

SCREW

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

3351022010
ref: 11

CAP ASSY,SPARK PLUG

€ 16.50

12

3351039110
ref: 12
E2,E4,E15,E16,E17,E1

CAP,SPARK PLUG

€ 61.50

13

3354169010
ref: 13

SEAL,SPARK PLUG

€ 5.00

14

3354298000
ref: 14

SEAL,SPARK PLU

€ 4.50

15

3290039240
ref: 15
E8

CDI UNIT

€ 0.00

16

0211206168
ref: 16
E8

SCREW

€ 2.50

17

0832121068
ref: 17
E8

LOCK WASHER

€ 2.50

18

0832221068
ref: 18
E8

WASHER

€ 2.00

19

3685448500
ref: 19
E8

LEAD WIRE, CDI

€ 0.00

20

3651048600
ref: 20
E2,E4,E15,E17,E18,E2

RESISTOR ASSY

€ 23.00

21

0211206108
ref: 21

SCREW

€ 1.50

22

3250037410
ref: 22
E16

REGULATOR ASSEMBLY,VOLTAGE

€ 141.50

23

3251148000
ref: 23
E16

PLATE

€ 0.00

24

0211206108
ref: 24
E16

SCREW

€ 1.50
