HEADLAMP HOUSING (TS125ERT)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

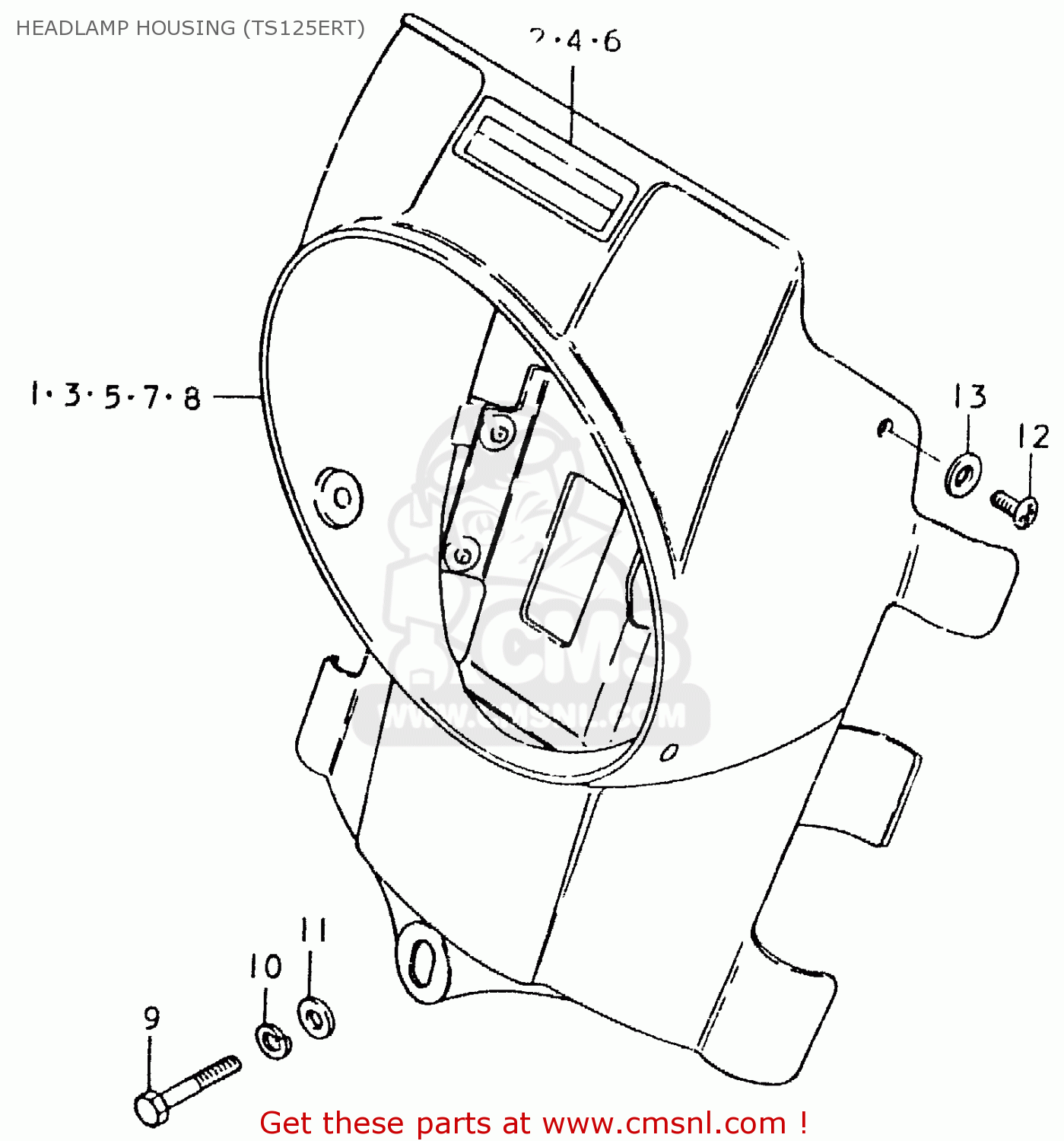

Headlamp housing (ts125ert) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

HEADLAMP HOUSING (TS125ERT) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

HEADLAMP HOUSING (TS125ERT) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

518104850207P
ref: 1
TO 51810-48503-07P

HOUSING, HEADLAMP (RED)

€ 62.00

2

682754850069F
ref: 2

TAPE, HOUSING

€ 5.00

3

518104850208Y
ref: 3
TO 51810-48503-08P

HOUSING,HEADLAMP

€ 71.50

4

682754850069G
ref: 4

TAPE, HOUSING

€ 5.00

5

5181048502189
ref: 5
TO 51810-48503-189

HOUSING, HEADLAMP (WHITE)

€ 71.50

6

682754850067H
ref: 6

TAPE, HOUSING

€ 4.50

7

518104850205K
ref: 7
TO 51810-48503-05K,E

HOUSING, HEADLAMP (BLUE)

€ 71.50

7

518104850207P
ref: 7
TO 51810-48503-07P,E

HOUSING, HEADLAMP (RED)

€ 62.00

7

5181048502163
ref: 7
E24

HOUSING, HEADLAMP (YELLOW)

€ 71.50

7

5181048502189
ref: 7
TO 51810-48503-189,E

HOUSING, HEADLAMP (WHITE)

€ 71.50

7

518104850307P
ref: 7
E15,E17,E25

HOUSING, HEADLAMP (RED)

€ 62.00

7

518104850308Y
ref: 7
E15,E17,E25

HOUSING,HEADLAMP

€ 71.50

7

5181048503189
ref: 7
E15,E17,E25

HOUSING, HEADLAMP (WHITE)

€ 71.50

8

518104850305K
ref: 8
E18,E22

HOUSING, HEADLAMP (BLUE)

€ 71.50

8

518104850307P
ref: 8
E18,E22

HOUSING, HEADLAMP (RED)

€ 62.00

8

5181048503163
ref: 8
E18,E22

HOUSING, HEADLAMP (YELLOW)

€ 71.50

8

5181048503189
ref: 8
E18,E22

HOUSING, HEADLAMP (WHITE)

€ 71.50

9

0110706128
ref: 9

BOLT

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

0916006020
ref: 11

WASHER

€ 2.00

12

0211205128
ref: 12

SCREW

€ 2.50

13

0916005017
ref: 13

WASHER (5.5X16X1.2)

€ 2.50
