TURN SIGNAL LAMP (E2, E15)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

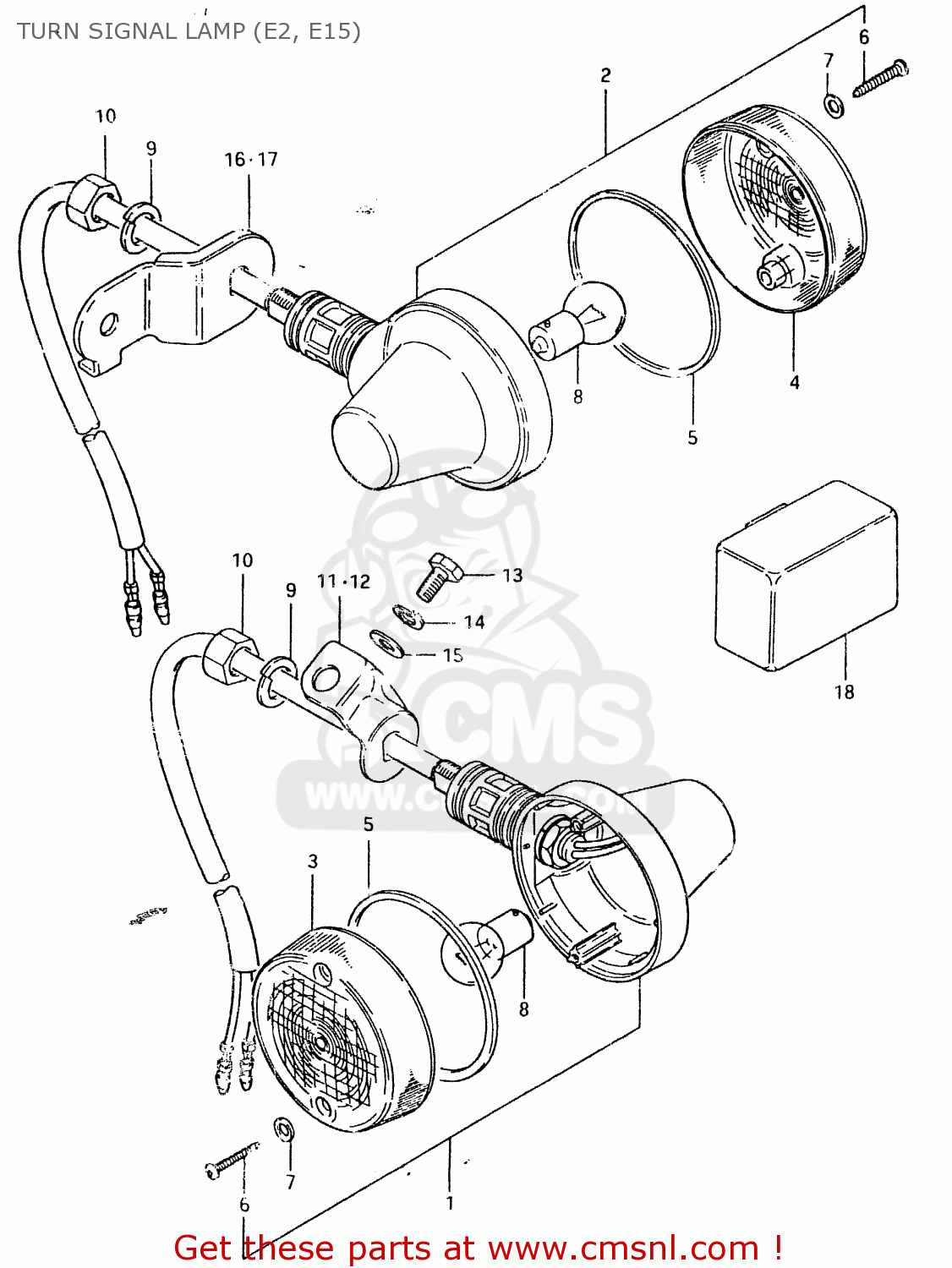

Turn signal lamp (e2, e15) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

TURN SIGNAL LAMP (E2, E15) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
TURN SIGNAL LAMP (E2, E15) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
TURN SIGNAL LAMP (E2, E15) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
3560348521999
ref: 1
MODEL T
LAMP ASSY,RR TURNSIGNAL
3560348521999
€ 72.50
1
3560148522
ref: 1
MODEL X
LAMP, FRONT TURN SIGNAL
€ 72.50
2
3560348521999
ref: 2
LAMP ASSY,RR TURNSIGNAL
3560348521999
€ 72.50
3
3561248510
ref: 3
MODEL T
LENS
3561248510
€ 10.50
3
3561248530
ref: 3
MODEL X
LENS
3561248530
€ 7.50
4
3561248510
ref: 4
LENS
3561248510
€ 10.50
5
3561328620
ref: 5
GASKET (NAS)
3561328620
€ 7.00
6
0321104258
ref: 6
SCREW TAPP.
0321104258
€ 2.00
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0947106048
ref: 8
BULB (6V,18W)
€ 0.00
9
0832121128
ref: 9
WASHER,LOCK 12
0832121128
€ 2.50
10
0831012128
ref: 10
NUT
0831012128
€ 3.00
11
5125129900291
ref: 11
BRACKET,TURNSIGNAL LAMP,R
5125129900291
€ 7.50
12
5125229900291
ref: 12
BRACKET,TURNSIGNAL LAMP,L
5125229900291
€ 7.50
13
0110706128
ref: 13
BOLT
0110706128
€ 2.00
14
0832121068
ref: 14
LOCK WASHER
0832121068
€ 2.50
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
16
4158048500
ref: 16
BRACKET,REAR TURN SIGNAL
4158048500
€ 14.00
17
4159048500
ref: 17
BRACKET,REAR TURN SIGNAL
4159048500
€ 14.50
18
3861048600
ref: 18
RELAY,TURN SIGNAL
€ 46.50
