TRANSMISSION

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

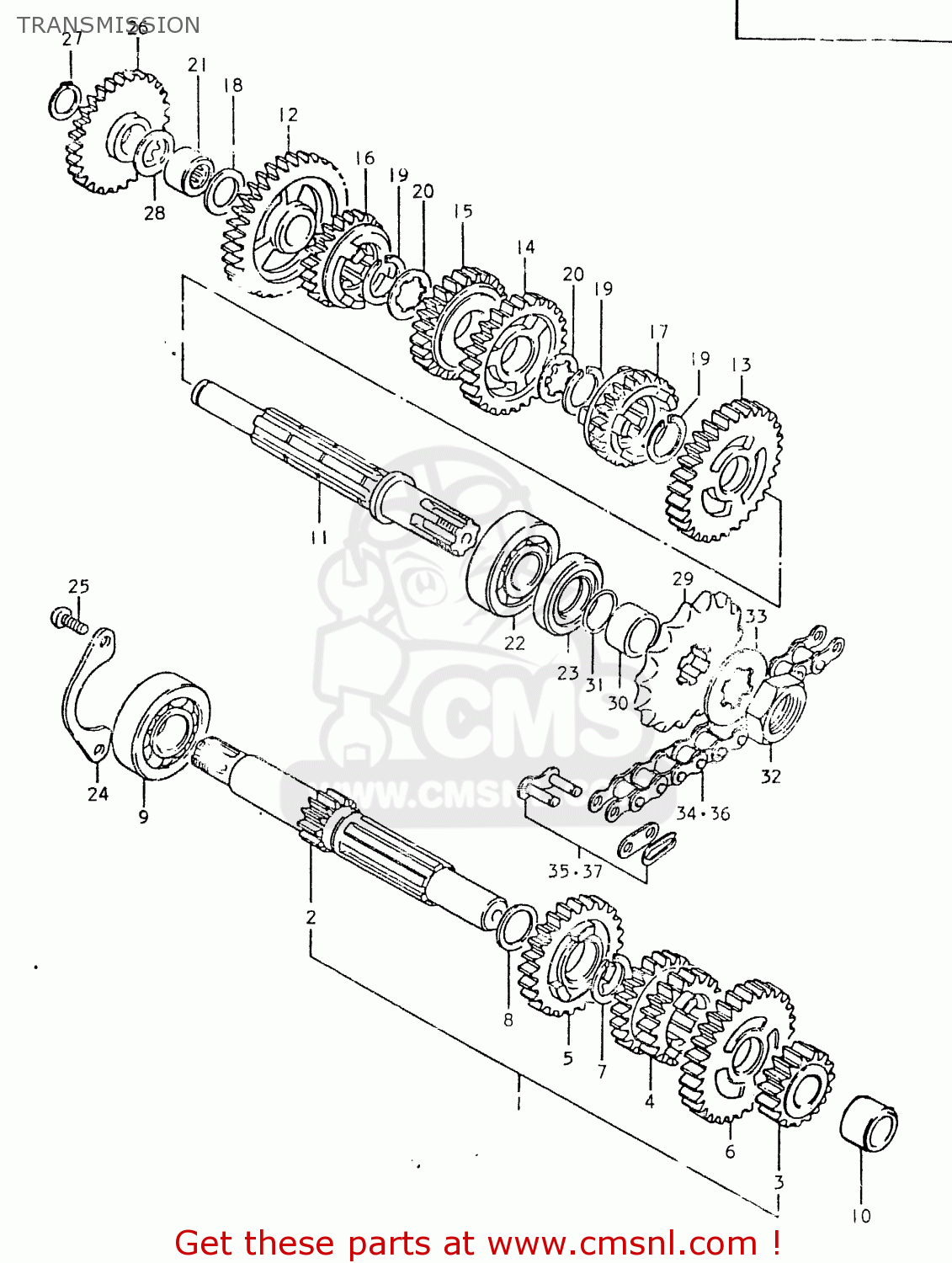

Transmission diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

TRANSMISSION TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
TRANSMISSION TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
TRANSMISSION TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
2412048011
ref: 1
SHAFT ASSEMBLY,COUNTER
€ 0.00
2
2412148001
ref: 2
SHAFT,COUNTER
2412148001
€ 71.50
3
2422148000
ref: 3
GEAR,SECOND DRIVE
2422148000
€ 31.50
4
2423148000
ref: 4
NT:19/21
GEAR,THIRD/FOURTH DRIVE
€ 71.50
5
2425148010
ref: 5
GEAR,FIFTH DRIVE
€ 44.50
6
2426048011
ref: 6
GEAR,SIXTH DRIVE
€ 54.50
7
0938020007
ref: 7
CIRCLIP
0938020007
€ 3.00
8
0821120261
ref: 8
WASHER
0821120261
€ 2.50
9
0811362040
ref: 9
Bearing
0811362040
€ 28.00
10
0930015009
ref: 10
BUSH(15X22X15)
0930015009
€ 10.00
11
2413148000
ref: 11
SHAFT,GEAR SHIFT
€ 104.50
12
2431048001
ref: 12
GEAR,1ST DRIVEN
2431048001
€ 54.50
13
2432148002
ref: 13
GEAR,SECOND DRIVEN
2432148002
€ 48.00
14
2433148000
ref: 14
GEAR,THIRD DRIVEN
€ 50.00
15
2434148000
ref: 15
GEAR,FOURTH DRIVEN
2434148000
€ 47.50
16
2435148011
ref: 16
GEAR,FIFTH DRIVEN
2435148011
€ 52.00
17
2436148011
ref: 17
GEAR,SIXTH DRIVEN
2436148011
€ 57.00
18
0821115261
ref: 18
WASHER,THRUST
0821115261
€ 2.50
19
0938020007
ref: 19
CIRCLIP
0938020007
€ 3.00
20
0916720011
ref: 20
WASHER,LOCK
0916720011
€ 2.50
21
0926315012
ref: 21
BEARING(15X22X12)
0926315012
€ 11.50
22
0811362040
ref: 22
Bearing
0811362040
€ 28.00
23
0928325035
ref: 23
SEAL,OIL(25X40X7)
0928325035
€ 6.50
24
2474148000
ref: 24
RETAINER,CNTR SHAFT BEARING
2474148000
€ 5.50
25
0211206128
ref: 25
SCREW 6X12
0211206128
€ 2.00
26
2626028002
ref: 26
GEAR,KICK STARTER IDLE
2626028002
€ 38.00
27
0833131159
ref: 27
CIRCLIP,15MM
0833131159
€ 2.00
28
0821115261
ref: 28
WASHER,THRUST
0821115261
€ 2.50
29
2751148000
ref: 29
SPROCKET,ENGINE
2751148000
€ 24.50
30
0918020039
ref: 30
SPACER(20X25X12.5)
0918020039
€ 9.50
31
0928020001
ref: 31
O RING(D:1,ID:19.5)
0928020001
€ 2.00
32
0914020001
ref: 32
NUT
0914020001
€ 3.50
33
0916720006
ref: 33
WASHER,LOCK
0916720006
€ 3.00
34
2760025010
ref: 34
MODEL T,428X114L
CHAIN ASSEMBLY,DRIVE
€ 46.50
35
2762020210
ref: 35
MODEL T,TO 27620-120
JOINT ASSEMBLY,CHAIN
€ 7.00
36
2760025050
ref: 36
MODEL X,428X114L
CHAIN ASSEMBLY,DRIVE
€ 46.50
37
2762028011
ref: 37
MODEL X
JOINT ASSEMBLY,CHAIN
2762028011
€ 3.00
