GEAR SHIFTING

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

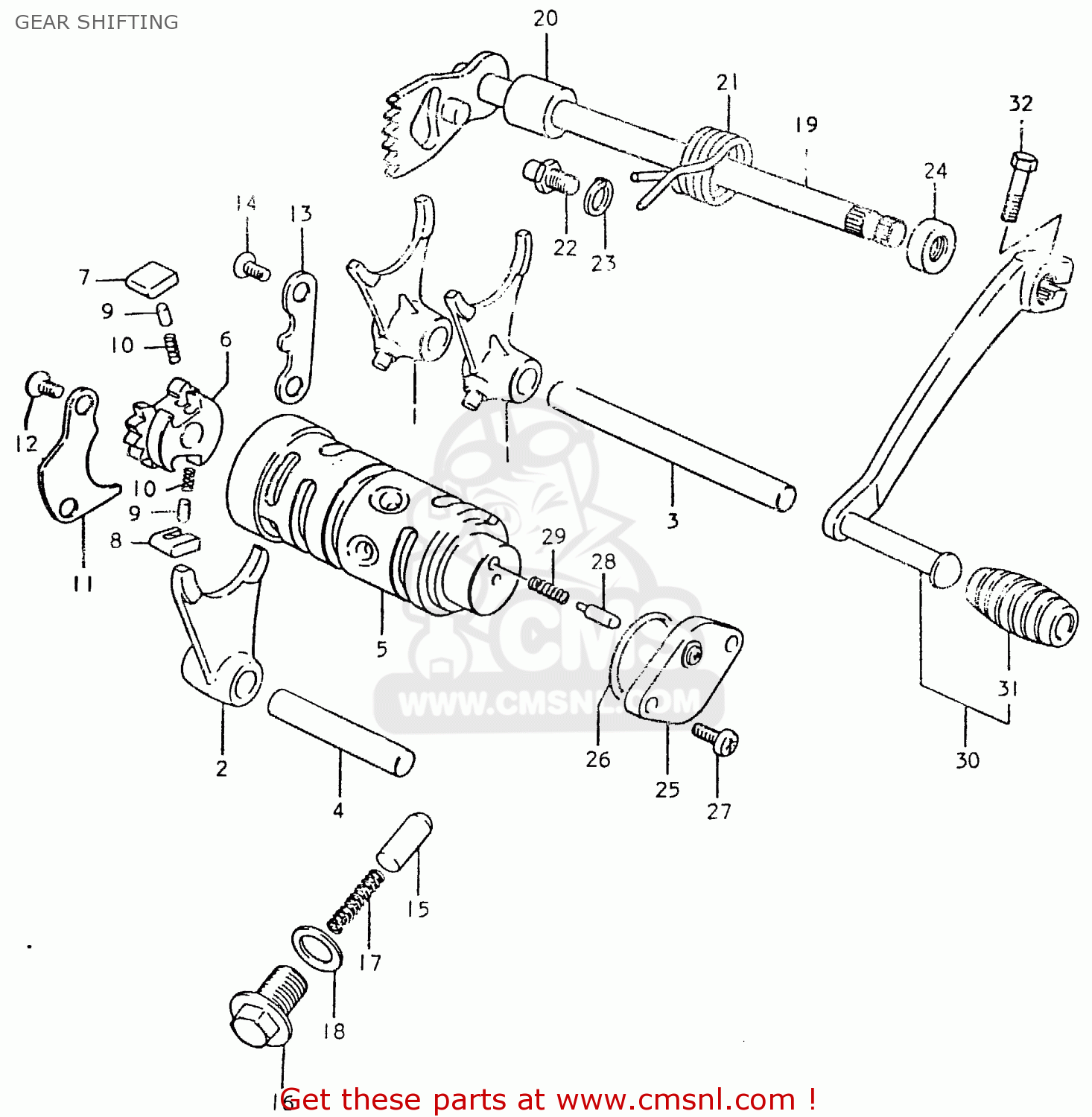

Gear shifting diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

GEAR SHIFTING TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
GEAR SHIFTING TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
GEAR SHIFTING TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
2521148001
ref: 1
FORK,GEAR SHIFT NO.1
2521148001
€ 71.50
2
2522141301
ref: 2
FORK,GEAR SHIFT NO.2
2522141301
€ 71.50
3
2541148000
ref: 3
SHAFT,GEAR SHIFT FORK
€ 15.00
4
2542148000
ref: 4
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531048400
ref: 5
CAM,GEAR SHIFT
2531048400
€ 92.00
6
2532211000
ref: 6
RETAINER,GEAR SHIFT CAM
2532211000
€ 14.50
7
2532311000
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532411000
ref: 8
PAWL,GEAR SHIFT NO.2
2532411000
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533111001
ref: 11
LIFTER,GEAR SHIFT PAWL
2533111001
€ 2.50
12
0212206128
ref: 12
SCREW
0212206128
€ 3.00
13
2534148000
ref: 13
GUIDE,GEAR SHIFTING CABLE
2534148000
€ 6.50
14
0212206108
ref: 14
SCREW
0212206108
€ 1.50
15
2535111000
ref: 15
STOPPER,GEAR SHIFTING
2535111000
€ 6.50
16
2535211000
ref: 16
BOLT,GEAR SHAFT CAM STOPPER
2535211000
€ 4.50
17
0944005007
ref: 17
SPRING
0944005007
€ 12.00
18
0916814004
ref: 18
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
19
2551048010
ref: 19
SHAFT,GEAR SHIFT
2551048010
€ 57.00
20
0918012068
ref: 20
SPACER(12X20X15.3)
0918012068
€ 3.00
21
0944426013
ref: 21
SPRING
0944426013
€ 3.50
22
2567101000
ref: 22
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
23
0916208005
ref: 23
WASHER
€ 2.00
24
0928512002
ref: 24
OIL SEAL
0928512002
€ 7.00
25
3772029350
ref: 25
BODY,GEAR SHIFT SWITCH
3772029350
€ 10.50
26
0928026003
ref: 26
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
27
0211205128
ref: 27
SCREW
€ 2.50
28
0920905011
ref: 28
PIN(5X15.5)
0920905011
€ 2.00
29
0944004010
ref: 29
SPRING
0944004010
€ 1.50
30
2560030501
ref: 30
LEVER ASSY,GEAR SHIFT
2560030501
€ 31.00
31
2565216500
ref: 31
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
32
0910006091
ref: 32
BOLT
€ 2.00
