REAR COMBINATION LAMP (E2, E4, E15, E17, E21, E25)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

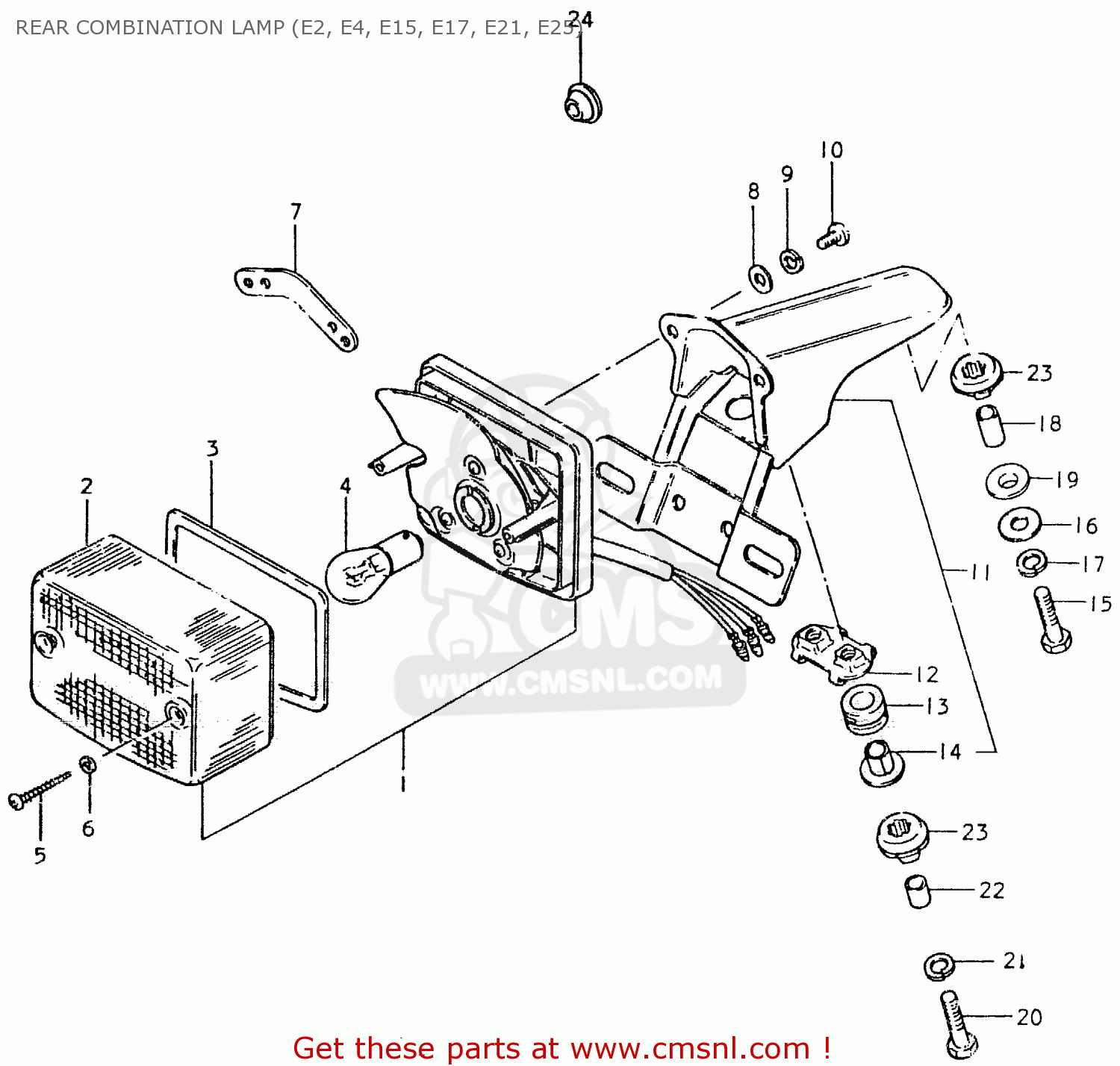

Rear combination lamp (e2, e4, e15, e17, e21, e25) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

REAR COMBINATION LAMP (E2, E4, E15, E17, E21, E25) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
REAR COMBINATION LAMP (E2, E4, E15, E17, E21, E25) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
REAR COMBINATION LAMP (E2, E4, E15, E17, E21, E25) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
3572048520
ref: 1
MODEL T
LAMP UNIT, TAIL
€ 115.00
1
3572048521
ref: 1
MODEL X
LAMP UNIT, TAIL
€ 115.00
2
3571248520
ref: 2
MODEL T
LENS
€ 26.00
2
3571248521
ref: 2
MODEL X
LENS
€ 26.00
3
3571348510
ref: 3
GASKET (NAS)
3571348510
€ 8.50
4
0947106042
ref: 4
BULB (6V,21/5W)
€ 12.50
5
3562549030
ref: 5
MODEL T,TO 03211-043
BOLT
3562549030
€ 1.50
5
0321104308
ref: 5
MODEL X
SCREW
0321104308
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
3571648510
ref: 7
PLATE,REAR COMBINATION LAMP
3571648510
€ 9.00
8
0832221058
ref: 8
WASHER
€ 2.50
9
0832121058
ref: 9
LOCK WASHER
0832121058
€ 2.00
10
0211205128
ref: 10
SCREW
€ 2.50
11
3573048510
ref: 11
BRACKET ASSY
3573048510
€ 61.00
12
3571630950
ref: 12
PLATE
3571630950
€ 10.50
13
3576530950
ref: 13
CUSHION
3576530950
€ 18.00
14
3576630950
ref: 14
SPACER
3576630950
€ 2.00
15
0110706308
ref: 15
BOLT
0110706308
€ 2.50
16
0916006027
ref: 16
WASHER (6.5X20X1.2)
0916006027
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
0918006072
ref: 18
SPACER
0918006072
€ 2.00
19
0932009003
ref: 19
CUSHION
0932009003
€ 2.00
20
0110706408
ref: 20
BOLT 6X40
0110706408
€ 2.00
20
0110706458
ref: 20
E17
BOLT
0110706458
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0918006006
ref: 22
SPACER (6.8X10X11.5)
0918006006
€ 3.00
23
0932009010
ref: 23
CUSHION
0932009010
€ 2.50
24
0930807004
ref: 24
GROMMET
0930807004
€ 2.50
