SEAT

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

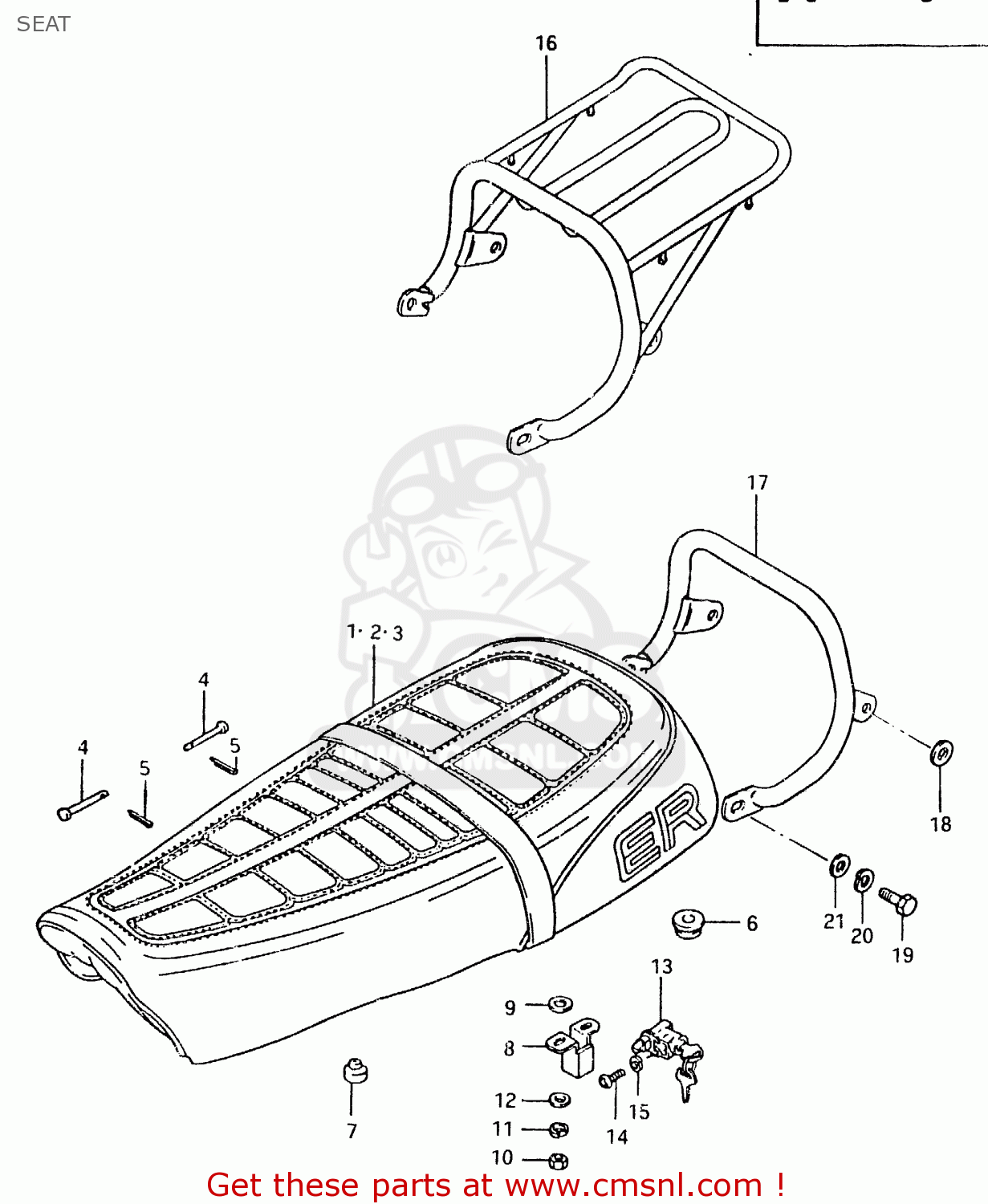

Seat diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

SEAT TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
SEAT TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
SEAT TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
4510048500866
ref: 1
SEAT ASSY (BLACK)
€ 204.00
2
4510048520866
ref: 2
TS125ERT:E17,E18,E22
SEAT ASSY (BLACK)
€ 204.00
3
4510048530866
ref: 3
TS125ERX E22
SEAT ASSY (BLACK)
€ 204.00
4
0920006018
ref: 4
PIN
0920006018
€ 2.00
5
0411120158
ref: 5
PIN
0411120158
€ 1.50
6
0932020004
ref: 6
CUSHION
0932020004
€ 4.50
7
0932108010
ref: 7
CUSHION
0932108010
€ 4.00
8
4521329300
ref: 8
PLATE,CLAMP GUIDE
€ 7.00
9
0916008043
ref: 9
WASHER(8.5X18X1)
0916008043
€ 1.50
10
0831011068
ref: 10
NUT
0831011068
€ 2.50
11
0832121068
ref: 11
LOCK WASHER
0832121068
€ 2.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
9570030832
ref: 13
LOCK ASSY,SEAT
9570030832
€ 54.00
14
0211205128
ref: 14
SCREW
€ 2.50
15
0832121058
ref: 15
LOCK WASHER
0832121058
€ 2.00
16
4631048500
ref: 16
OPT
CARRIER,SPORT
4631048500
€ 156.50
17
4162048500
ref: 17
TS125ERT:E18,E22,E26
HANDLE, PILLION RIDER
€ 0.00
18
0916008029
ref: 18
TS125ERT:E18,E22,E26
WASHER
€ 0.00
19
0110708168
ref: 19
TS125ERT:E18,E22,E26
BOLT
€ 2.00
20
0832121088
ref: 20
TS125ERT:E18,E22,E26
LOCK WASHER
0832121088
€ 2.00
21
0832211088
ref: 21
TS125ERT:E18,E22,E26
WASHER
0832211088
€ 2.00
