CRANKSHAFT

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

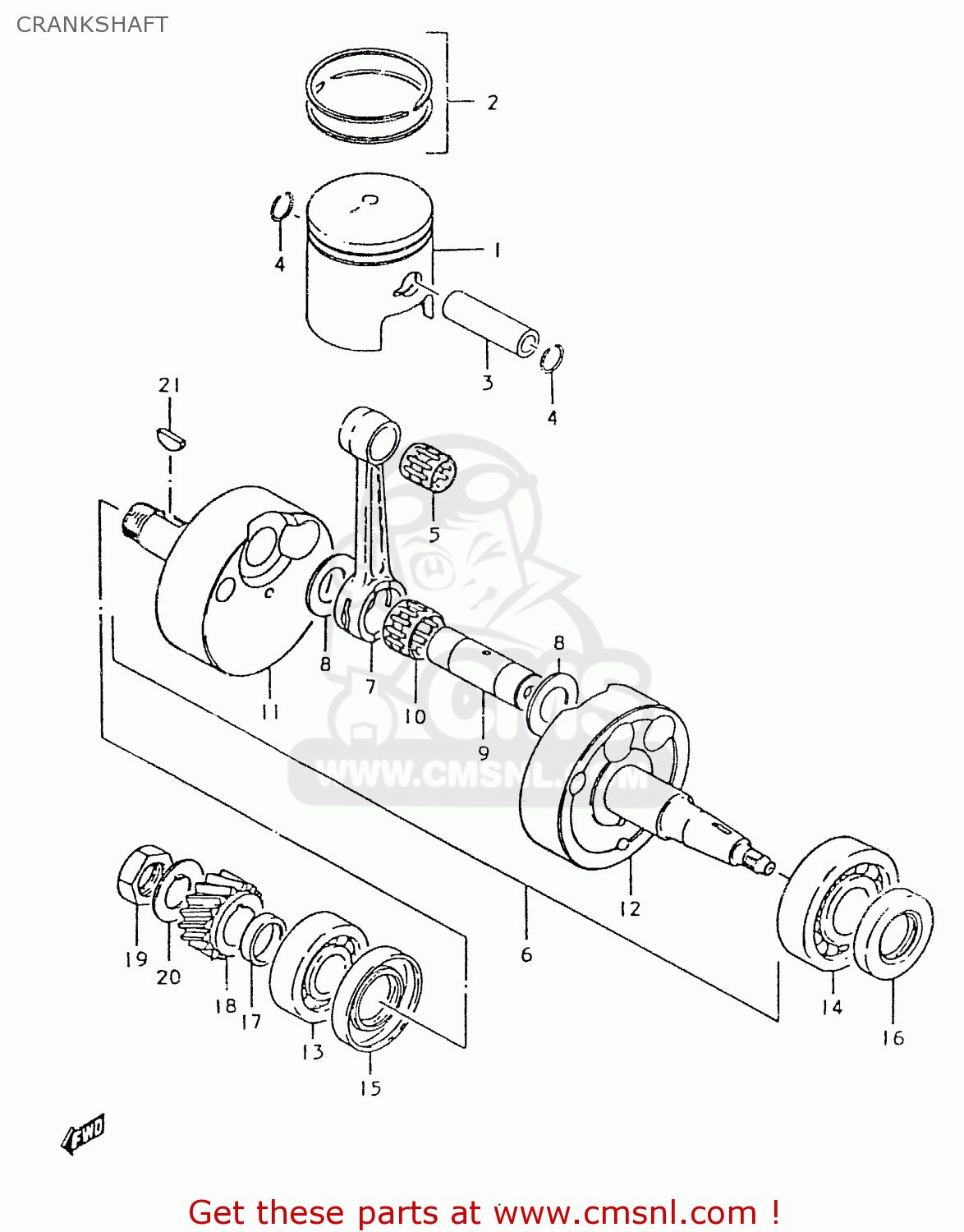

Crankshaft diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

CRANKSHAFT TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

CRANKSHAFT TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

1211048000
ref: 1

PISTON

€ 40.00

1

1211048000050
ref: 1

PISTON (OS:0.5)

€ 105.00

1

1211048000100
ref: 1

PISTON

€ 80.50

2

1214028010
ref: 2

RING SET,PISTON

€ 41.50

2

1214028010050
ref: 2

RING SET,PISTON (OS:0.5)

€ 42.00

2

1214028010100
ref: 2

RING SET,PISTON (OS:1.0)

€ 60.50

3

1215128000
ref: 3

PIN,PISTON

€ 6.50

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314006
ref: 5

BEARING

€ 10.00

6

1220048001
ref: 6

CRANKSHAFT ASSEMBLY

€ 598.00

7

1216112002
ref: 7

CONNECTING ROD

€ 54.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221148001
ref: 9

PIN,CRANK

€ 30.00

10

0926319009
ref: 10

BEARING(19X25X16)

€ 15.00

11

1222148000
ref: 11

CRANKSHAFT,R

€ 101.00

12

1226148001
ref: 12

CRANKSHAFT,LEFT

€ 88.00

13

0926220009
ref: 13

BEARING

€ 19.00

14

0926225049
ref: 14

BEARING(25X62X17)

€ 28.50

15

0928326007
ref: 15

SEAL,OIL(26X52X8)

€ 7.50

16

0928325066
ref: 16

SEAL,OIL(25X44X7)

€ 7.00

17

0918020037
ref: 17

SPACER(20X28X7)

€ 7.50

18

2111128000
ref: 18

GEAR,PRIMARY DRIVE

€ 42.00

19

0914018002
ref: 19

NUT

€ 3.50

20

0916618001
ref: 20

WASHER

€ 3.00

21

0834131059
ref: 21

KEY

€ 3.00
