FUEL COCK

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

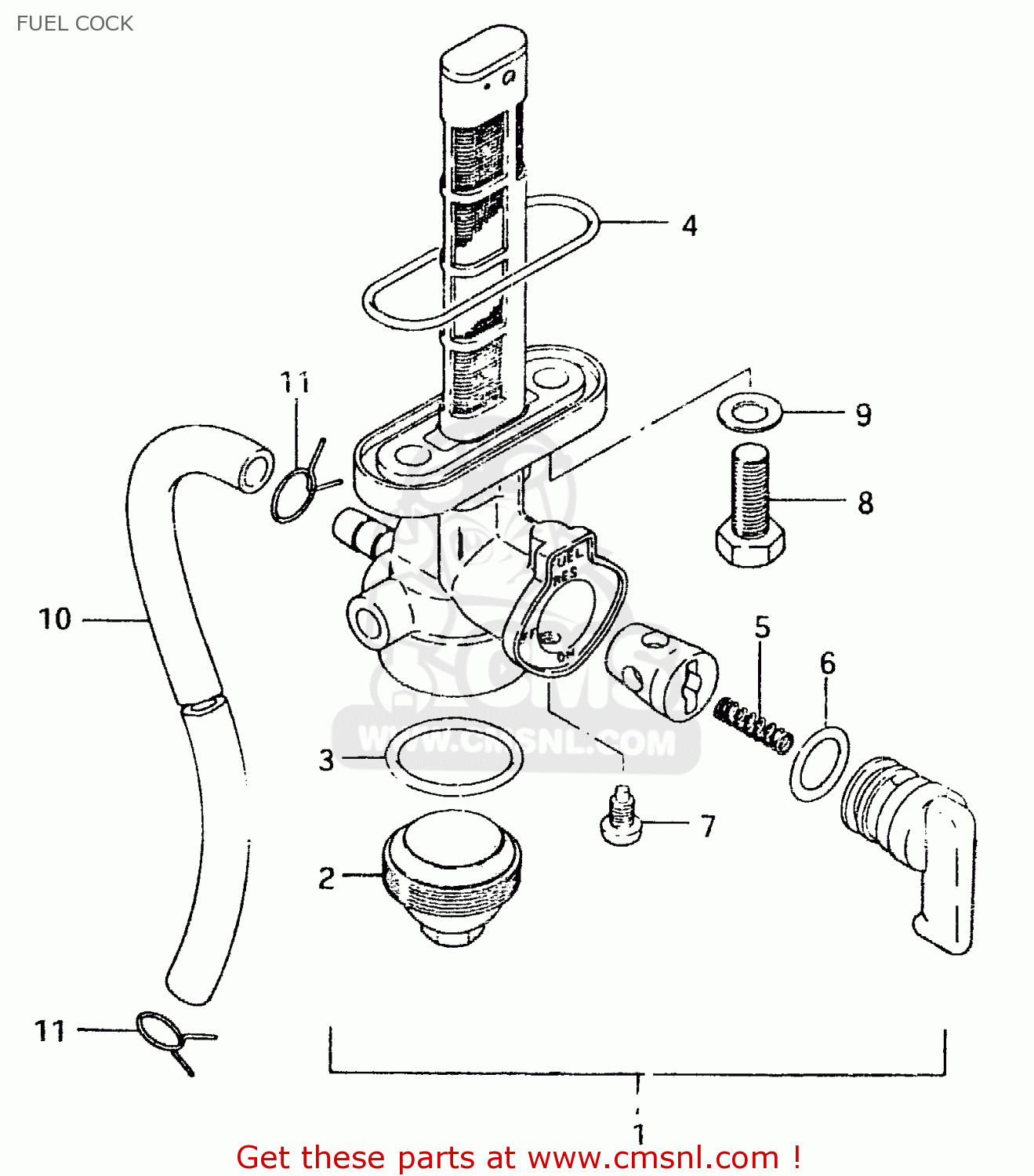

Fuel cock diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

4430022071
ref: 1

COCK ASSEMBLY,FUEL

€ 65.50

4430022072
ref: 1

COCK ASSEMBLY,FUEL

€ 65.50

4434728071
ref: 2

CUP,STRAINER

€ 7.50

4434628070
ref: 3

GASKET,FILTER (NAS)

€ 2.50

4434828070
ref: 4

O RING,FUEL COCK

€ 4.50

4435732470
ref: 5

SPRING

€ 2.00

4435332470
ref: 6

O-RING

€ 7.50

4434341370
ref: 7

SCREW

€ 2.00

0912806006
ref: 8

BOLT(6X20)

€ 2.00

0916806010
ref: 9

GASKET

€ 2.00

0934305129
ref: 10

HOSE

€ 13.00

0940108402
ref: 11

CLIP

€ 1.50
