MAGNETO (E24)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

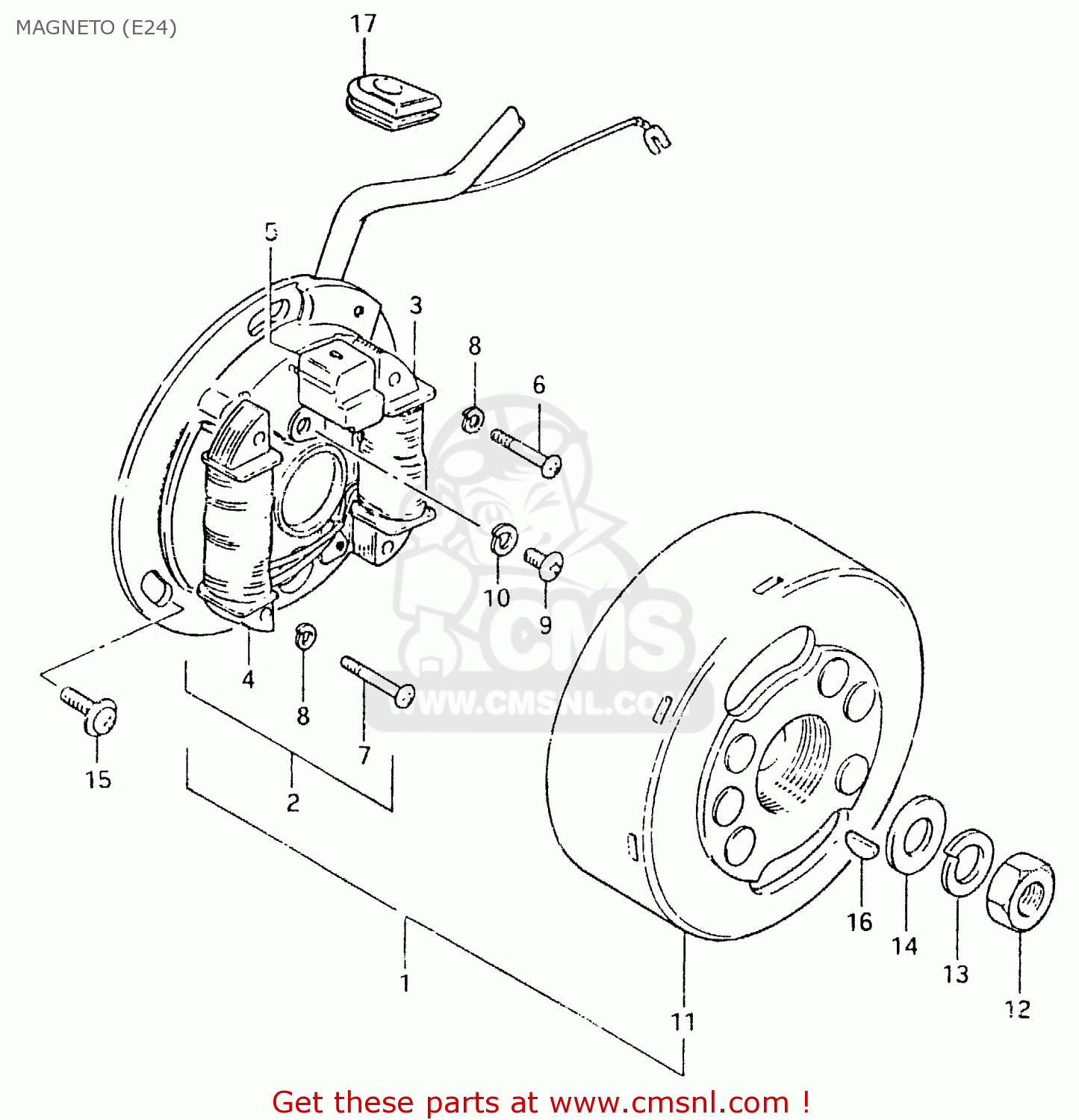

Magneto (e24) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

MAGNETO (E24) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

MAGNETO (E24) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

3210048530
ref: 1

MAGNETO ASSY

€ 233.50

1

3210048531
ref: 1
F.NO.TS1252-327517~

MAGNETO ASSY

€ 233.50

2

3210148530
ref: 2

STATOR ASSY

€ 233.50

2

3210148531
ref: 2
F.NO.TS1252-327517~

STATOR ASSY

€ 233.50

3

3212048530
ref: 3

COIL, LIGHTING

€ 0.00

3

3212048531
ref: 3
F.NO.TS1252-327517~

COIL, LIGHTING

€ 0.00

4

3214048530
ref: 4

COIL

€ 0.00

5

3215048520
ref: 5

COIL,PULSER

€ 26.50

6

0211204258
ref: 6

SCREW 4X25

€ 2.00

7

0211204168
ref: 7

SCREW

€ 1.00

8

0832121048
ref: 8

LOCK WASHER

€ 2.00

9

0211205088
ref: 9

SCREW

€ 2.00

10

0832121058
ref: 10

LOCK WASHER

€ 2.00

11

3210248530
ref: 11

ROTOR

€ 233.50

12

0914010003
ref: 12

NUT (10MM)

€ 3.50

13

0832121108
ref: 13

LOCK WASHER

€ 2.00

14

0832221108
ref: 14

WASHER

€ 2.50

15

0913905011
ref: 15

SCREW(5X14)

€ 3.00

16

0834131039
ref: 16

KEY

€ 2.00

17

0930909007
ref: 17

GROMMET

€ 2.50
