REAR SWINGING ARM

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

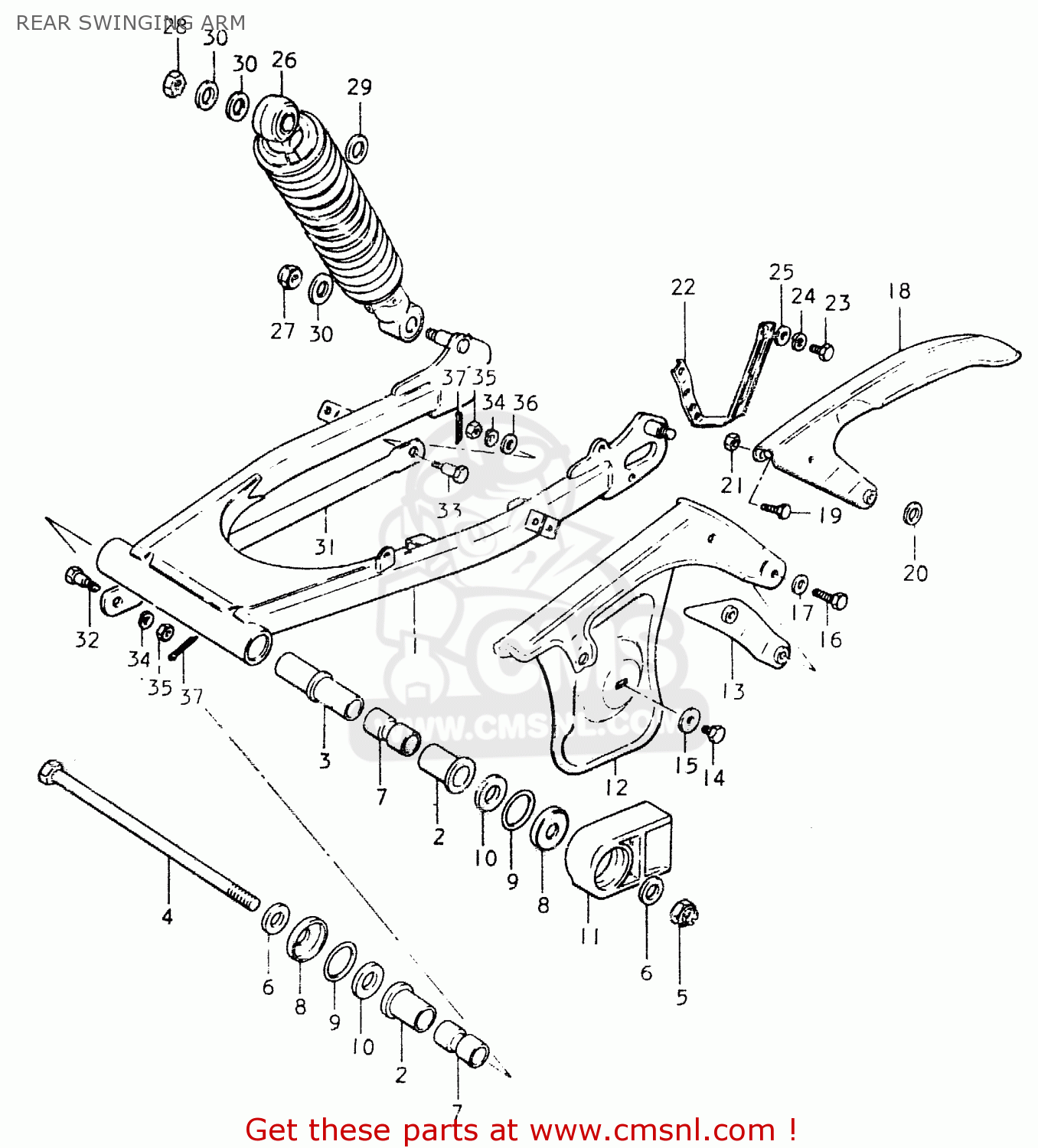

Rear swinging arm diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

REAR SWINGING ARM TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
REAR SWINGING ARM TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
REAR SWINGING ARM TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
611004885008C
ref: 1
TO 61100-48851-08C,
SWINGING ARM SET
€ 208.00
1
611004885208C
ref: 1
MODEL X
SWINGING ARM SET
€ 208.00
2
0930718002
ref: 2
BUSH
0930718002
€ 10.50
3
6128029300
ref: 3
SPACER,RR SWGARM PIVOT CTR
6128029300
€ 9.00
4
6121129301
ref: 4
SHAFT,REAR SWING ARM
6121129301
€ 11.50
5
0831921128
ref: 5
NUT 12MM
0831921128
€ 4.00
6
0832211128
ref: 6
WASHER
0832211128
€ 2.00
7
6125128000
ref: 7
SPACER,RR SWGARM PIVOT
6125128000
€ 8.50
8
6126209200
ref: 8
COVER,SWGARM BUSH DUST SEAL
6126209200
€ 2.50
9
0928024001
ref: 9
O RING(D:2,ID:24.5)
0928024001
€ 2.00
10
0916012005
ref: 10
12.5X24X2.3
WASHER(12.5X24X2.3)
0916012005
€ 3.00
11
6127348501
ref: 11
BUFFER,CHAIN TOUCH DEFENSE
6127348501
€ 10.50
12
6131129302019
ref: 12
CASE,CHAIN
€ 94.00
13
6138029300
ref: 13
REINFORCEMENT,CHAIN CASE
€ 8.50
14
0910006011
ref: 14
BOLT(6X8)
0910006011
€ 2.50
15
0916906010
ref: 15
WASHER
0916906010
€ 3.00
16
0110706168
ref: 16
BOLT, UPPER
€ 3.00
17
0832221068
ref: 17
WASHER
0832221068
€ 2.00
18
6133048000
ref: 18
E17,E22,E30
CHAIN CASE, END
6133048000
€ 83.50
19
0110706128
ref: 19
E17,E22,E30
BOLT
0110706128
€ 2.00
20
0916906010
ref: 20
E17,E22,E30
WASHER
0916906010
€ 3.00
21
0831011068
ref: 21
E17,E22,E30
NUT
0831011068
€ 2.50
22
6134148501
ref: 22
MODEL T
GUIDE,CHAIN
6134148501
€ 10.00
22
6134148502
ref: 22
MODEL X
GUIDE,CHAIN
€ 10.00
23
0110708128
ref: 23
BOLT 8X12
0110708128
€ 2.50
24
0832121088
ref: 24
LOCK WASHER
0832121088
€ 2.00
25
0832221088
ref: 25
WASHER
0832221088
€ 2.00
26
6210048520
ref: 26
ABSORBER ASSY,RR SHOCK
6210048520
€ 186.50
27
0831311108
ref: 27
NUT, LOWER LH
0831311108
€ 2.50
28
0831011108
ref: 28
NUT
0831011108
€ 2.50
29
0832211128
ref: 29
WASHER
0832211128
€ 2.00
30
0916010001
ref: 30
WASHER
0916010001
€ 2.00
31
6431146010
ref: 31
FROM 64311-46010-08C
TORQUE LINK,REAR
€ 8.00
32
0911108015
ref: 32
BOLT(8X22)
0911108015
€ 3.00
33
0911108013
ref: 33
BOLT(8X26.5)
0911108013
€ 3.00
34
0832121088
ref: 34
LOCK WASHER
0832121088
€ 2.00
35
0914008008
ref: 35
NUT
0914008008
€ 1.50
36
0832211088
ref: 36
WASHER
0832211088
€ 2.00
37
0411120158
ref: 37
PIN
0411120158
€ 1.50
