MAGNETO (E16)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

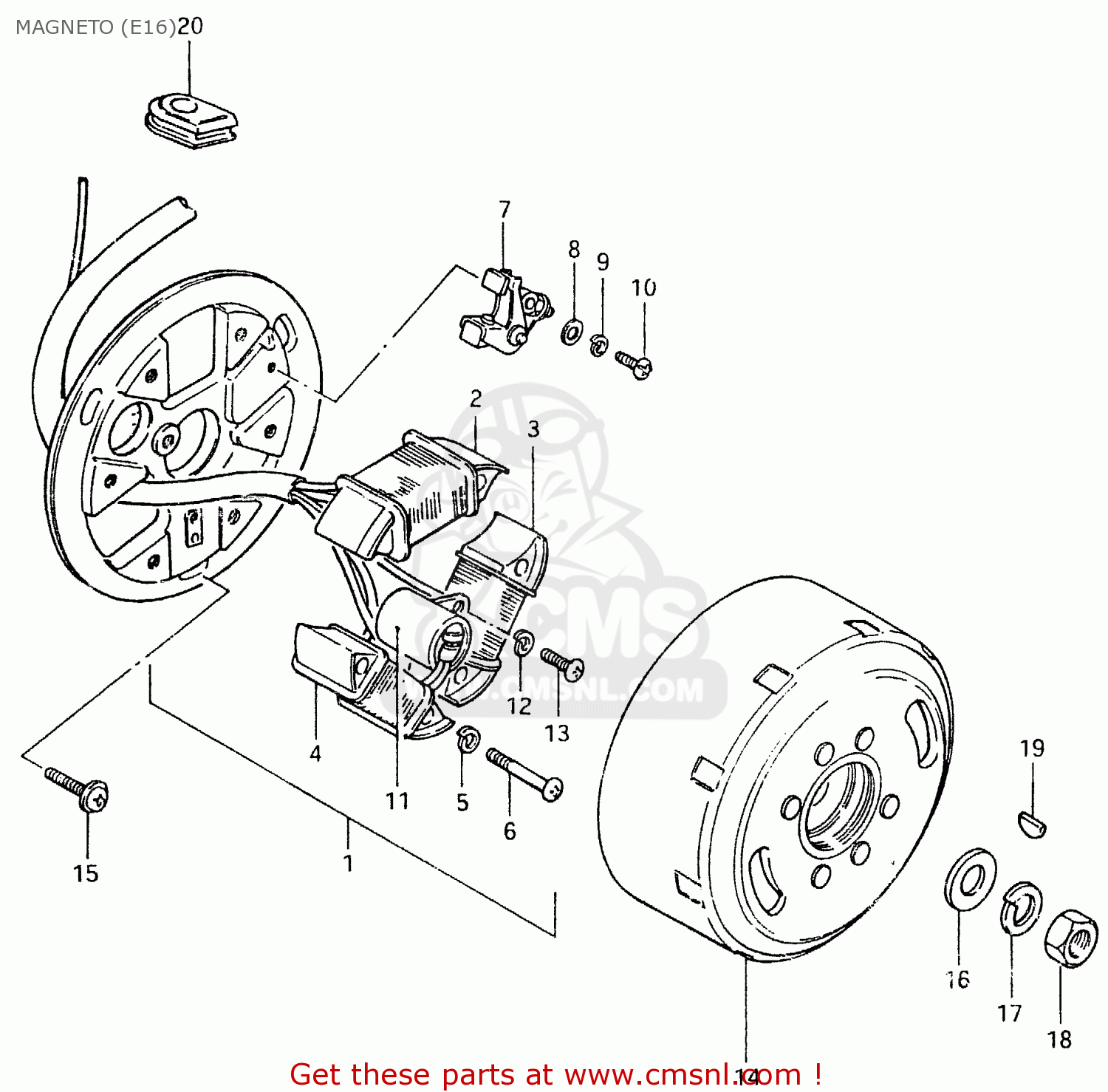

Magneto (e16) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

MAGNETO (E16) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
MAGNETO (E16) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
MAGNETO (E16) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
3210148640
ref: 1
STATOR ASSY
€ 0.00
2
3212039220
ref: 2
COIL, LIGHTING (A)
€ 0.00
3
3213039220
ref: 3
COIL, LIGHTING (B)
€ 0.00
4
3214048640
ref: 4
COIL, PRIMARY
€ 62.00
5
0832121048
ref: 5
LOCK WASHER
0832121048
€ 2.00
6
0211204308
ref: 6
SCREW (4X30)
€ 1.50
7
3224039020
ref: 7
POINT ASSY,CONTACT
€ 0.00
8
0832221048
ref: 8
WASHER
0832221048
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 2.00
10
0912504001
ref: 10
SCREW(4X10)
0912504001
€ 4.50
11
3234125690
ref: 11
CONDENSER
3234125690
€ 27.00
12
0832121048
ref: 12
LOCK WASHER
0832121048
€ 2.00
13
0211204068
ref: 13
SCREW 4X6
0211204068
€ 2.00
14
3210239220
ref: 14
ROTOR
€ 0.00
15
0913905011
ref: 15
SCREW(5X14)
0913905011
€ 3.00
16
0832221108
ref: 16
WASHER
0832221108
€ 2.50
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
0914010003
ref: 18
NUT (10MM)
0914010003
€ 3.50
19
0834131039
ref: 19
KEY
0834131039
€ 2.00
20
0930909007
ref: 20
GROMMET
0930909007
€ 2.50
