FUEL TANK (TS125ERT)

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

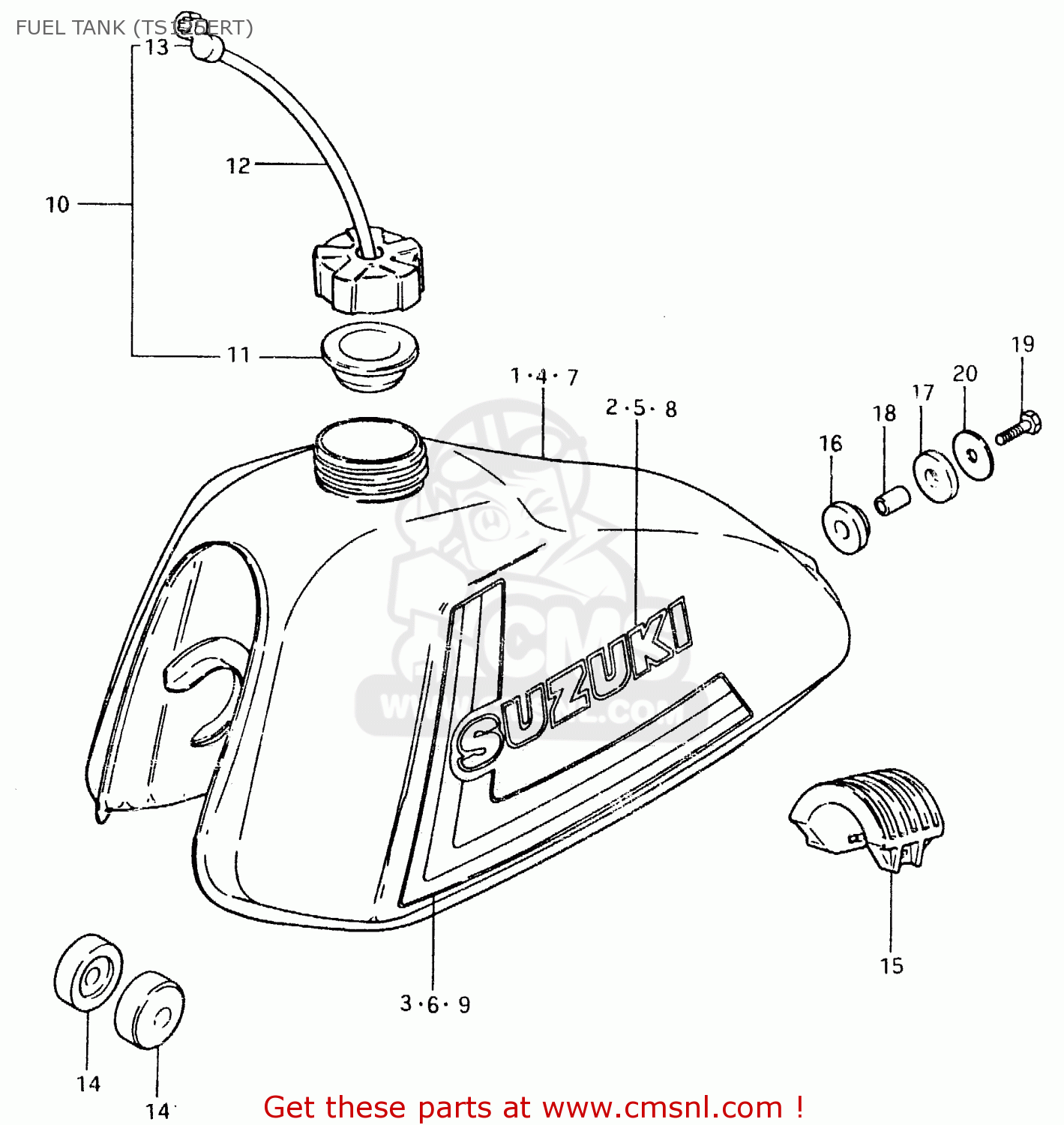

Fuel tank (ts125ert) diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

FUEL TANK (TS125ERT) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

FUEL TANK (TS125ERT) TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

1

441004851007P
ref: 1

TANK, FUEL (RED)

€ 281.50

2

6811129320064
ref: 2

EMBLEM

€ 10.50

3

681004884069F
ref: 3

TAPE SET

€ 0.00

4

441004851008Y
ref: 4

TANK, FUEL (BLUE)

€ 281.50

5

6811129320064
ref: 5

EMBLEM

€ 10.50

6

681004884069G
ref: 6

TAPE SET

€ 20.00

7

4410048510189
ref: 7

TANK, FUEL (WHITE)

€ 281.50

8

6811129320019
ref: 8

EMBLEM(BLACK)

€ 12.50

9

681004884067H
ref: 9

TAPE SET

€ 43.00

10

4420048511
ref: 10

CAP SET,FUEL TANK

€ 32.50

11

4424840400
ref: 11

GASKET,FUEL TANK CAP (NAS)

€ 4.50

12

0934305031
ref: 12

HOSE

€ 13.00

13

4448632101
ref: 13

CLAMP,FUEL TANK BREATHER HOSE

€ 3.50

14

0932910007
ref: 14

CUSHION

€ 3.00

15

4454148500
ref: 15

CUSHION,FUEL TANK

€ 4.50

16

0932012013
ref: 16

CUSHION

€ 3.00

17

0932012017
ref: 17

CUSHION

€ 2.50

18

0918008067
ref: 18

SPACER(8.5X12X19)

€ 2.50

19

0110708308
ref: 19

BOLT (8X30)

€ 2.50

20

0916008002
ref: 20

WASHER (8.5X29X1.6)

€ 2.00
