PILOT BOX

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

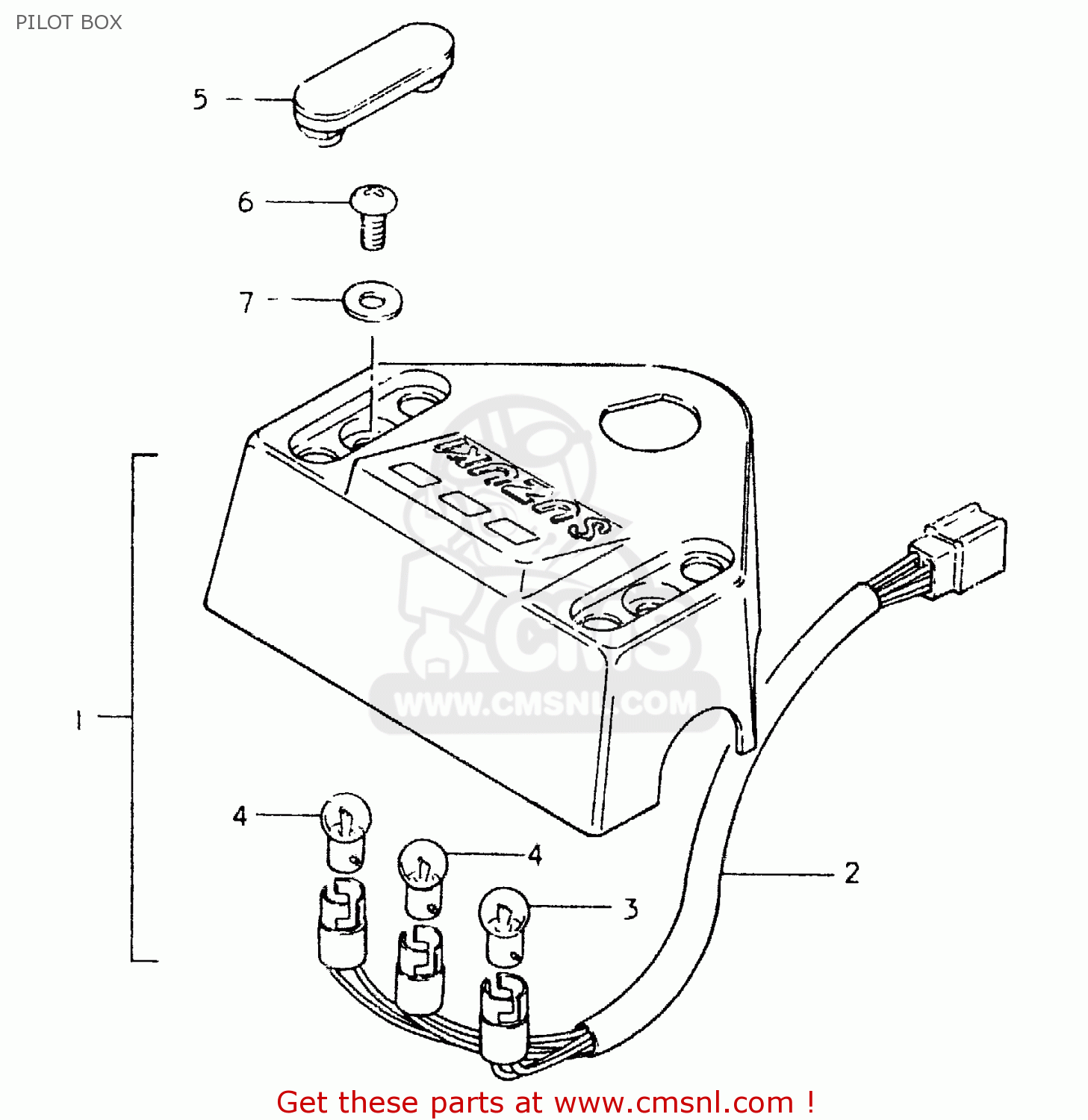

Pilot box diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

prices are in EUR

ref

part #

description

quantity

3638048500
ref: 1
MODEL T,TO 36380-485

CASE,PILOT BULB

€ 85.50

3638048501
ref: 1
MODEL X

LAMP ASSY,PILOT

€ 85.50

3632548500
ref: 2

SOCKET

€ 22.00

0947106001
ref: 3

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

0947106002
ref: 4

BULB(6V/3W)

€ 2.50

3638848500
ref: 5

CAP,PILOT BOX BOLT

€ 4.50

0211206128
ref: 6

SCREW 6X12

€ 2.00

0832221068
ref: 7

WASHER

€ 2.00
