RIGHT HANDLE SWITCH

TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

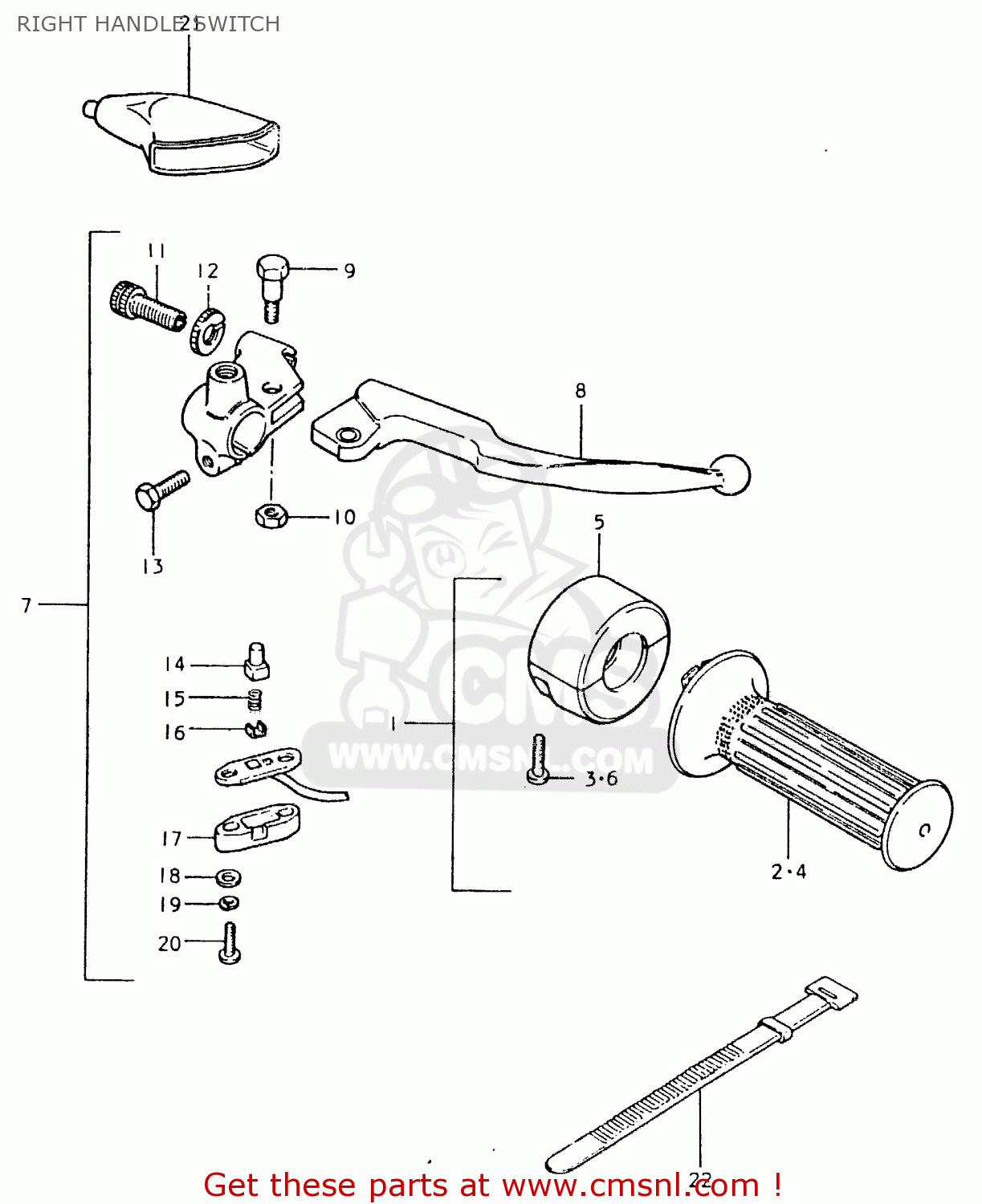

Right handle switch diagram TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)

RIGHT HANDLE SWITCH TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
RIGHT HANDLE SWITCH TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
RIGHT HANDLE SWITCH TS125ER 1980 (T) (1 2 E4 E9 E15 E17 E18 E21 E22 E24 E25 E26 E30)
prices are in EUR
ref
part #
description
quantity
1
5710048000
ref: 1
TS125ERT
GRIP ASSY, THROTTLE
€ 57.50
2
5711030501
ref: 2
TS125ERT
GRIP,THROTTLE
5711030501
€ 22.50
3
0211205258
ref: 3
TS125ERT
SCREW
0211205258
€ 2.00
4
5711030501
ref: 4
TS125ERX
GRIP,THROTTLE
5711030501
€ 22.50
5
5710030550
ref: 5
TS125ERX
CASE ASSY,THROTTLE
5710030550
€ 35.00
6
0211205258
ref: 6
TS125ERX
SCREW
0211205258
€ 2.00
7
5730048500
ref: 7
LEVER ASSY,BRAKE
5730048500
€ 52.00
8
5742026500
ref: 8
LEVER,BRAKE
5742026500
€ 29.00
9
5743111011
ref: 9
BOLT,LEVER
5743111011
€ 6.00
10
0831921068
ref: 10
NUT 6MM
0831921068
€ 2.00
11
5744126010
ref: 11
ADJUSTER,CABLE
5744126010
€ 4.00
12
5744211010
ref: 12
NUT,CABLE ADJUSTER
5744211010
€ 4.00
13
0110706208
ref: 13
BOLT
0110706208
€ 2.00
14
5746118600
ref: 14
TS125ERT:E2,E4,E15,E
HOLDER
€ 4.50
15
5746218600
ref: 15
TS125ERT:E2,E4,E15,E
SPRING
€ 4.50
16
5746318600
ref: 16
TS125ERT:E2,E4,E15,E
PLATE
5746318600
€ 4.50
17
5748133010
ref: 17
TS125ERT:E2,E4,E15,E
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
18
0832221038
ref: 18
TS125ERT:E2,E4,E15,E
WASHER
0832221038
€ 2.00
19
0832121038
ref: 19
TS125ERT:E2,E4,E15,E
LOCK WASHER
€ 1.50
20
0912503105
ref: 20
TS125ERT:E2,E4,E15,E
SCREW
0912503105
€ 2.50
21
5734140001
ref: 21
COVER,CLUTCH LEVER
5734140001
€ 7.50
22
0940712402
ref: 22
CLAMP(L:120)
0940712402
€ 3.00
